Take out the M10*20 Hexagon socket head screws, Flat washer 10, Spring washer 10 from the
accessory box, and fasten tightly according to Picture 6.

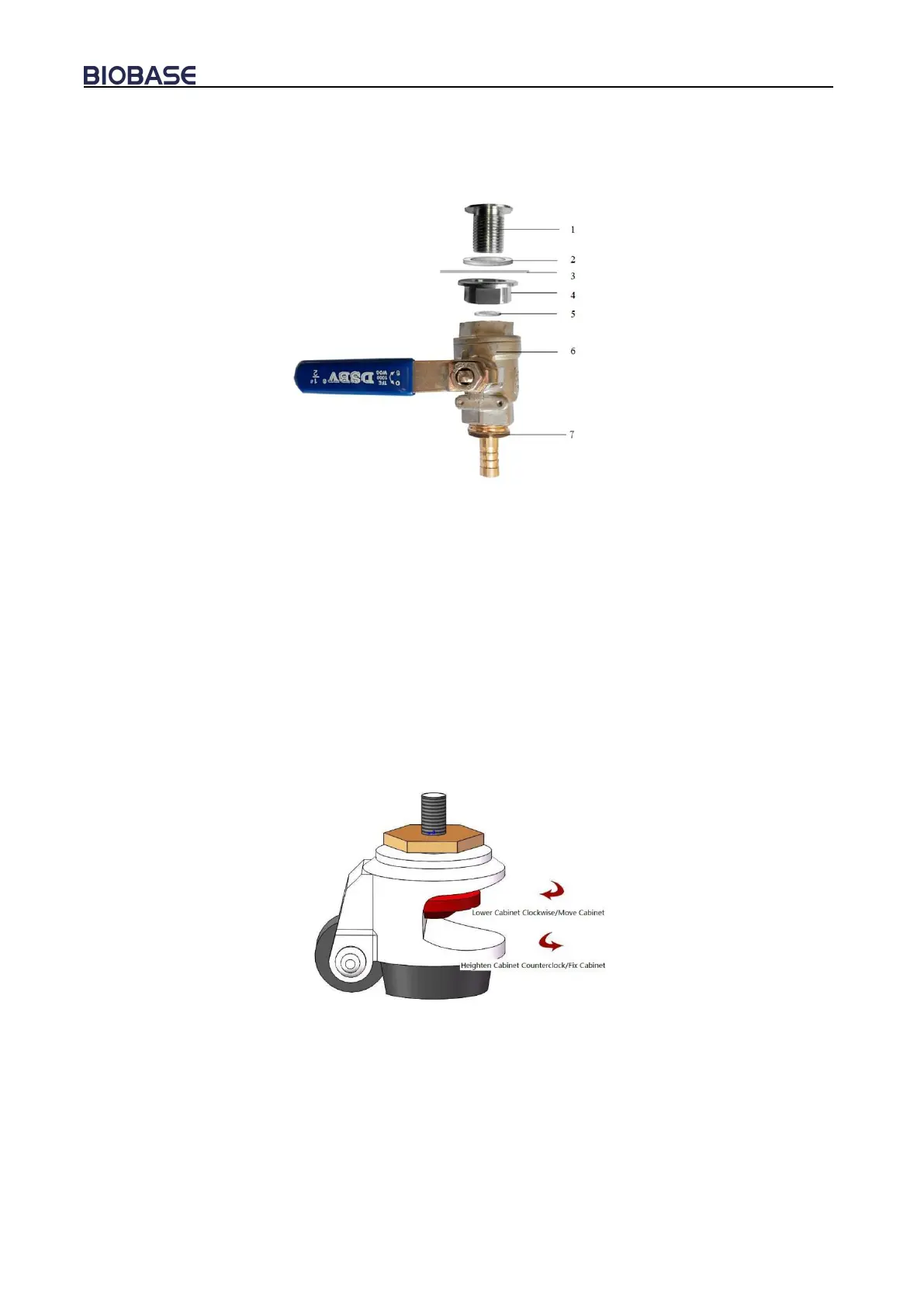

c. Installation of Drain valve
1. Drain valve connector
2. Shim
3. Safety cabinet bottom installation holes
4. Ball coupling fastening nut
5. Rubber gasket
6. Drain valve
7. Copper joints
d.Adjustment of Footmaster Caster
Picture 8
Clockwise rotate caster’s red part to low down the base feet and the height of the cabinet. Low
down all four casters can move the cabinet position. Counterclockwise rotate caster’s red part can
rise the base leg and height of cabinet. Raise all four casters at same time can fix the cabinet. Adjust
the four Foot -masters makes the cabinet stable.
e. Installation of water tap, gas tap
