Description of the Beam Delivery Systems
This section explains how the LS or laser light travels from its
origin to the environment for each Treatment Head.
LS-Series Treatment Heads
(Models: LS-R 250, LS-I 500, LS-R 750, LS-I 1500, SLD-R500,
SLD-I1000 and DUO
+
, DUO)
Light radiates from the LS-Series directly into the environment
(shown in figure below).

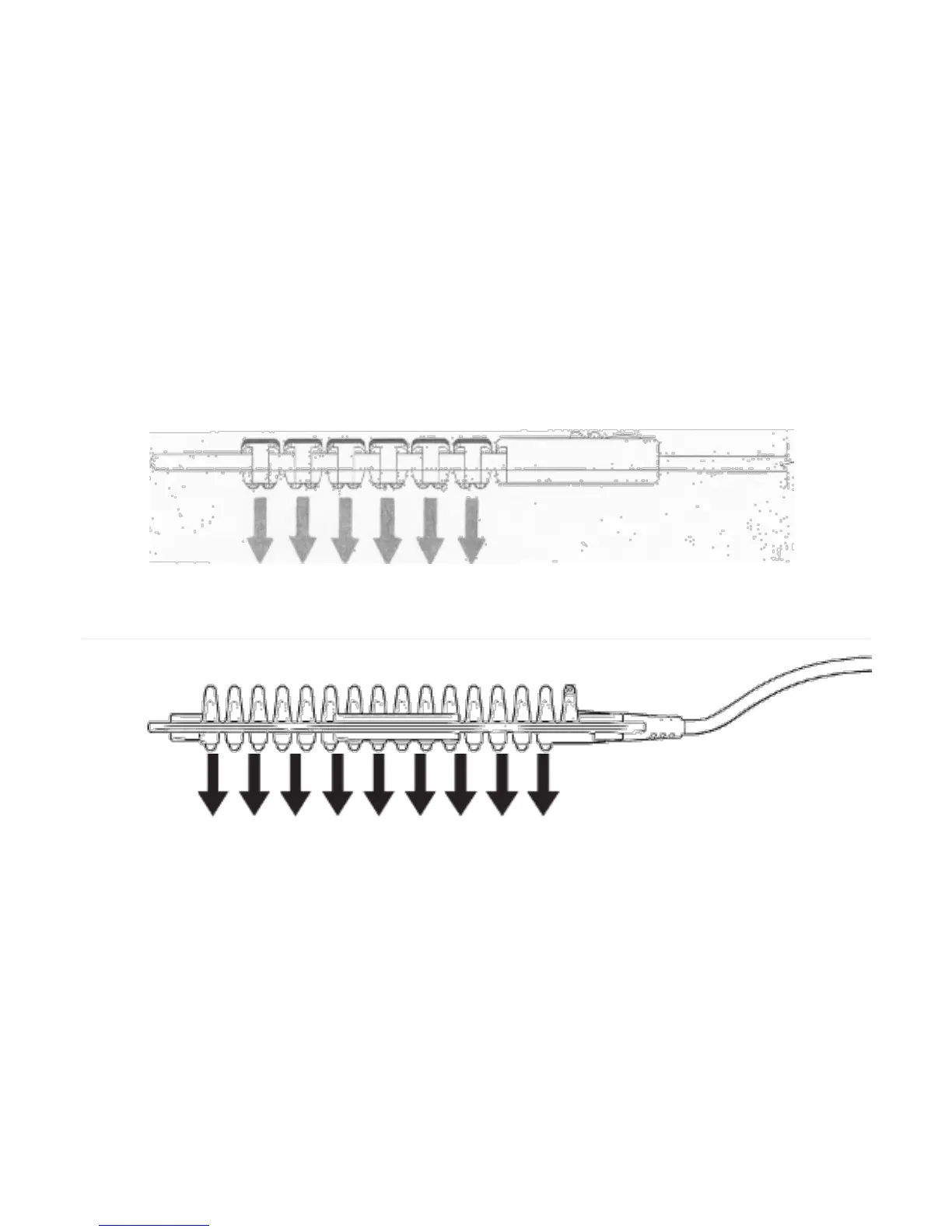

Figure 19 LS-Series Treatment Head Light Radiation
Figure 19a SLD-Series Treatment Head Light Radiation
