Chapter 2: Hardware installaon | 11
A520MH 3.0

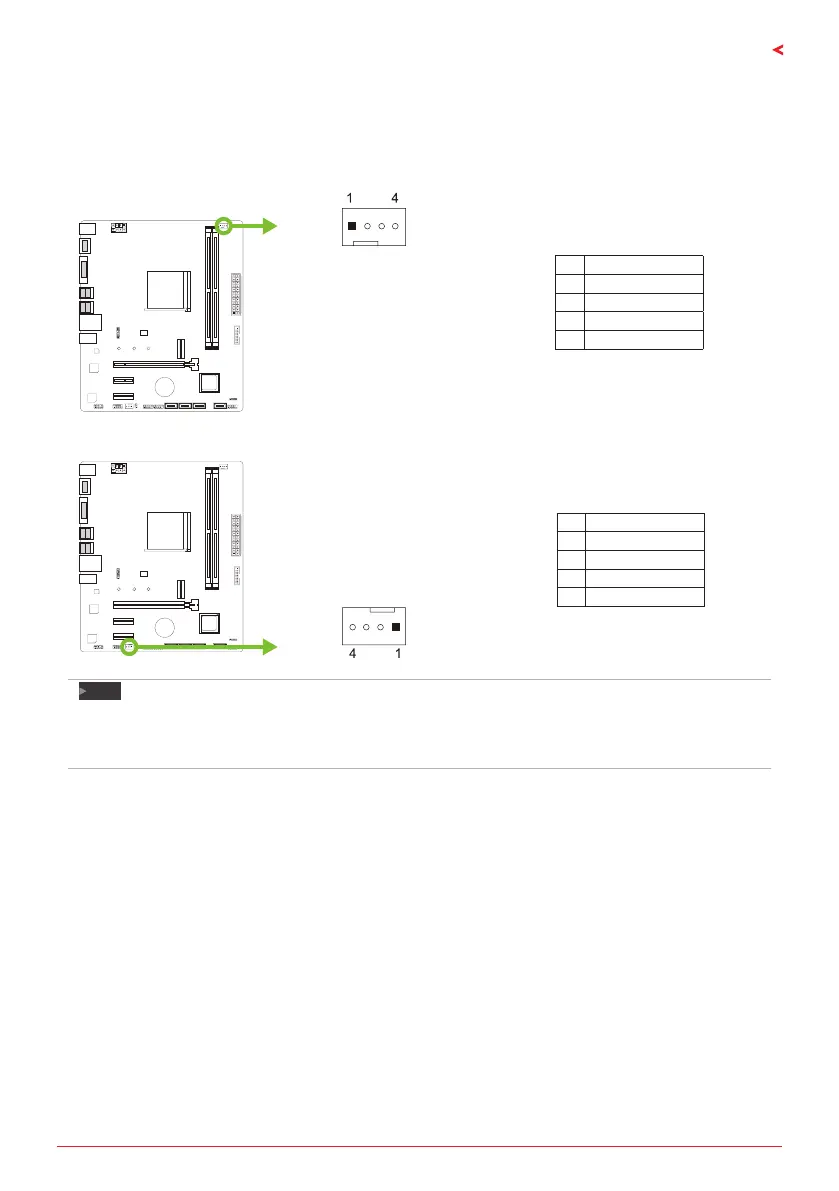

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
Note
» 
»
CPU_FAN, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecng with wires onto 
connectors, please note that the red wire is the posive and should be connected to pin#2, and the 
black wire is Ground and should be connected to pin#1(GND).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar A520MH 3.0 and is the answer not in the manual?

Biostar A520MH 3.0 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetAMD A520
SocketAM4
Memory Slots2
Max Memory64GB
PCIe Slots1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Memory SupportDDR4 3200/ 2933/ 2667/ 2400/ 2133 MHz
Storage Interface4 x SATA III
USB Ports6 x USB 2.0
AudioRealtek ALC887
LANRealtek RTL8111H
Video OutputsHDMI, VGA
