14 | Chapter 2: Hardware installaon
2.5 Expansion Slots

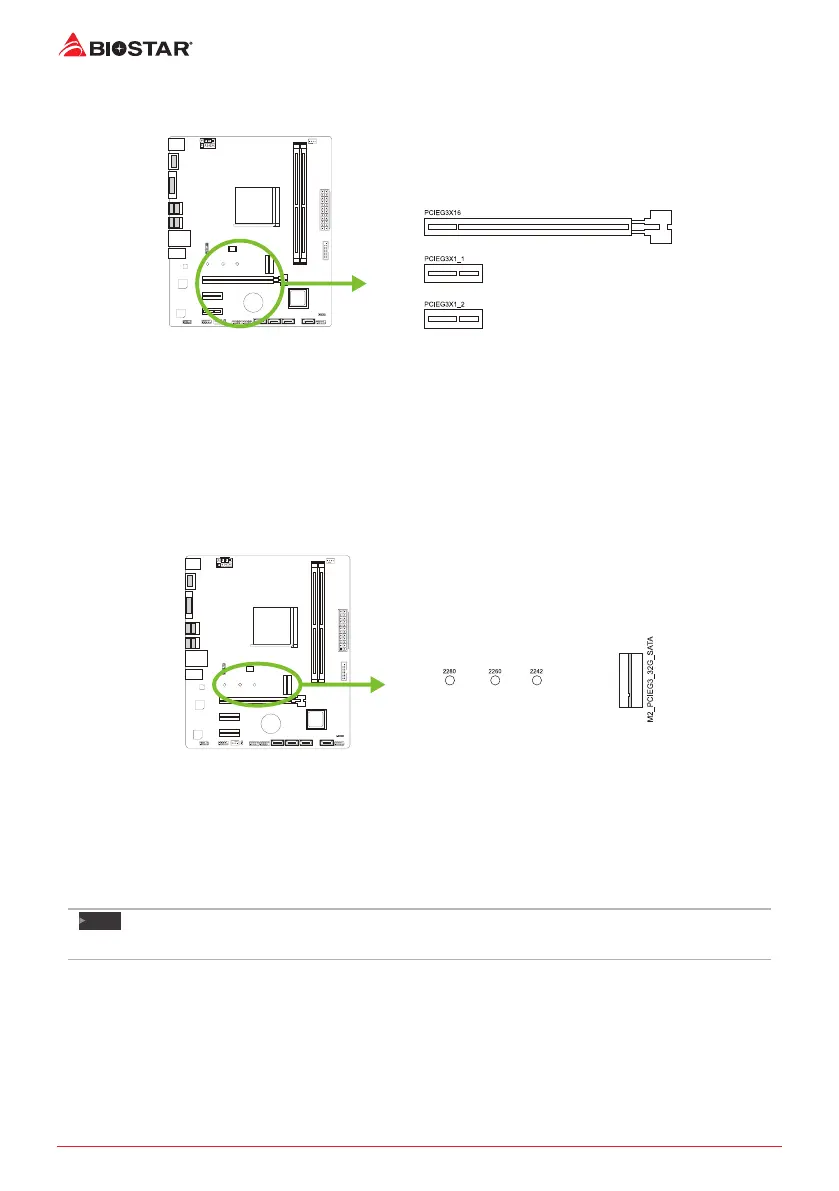

PCIEG3X16: PCI-Express Gen3 x16 Slot
•  PCI-Express 3.0 compliant. The maximum bandwidth of the PCIe slot is 32GB/s.
•  Supports PCIe 3.0 x16 mode with AMD® Ryzen™ processors.
•  Supports PCIe 3.0 x16 mode AMD® Ryzen™ with Radeon Vega Graphics processors.
PCIEG3X1_1/ PCIEG3X1_2: PCI-Express Gen3 x1 Slot
•  PCI-Express 3.0 compliant.
•  Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total.
M2_PCIEG3_32G_SATA: M.2 (M Key) Socket
•  The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
•  Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4
(32Gb/s) - NVMe & AHCI SSD.
Note
» 
»
According to dierent CPUs will have dierent speeds.
