16 | Chapter 2: Hardware installaon
2.6 Jumper & Switch Setting

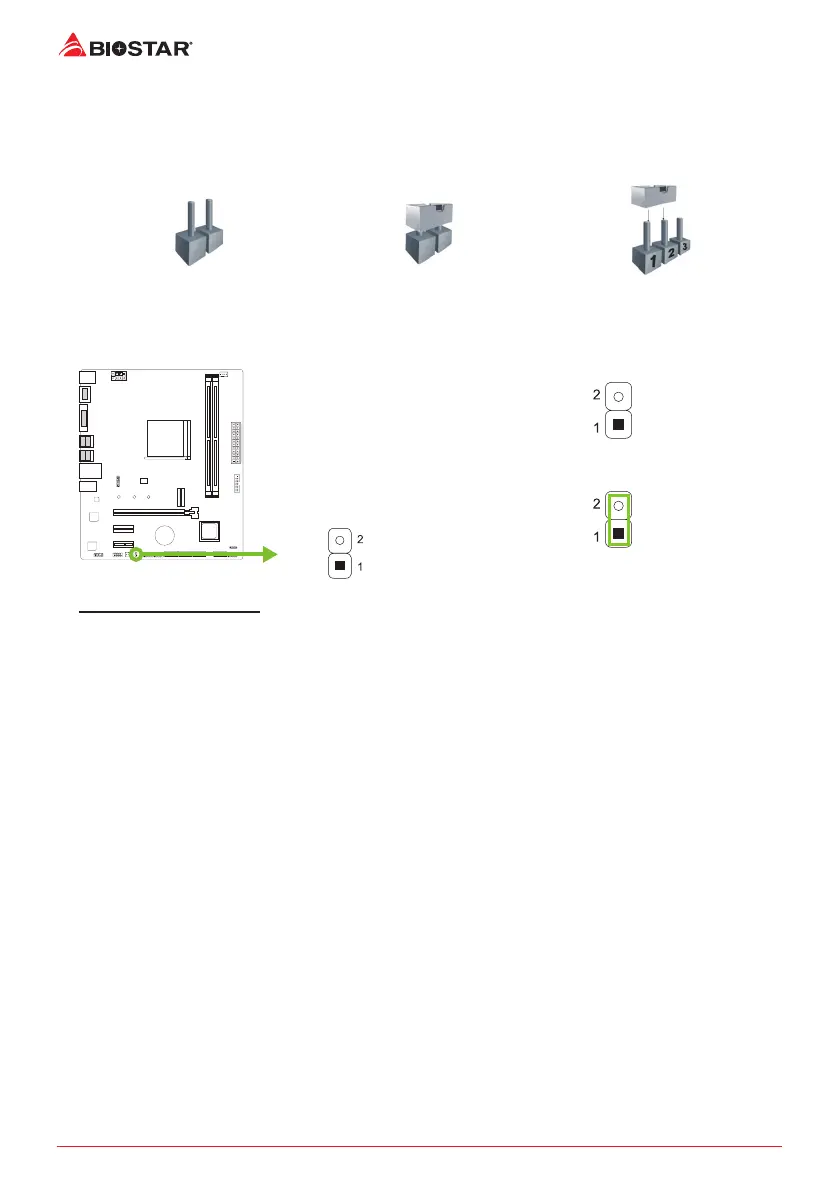

The illustraon shows how to set up jumpers. When the jumper cap is placed on pins, the
jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin 1-2 closed
JCMOS1: Clear CMOS Jumper
The jumper allows users to restore the BIOS safe seng and the CMOS data. Please carefully
follow the procedures to avoid damaging the motherboard.
Pin 1-2 Open:
Normal Operaon (default).
Pin 1-2 Short:
Clear CMOS data.
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 1-2 short”, you can use a metal object like a screwdriver to touch the
two pins.
3. Wait for ve seconds.
4. Aer clearing the CMOS values, be sure the jumper is “Pin 1-2 open”.
5. Power on the AC.
6. Load Opmal Defaults and save sengs in CMOS.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar A520MH 3.0 and is the answer not in the manual?

Biostar A520MH 3.0 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetAMD A520
SocketAM4
Memory Slots2
Max Memory64GB
PCIe Slots1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Memory SupportDDR4 3200/ 2933/ 2667/ 2400/ 2133 MHz
Storage Interface4 x SATA III
USB Ports6 x USB 2.0
AudioRealtek ALC887
LANRealtek RTL8111H
Video OutputsHDMI, VGA
