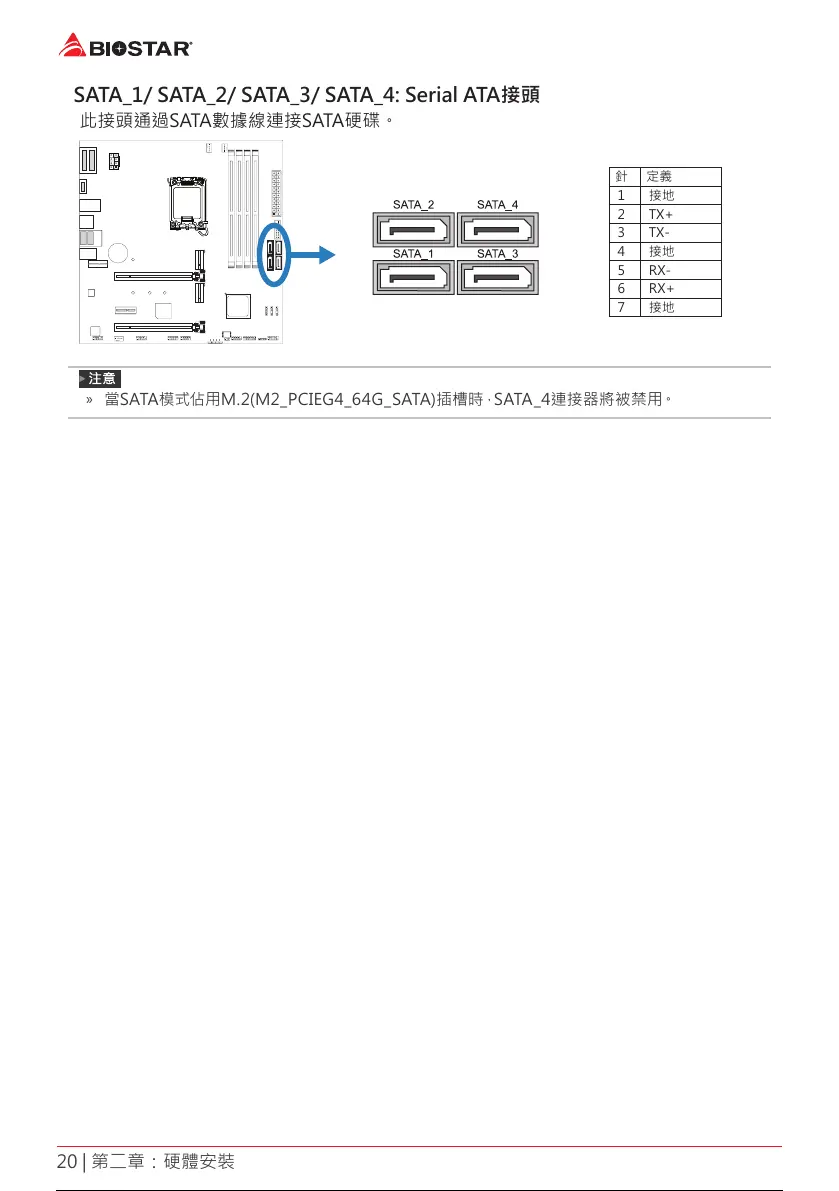

20 | 第二章：硬體安裝
SATA_1/ SATA_2/ SATA_3/ SATA_4: Serial ATA接頭
此接頭通過SATA數據線連接SATA硬碟。
針 定義
1 接地
2 TX+
3 TX-
4 接地
5 RX-
6 RX+
7 接地
»
當SATA模式佔用M.2(M2_PCIEG4_64G_SATA)插槽時，SATA_4連接器將被禁用。
