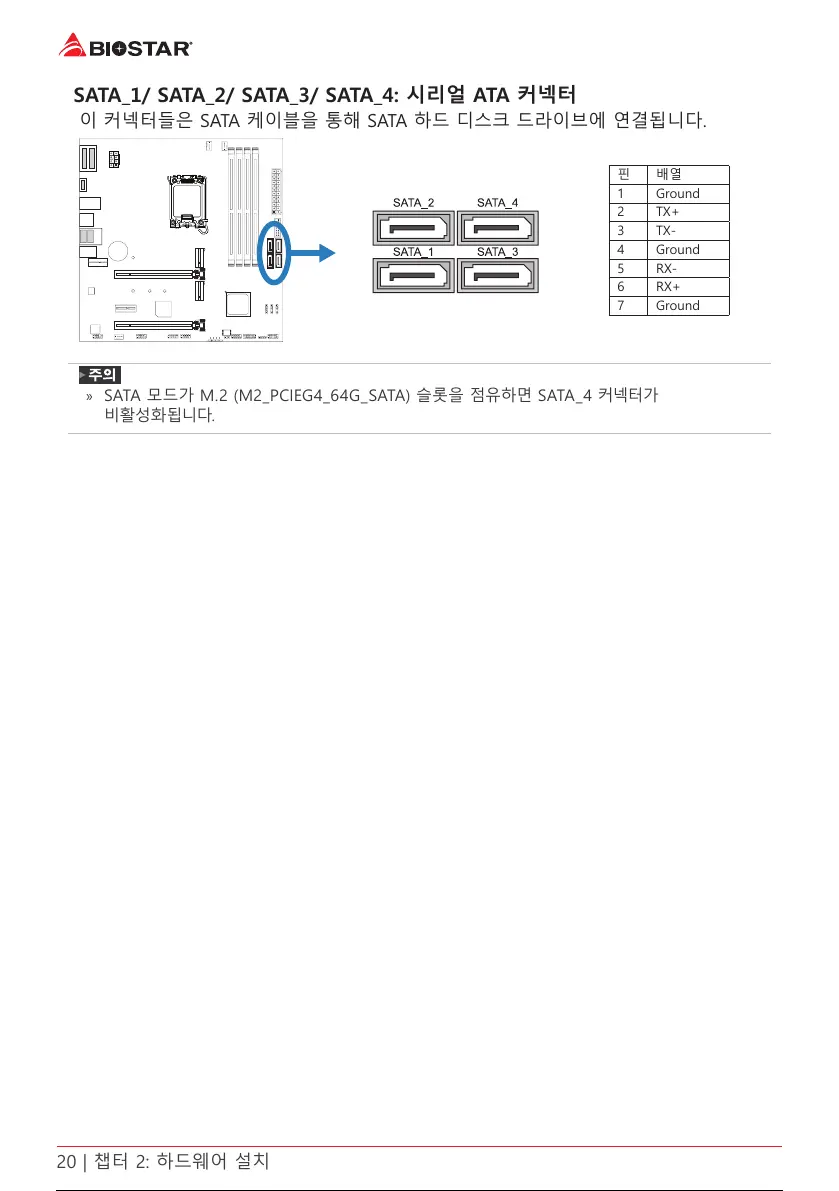

20 | 챕터 2: 하드웨어 설치
SATA_1/ SATA_2/ SATA_3/ SATA_4: 시리얼 ATA 커넥터
이 커넥터들은 SATA 케이블을 통해 SATA 하드 디스크 드라이브에 연결됩니다.
핀 배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
»
SATA 모드가 M.2 (M2_PCIEG4_64G_SATA) 슬롯을 점유하면 SATA_4 커넥터가
비활성화됩니다.
94 / 147
