User’s Manual
14

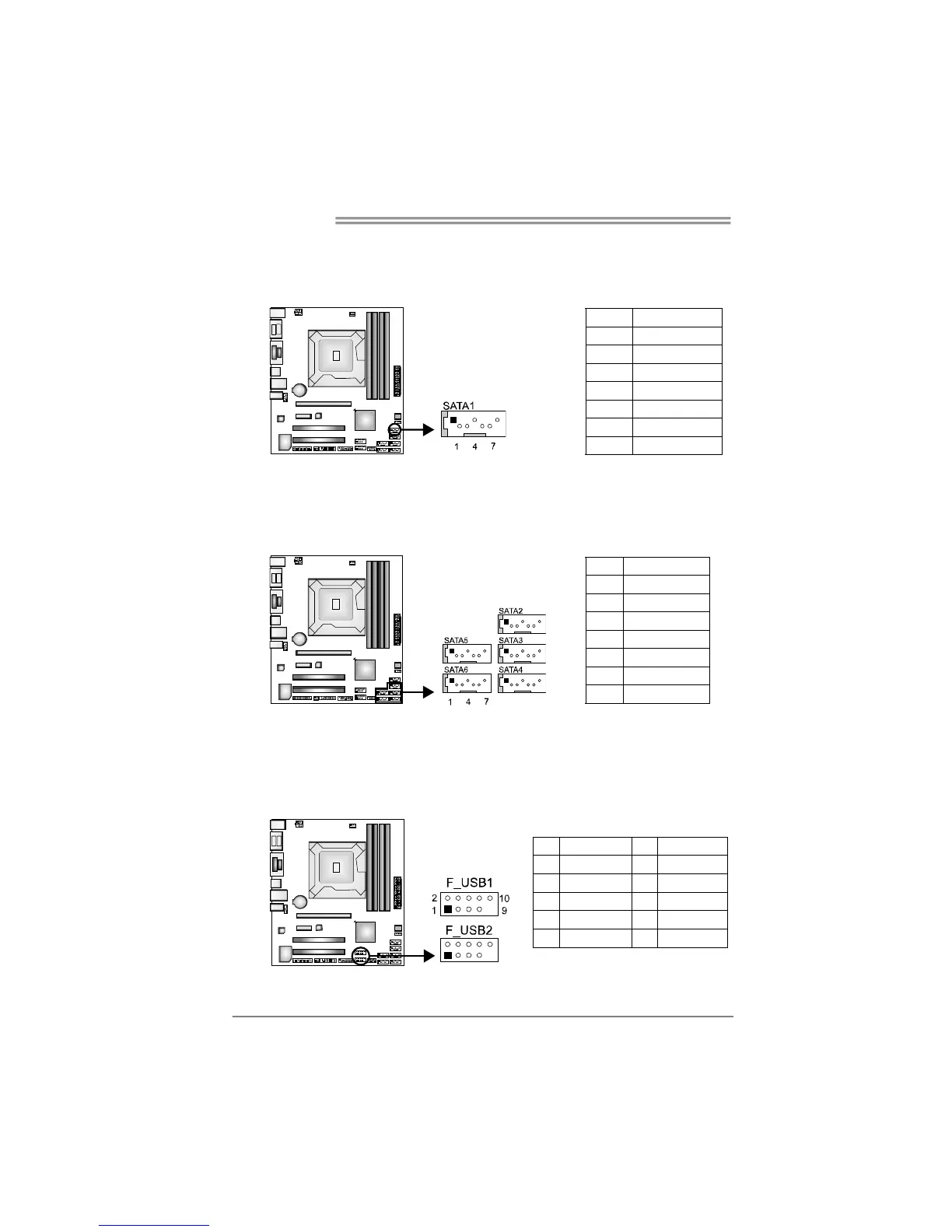

SATA1: Serial ATA3 Connector
The connector connects to Serial ATA 6.0 Gb/s hard disk drive and optical disc
drive.
Pin Assignment
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
SATA2/3/4/5/6: Serial ATA2 Connectors
The connectors connect to Serial ATA 3.0 Gb/s hard disk drive and optical disc
drive.
Pin Assignment
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
F_USB1/2: USB 2.0 Connectors
The mainboard provides 2 front USB pin connector, allowing up to 4 additional
USB 2.0 ports up to maximum throughput of 480 Mbps. Connect the USB cable
into the pin header for using high-speed USB interface peripherals.
Pin Assignment Pin Assignment
1 +5V (fused) 2 +5V (fused)
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
9 Key 10 NC
