Biostar G41D3C Setup Manual

G41D3C
15

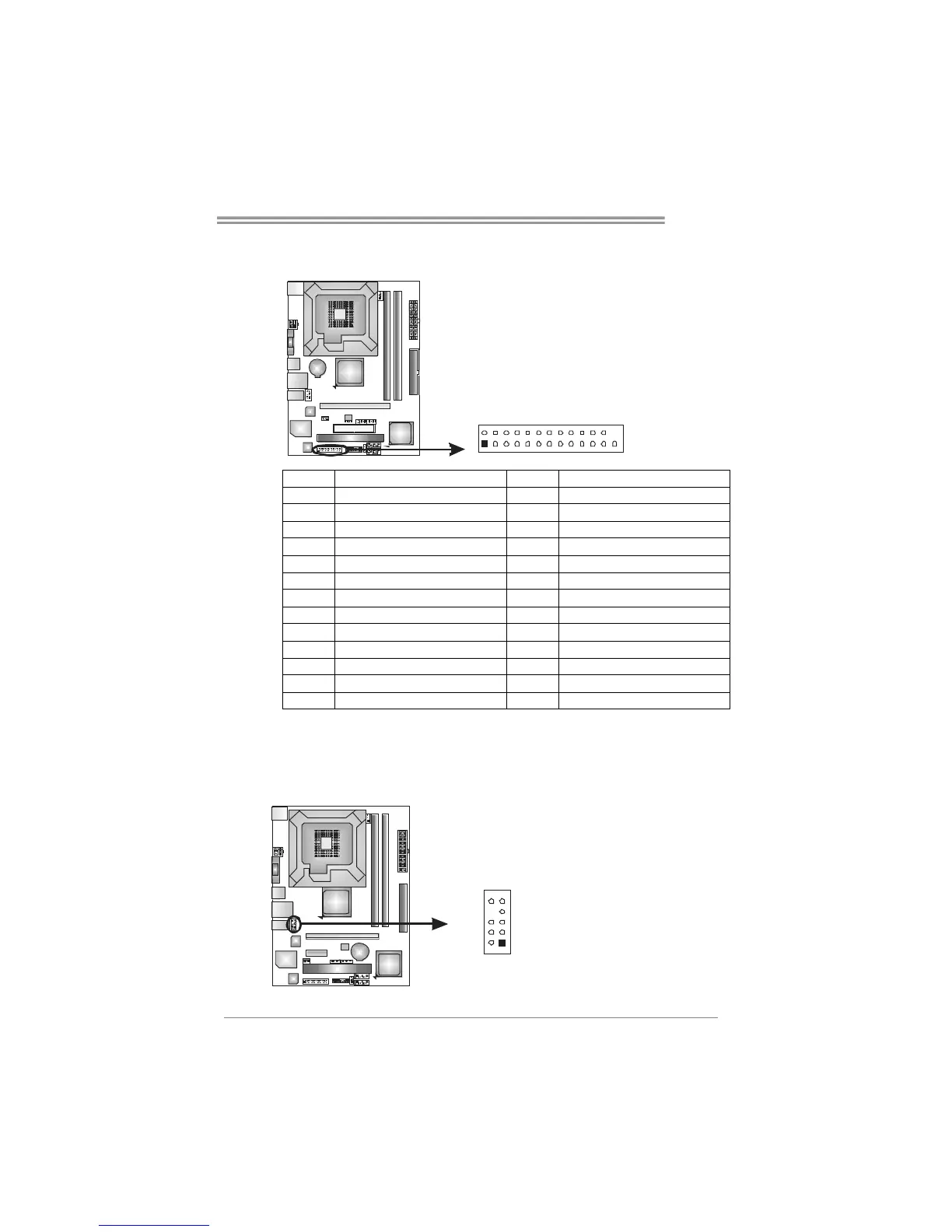

J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
2
25
26
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector, not AC’97.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
1
9
2
10

Biostar G41D3C Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Memory Type	DDR3
Memory Slots	2
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Storage Interface	4 x SATA 3Gb/s
Video Outputs	1 x VGA
Audio	Realtek ALC662 6-Channel HD Audio
IDE Ports	1 x IDE
USB Ports	8 x USB 2.0
LAN	Realtek RTL8111E
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
