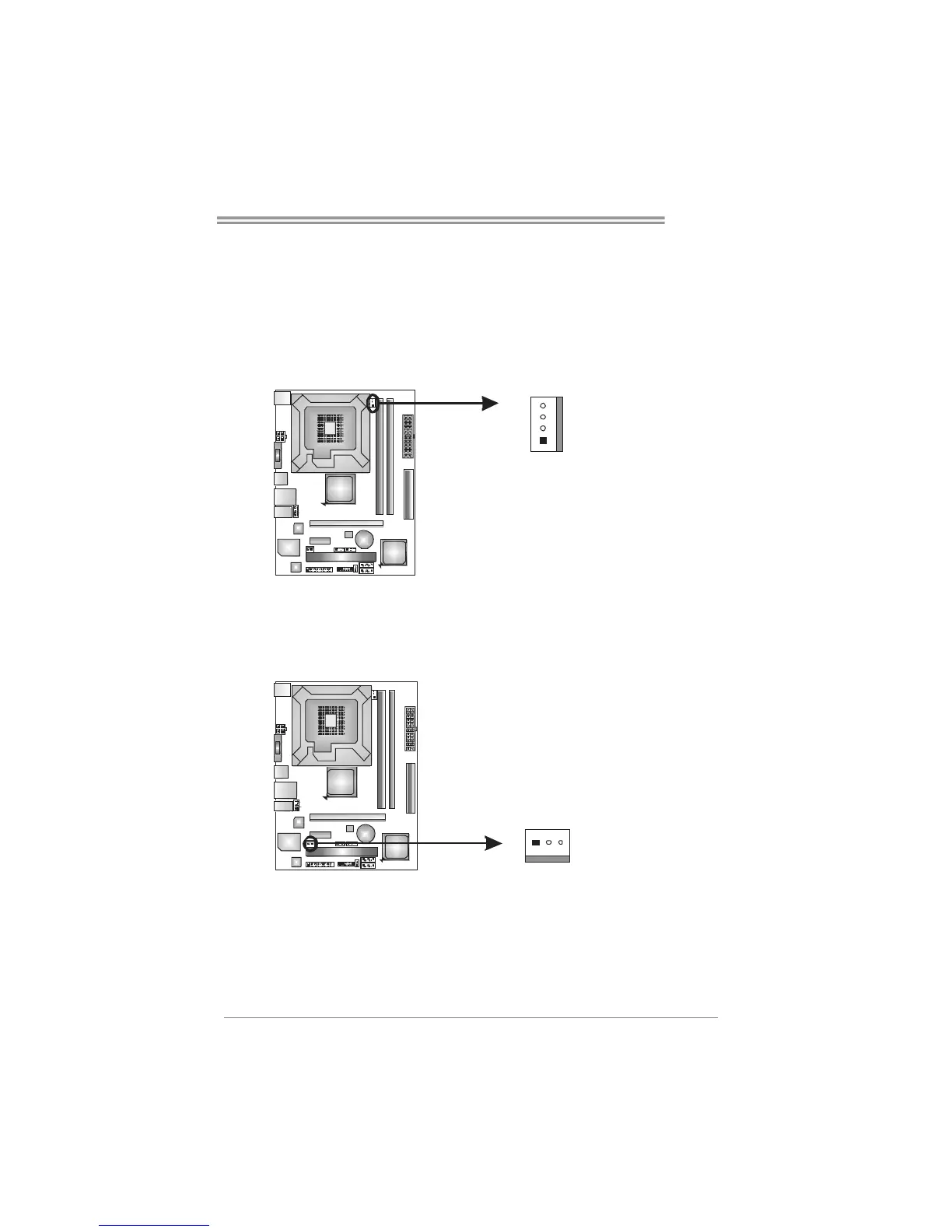

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
CPU_FAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 Power
3 FAN RPM rate sense
1
4
4 Smart Fan Control
SYS_FAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
3 FAN RPM rate sense
Note:
The CPU_FAN1 support 4-pin head connector and SYS_FAN1 support 3-pin head
connector. When connecting with wires onto connectors, please note that the red wire is
the positive and should be connected to pin#2, and the black wire is Ground and should
be connected to GND.

Biostar G41D3C Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Memory Type	DDR3
Memory Slots	2
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Storage Interface	4 x SATA 3Gb/s
Video Outputs	1 x VGA
Audio	Realtek ALC662 6-Channel HD Audio
IDE Ports	1 x IDE
USB Ports	8 x USB 2.0
LAN	Realtek RTL8111E
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
