Motherboard Manual
4

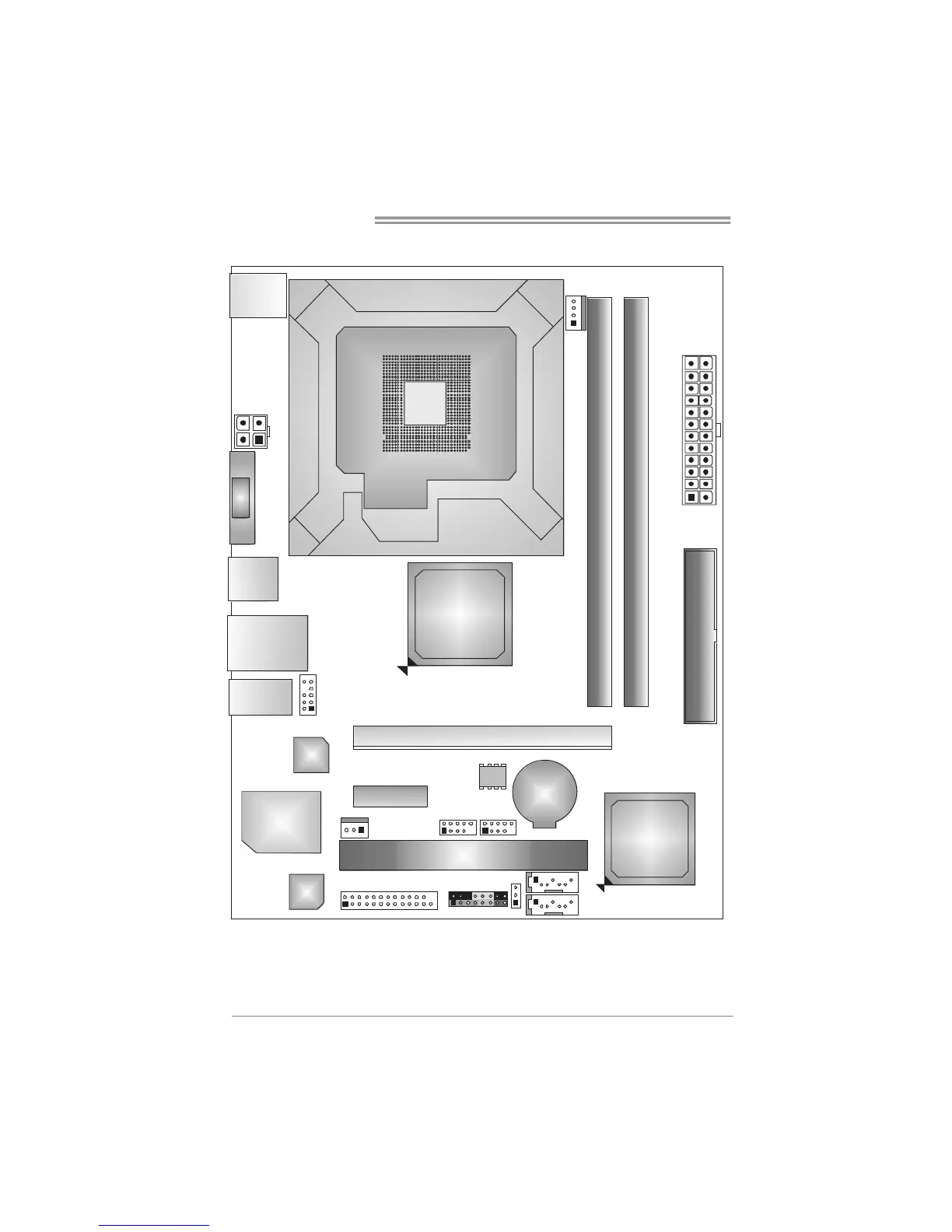

1.5 MOTHERBOARD LAYOUT
KBMS1
ATX PW R2
VGA1
USB1
RJ 45U SB 1
AUDIO1
LAN
Super
I/O
Codec
F_AUDIO1
PEX16_1
J_PRINT1
PANEL1
JCMOS1
PCI1
SATA1
SATA2
Intel
ICH7
BIOS
BAT1
Intel
G41
IDE1
ATX PW R1
F_USB2 F_USB1
SYS_FAN1
DDR3_B1
DDR3_A1
LGA775
CPU1
CPU_FAN1
PEX1_1
Note: ■ represents the 1
st
pin.
