Biostar G41D3C Setup Manual

Motherboard Manual
10
2.4 CONNECTORS AND SLOTS

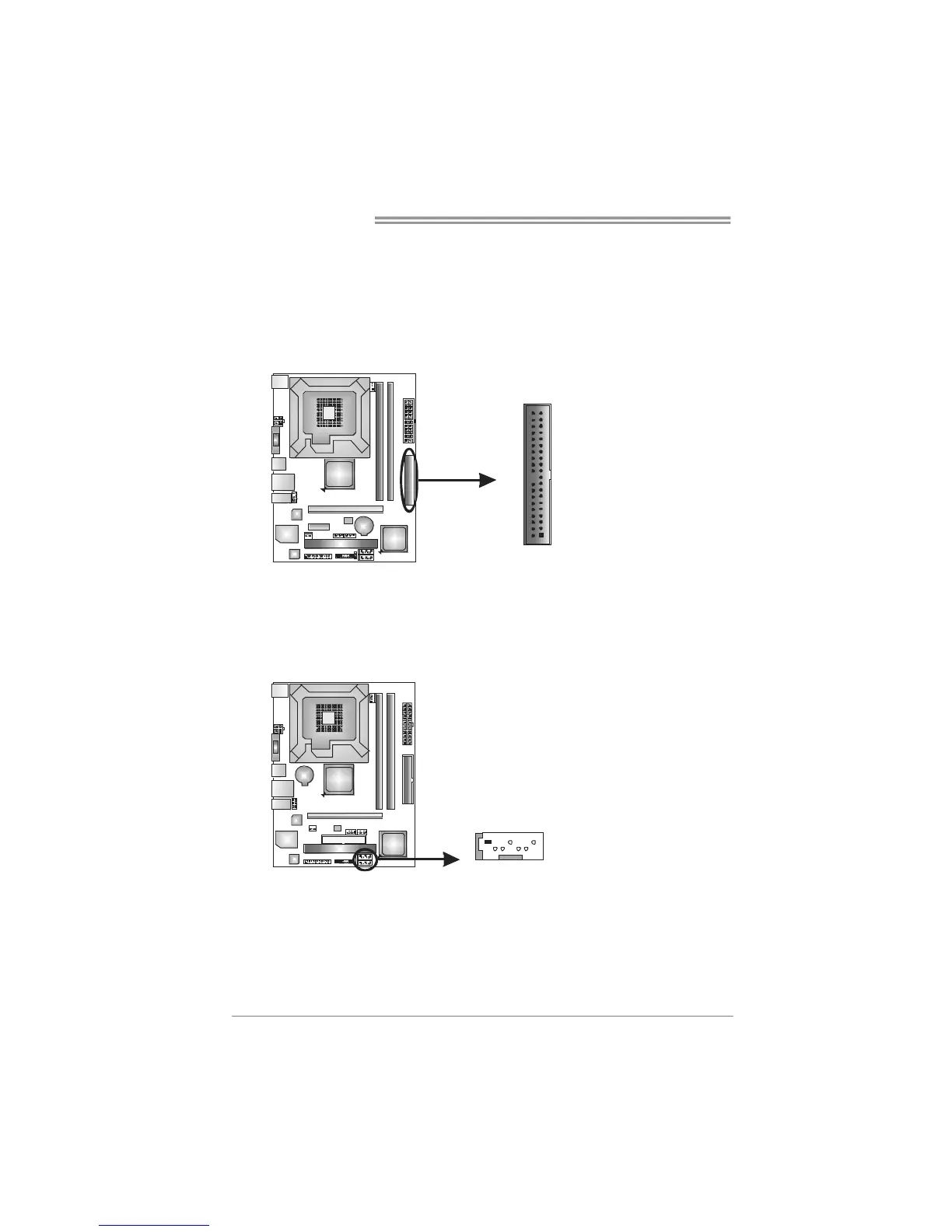

IDE1: IDE/ATAPI Connector
The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
Mode 0~4, Bus Master, and Ultra DMA 33/66/100 functionality.
The IDE connector can connect a master and a slave drive, so you can connect
up to two drives.
1
39
2
40
SATA1/SATA2: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2channels SATA interface, it
satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
741
SATA1
SATA2
7 Ground

Biostar G41D3C Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Memory Type	DDR3
Memory Slots	2
Maximum Memory	8 GB
Integrated Graphics	Intel GMA X4500
Storage Interface	4 x SATA 3Gb/s
Video Outputs	1 x VGA
Audio	Realtek ALC662 6-Channel HD Audio
IDE Ports	1 x IDE
USB Ports	8 x USB 2.0
LAN	Realtek RTL8111E
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
