Hi-Fi B85N 3D/ Hi-Fi H81N 3D

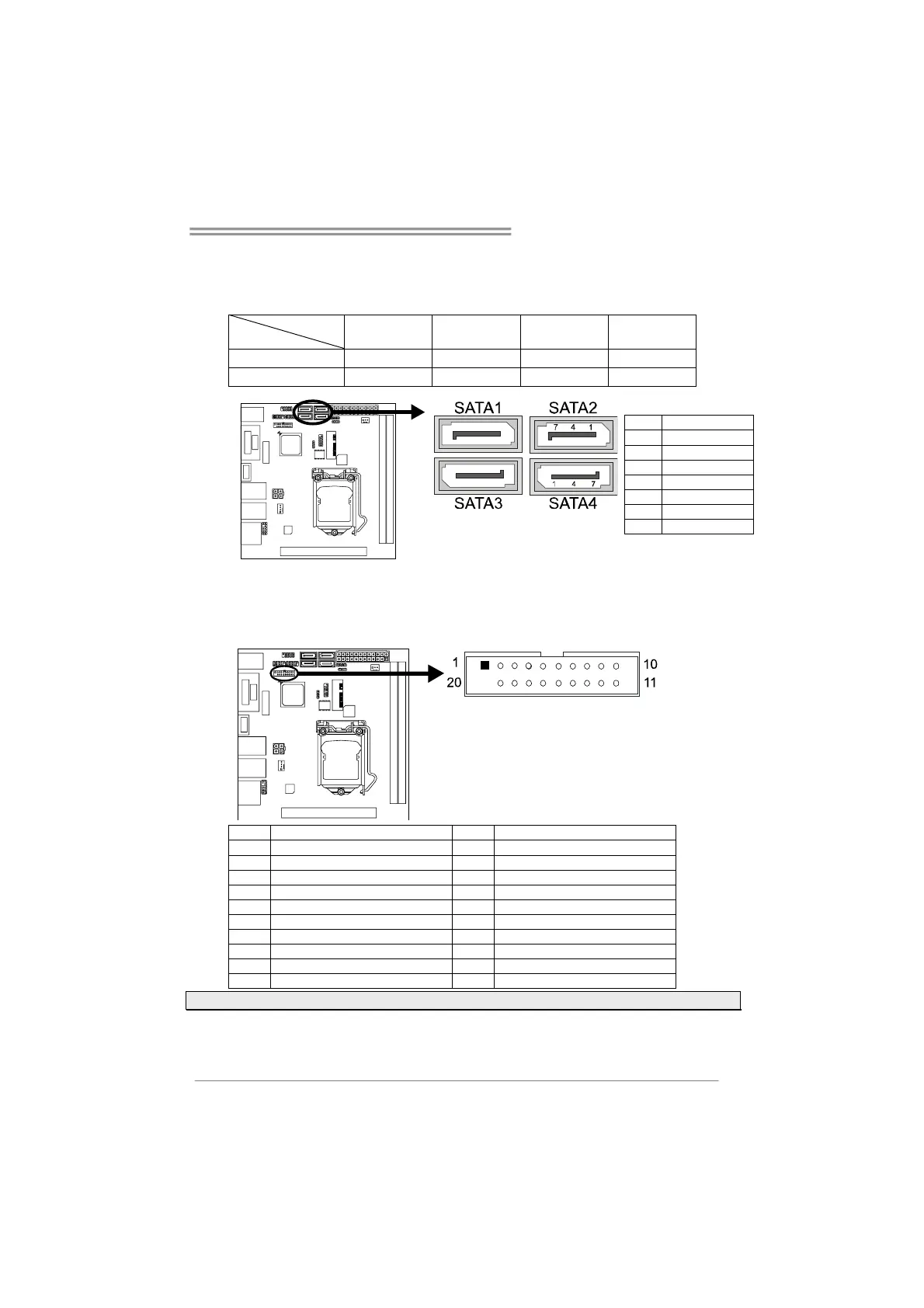

SATA1-4: Serial ATA Connectors

These connectors connect to SATA hard disk drives via SATA cables. Please refer

below table for SATA data transfer rates.

Connectors

Models

SATA1 SATA2 SATA3 SATA4

Hi-Fi B85N 3D 6Gb/s 3Gb/s 6Gb/s 3Gb/s

Hi-Fi H81N 3D 6Gb/s 3Gb/s NA 3Gb/s

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and

also can be connected with a wide range of external peripherals.

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

Note: This header is only for Hi-Fi B85N 3D.
