P4M900-M7 SE/P4M890-M7 TE
17

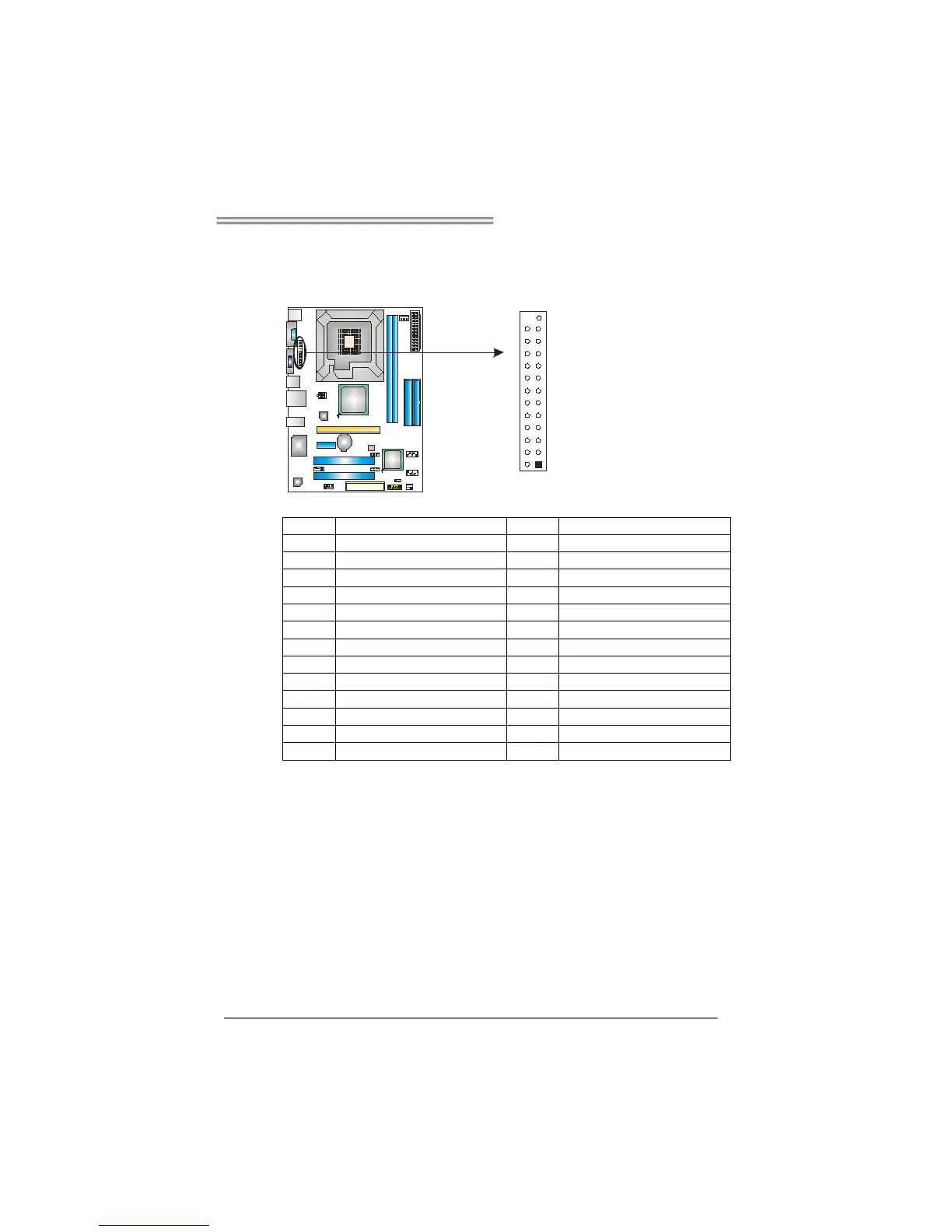

JPRNT1: Printer Port Connector
This header allows you to connector printer on the PC.
1
25
2
Pin
Assignment
Pin
Assignment
1
-Strobe
14
Ground
2
-ALF
15
Data 6
3
Data 0
16
Ground
4
-Error
17
Data 7
5
Data 1
18
Ground
6
-Init
19
-ACK
7
Data 2
20
Ground
8
-Scltin
21
Busy
9
Data 3
22
Ground
10
Ground
23
PE
11
Data 4
24
Ground
12
Ground
25
SCLT
13
Data 5
26
Key
