Biostar P4M890-M7 TE Setup Manual

P4M900-M7 SE/P4M890-M7 TE
5
P4M900-M7 SE P4M890-M7 TE
Slots
PCI Express x 16 slot x1 PCI Express x 16 slot x1
PCI Express x 1 slot x1 PCI Express x 1 slot x1
PCI slot x2 PCI slot x2
On Board
Connector
Floppy connector x1 Floppy connector x1
Printer Port Connector x1 Printer Port Connector x1
IDE Connector x2 IDE Connector x2
SATA Connector x2 SATA Connector x2
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CD-in Connector x1 CD-in Connector x1
CPU Fan header x1 CPU Fan header x1
System Fan header x1 System Fan header x1
Clear CMOS header x1 Clear CMOS header x1
USB connector x2 USB connector x2
Power Connector (24pin) x1 Power Connector (24pin) x1
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
VGA Port x1
LAN port x1
USB Port x4
Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
Serial Port x1
VGA Port x1
LAN port x1
USB Port x4
Audio Jack x3
Board Size 190 mm (W) x 244 mm (L) 190 mm (W) x 244 mm (L)
Special
Feature
RAID 0 / 1 support RAID 0 / 1 support
OS
Support
Windows 2000 / XP / VISTA
Biostar Reserves the right to add or remove
support for any OS with or without notice.
Windows 2000 / XP
Biostar Reserves the right to add or remove
support for any OS with or without notice.

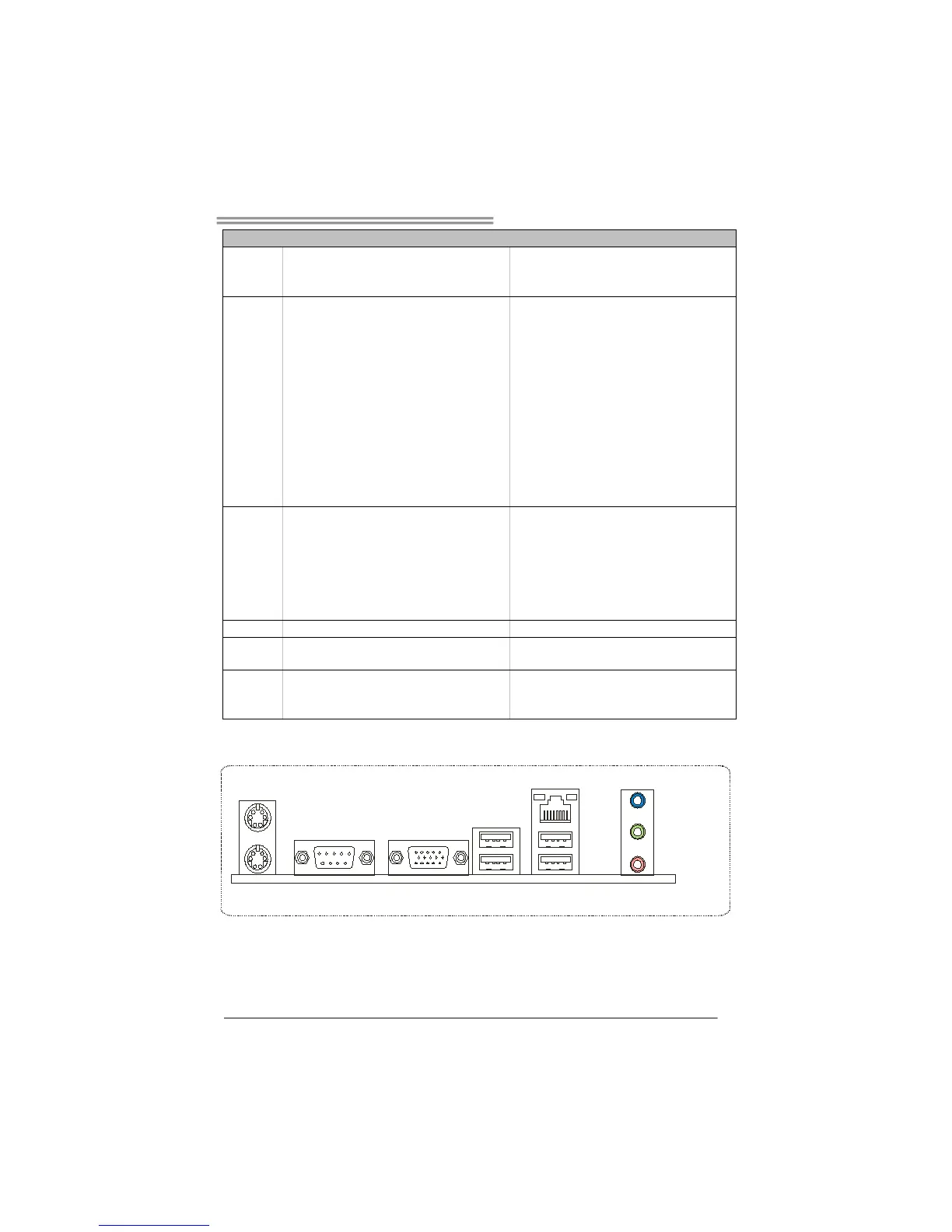

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USBX2USBX2
LAN
COM1
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
Since the audio chip supports High Definition Audio Specification, the function of each audio
jack can be defined by software. The input / output function of each audio jack listed above
represents the default setting. However, when connecting external microphone to the audio
port, please use the Line In (blue) and Mic In (Pink) audio jack.
