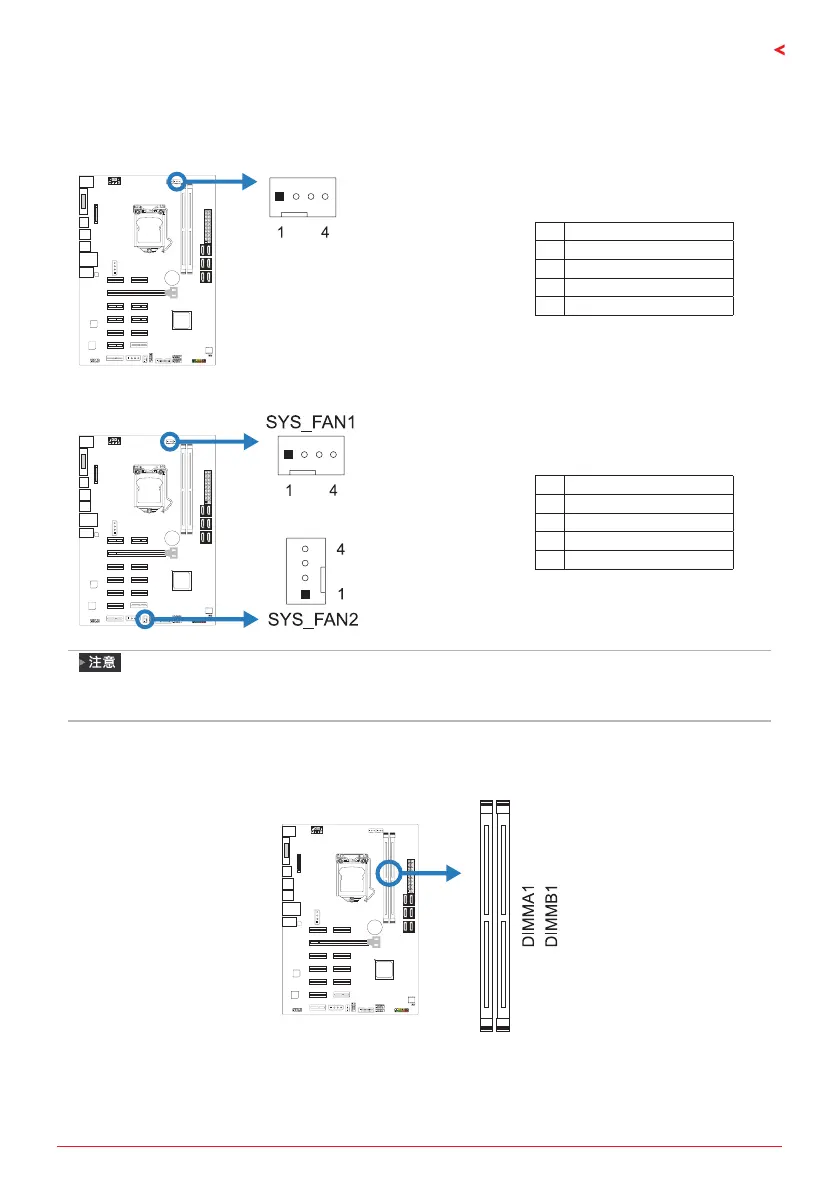

第二章: 硬件安装 | 11
TB250-BTC PRO / TB250-BTC+
2�3 风扇接头
此风扇接头支持电脑内置的冷却风扇，风扇引线和插头可能因制造商而异。
CPU_FAN1: CPU 风扇接头
Pin Assignment
1 接地
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
SYS_FAN1/ SYS_FAN2: 系统风扇接头
Pin Assignment
1 接地
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
»
CPU_FAN1，SYS_FAN1，SYS_FAN2支持4针脚和3针脚接口；接线时请注意红线是正极需接到
第二个针脚，黑线接地需接到GND针脚。
2�4 系统内存
DDR4内存模组
