Biostar TB250-BTC+ User Manual

Chapter 1: Introducon | 5
TB250-BTC PRO / TB250-BTC+

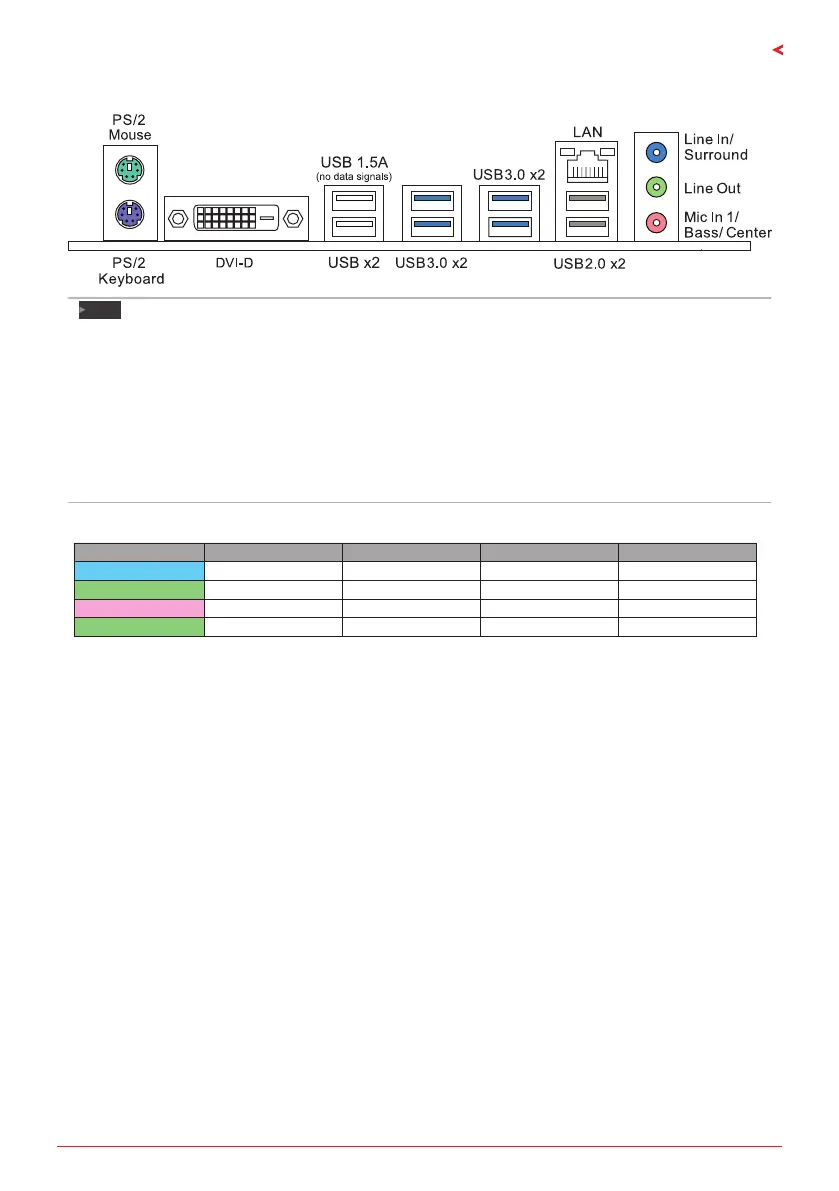

1.4 Rear Panel Connectors
Note
»
 DVI-DportonlyworkswithanIntel®integratedGraphicsProcessor.

»
Maximumresoluon
DVI-D:1920x1200@60Hz

»
WhenusingthefrontHDaudiojackandplugintheheadset,therearsoundwillbeautomacally
Disabled.

»
Tocongure7.1-channelaudio,youhavetouseachassiswithHDfrontpanelaudiomoduleand
enablethemul-channelaudiofeaturethroughO.S.AudioUlity.

»
TheUSB1.5Aportonlyprovides1.5Apowerforyouraccessories.(e.g.headphonesandUSBcharger
devices.)
The 2/ 4/ 5.1/ 7.1-channel conguraon
Audio Port 2-channel 4-channel 5.1 channel 7.1 channel
Blue (Rear Panel) Line In Line In Line In Side Speaker Out
Green (Rear Panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear Panel) Mic In Mic In Center/Subwoofer Out Center/Subwoofer Out
Green (Front Panel) Headphone Rear Speaker Out Rear Speaker Out Rear Speaker Out

Biostar TB250-BTC+ Specifications

General

Chipset	Intel B250
CPU Socket	LGA 1151
Form Factor	ATX
Memory Type	DDR4
Maximum Memory	32GB
Memory Slots	2
SATA 6Gb/s Ports	6
USB 2.0 Ports	6
Network	Realtek RTL8111H - 10/100/1000 Mb/s
RAID Support	RAID 0, 1, 5, 10
PCIe Slots	1 x PCIe 3.0 x16, 5 x PCIe 3.0 x1
Audio	Realtek ALC887 8-Channel HD
M.2 Slots	1
USB 3.0 Ports	6 (4 rear, 2 via header)
