TH67+/TH67/TH67B
11

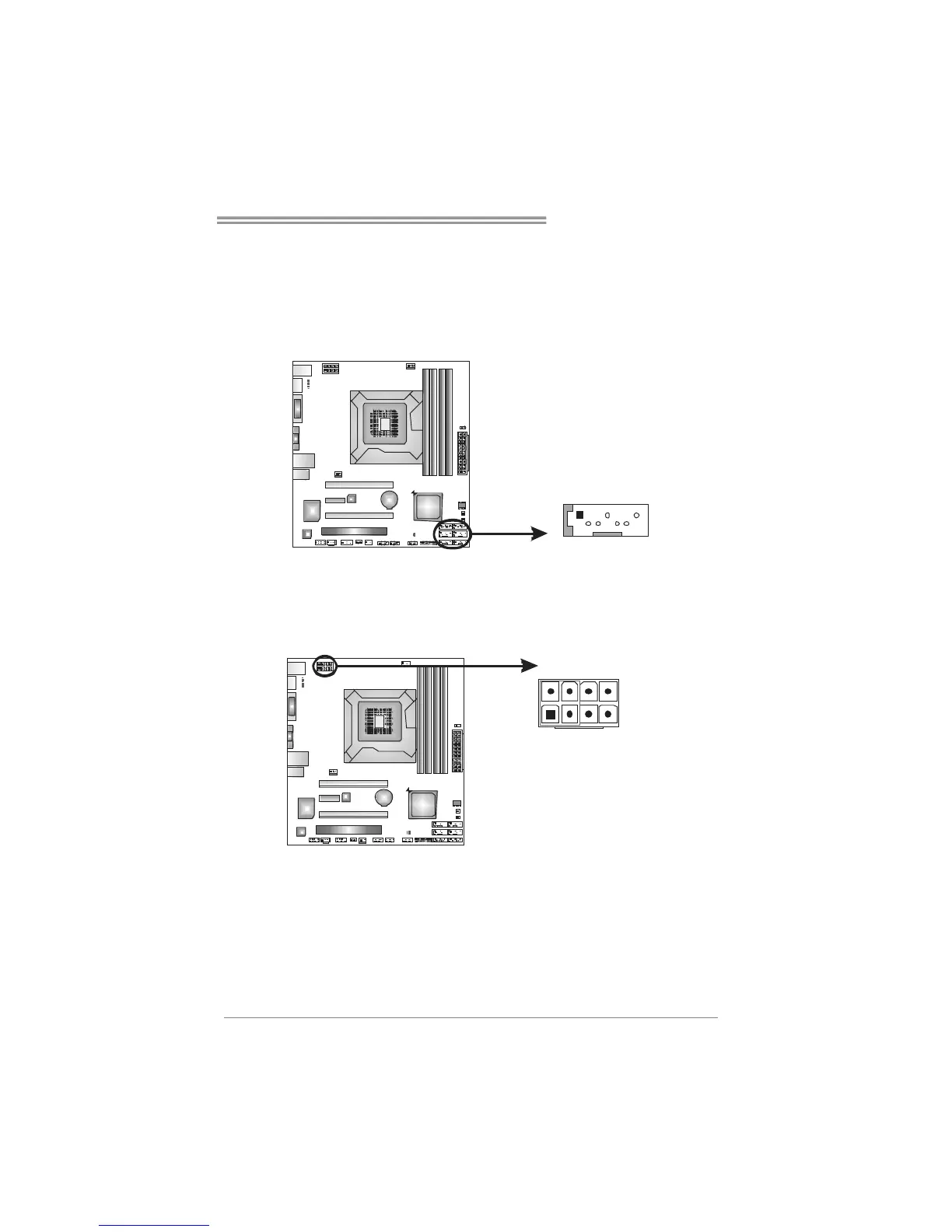

2.4 CONNECTORS AND SLOTS
SATA1 ~ SATA6: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 6 channels SATA interface.
SATA1 & SATA2 satisfy the SATA 3.0 spec and with transfer rate of 6.0Gb/s;
SATA3 ~ SATA6 satisfy the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
74
1
SATA1
3
5
SATA
SATA
SATA2
4
6
SATA
SATA
7 Ground
ATXPWR2: ATX Power Source Connector (TH67+ / TH67)
This connector provides +12V to CPU power circuit. If the CPU power plug is
4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.
Pin
Assignment
1 +12V
2 +12V
3 +12V
4 +12V
5 Ground
6 Ground
7 Ground
14
85
8 Ground
