Biostar TH67 User Manual

TH67+/TH67/TH67B
3
TH67+ / TH67 TH67B
Serial Port Connector x1 Serial Port Connector x1
SATA 3 Connector x2 SATA 3 Connector x2
SATA 2 Connector x4 SATA 2 Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
S/PDIF out Connector x1 S/PDIF out Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x2 System Fan Header x2
Clear CMOS Header x1 Clear CMOS Header x1
USB 2.0 Connector x3 USB 2.0 Connector x3
Consumer IR Connector x1 Consumer IR Connector x1
Power Connector (24pin) x1 Power Connector (24pin) x1
On Board
Connectors
Power Connector (8pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port (by H67) x2
USB3.0 Port (by NEC uPD720200 /
Asmedia ASM1042) x2
Audio Jack x3
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB2.0 Port x4
Audio Jack x3
Board Size
230 (W) x 244 (L) mm 230 (W) x 244 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS with or without notice

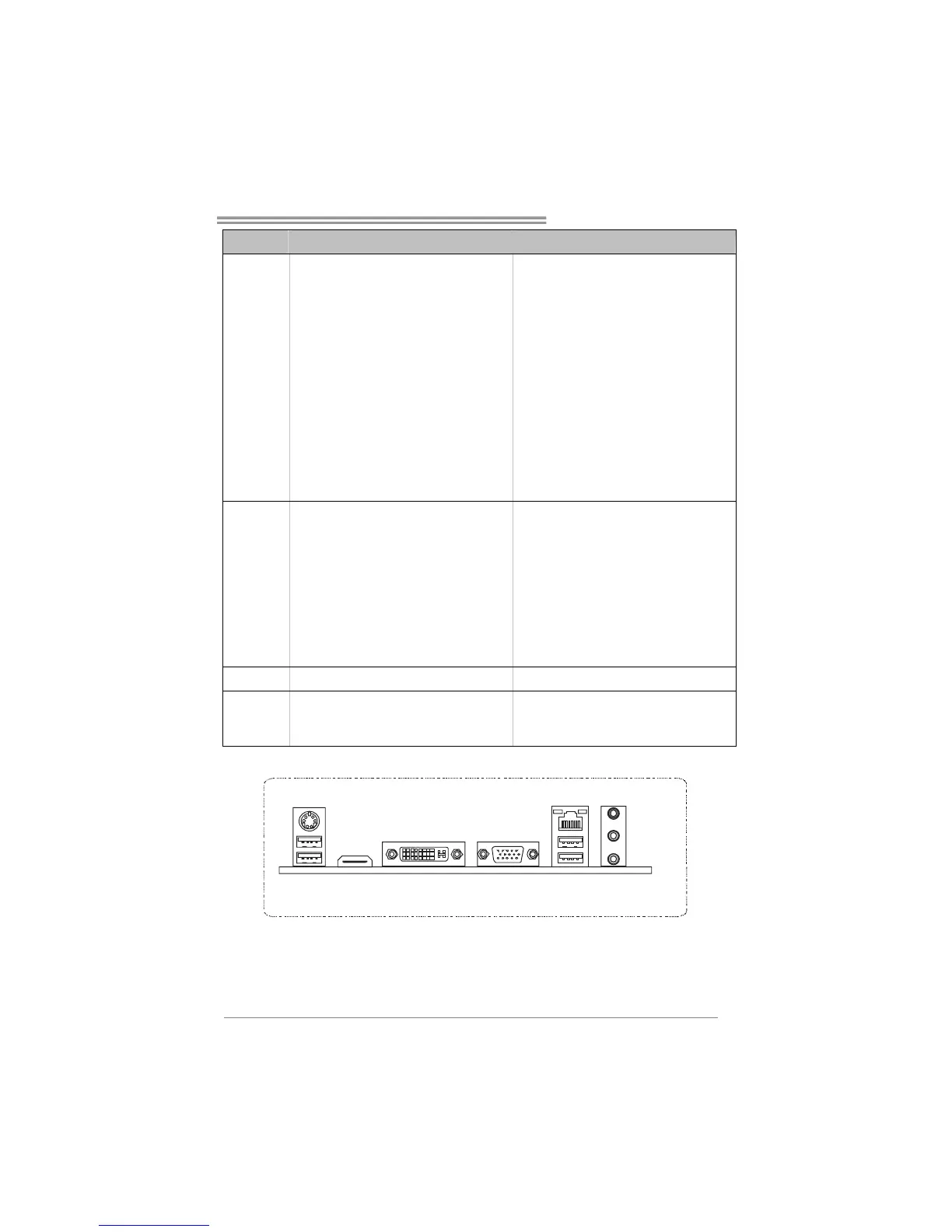

1.4 REAR PANEL CONNECTORS
USB3.0X2
LAN
HDMI VGADV I -D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Cen ter
PS/2
Keyboard / Mouse
USB2.0X2
(For TH67+ & TH67)
USB2.0X2
(For TH6 7B)
NOTE: Any of 2 HDMI / DVI-D / VGA can provide digital video signals out-put function.
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is
controlled by NEC uPD720200 / Asmedia ASM1042, but, USB2.0/USB1.X is controlled by
H67.
