22 Ports on the Operation Module
Ports on the Operation Module
Note: The ECG and PGH ports are mechanically coded; it is
not possible to connect the cables incorrectly.

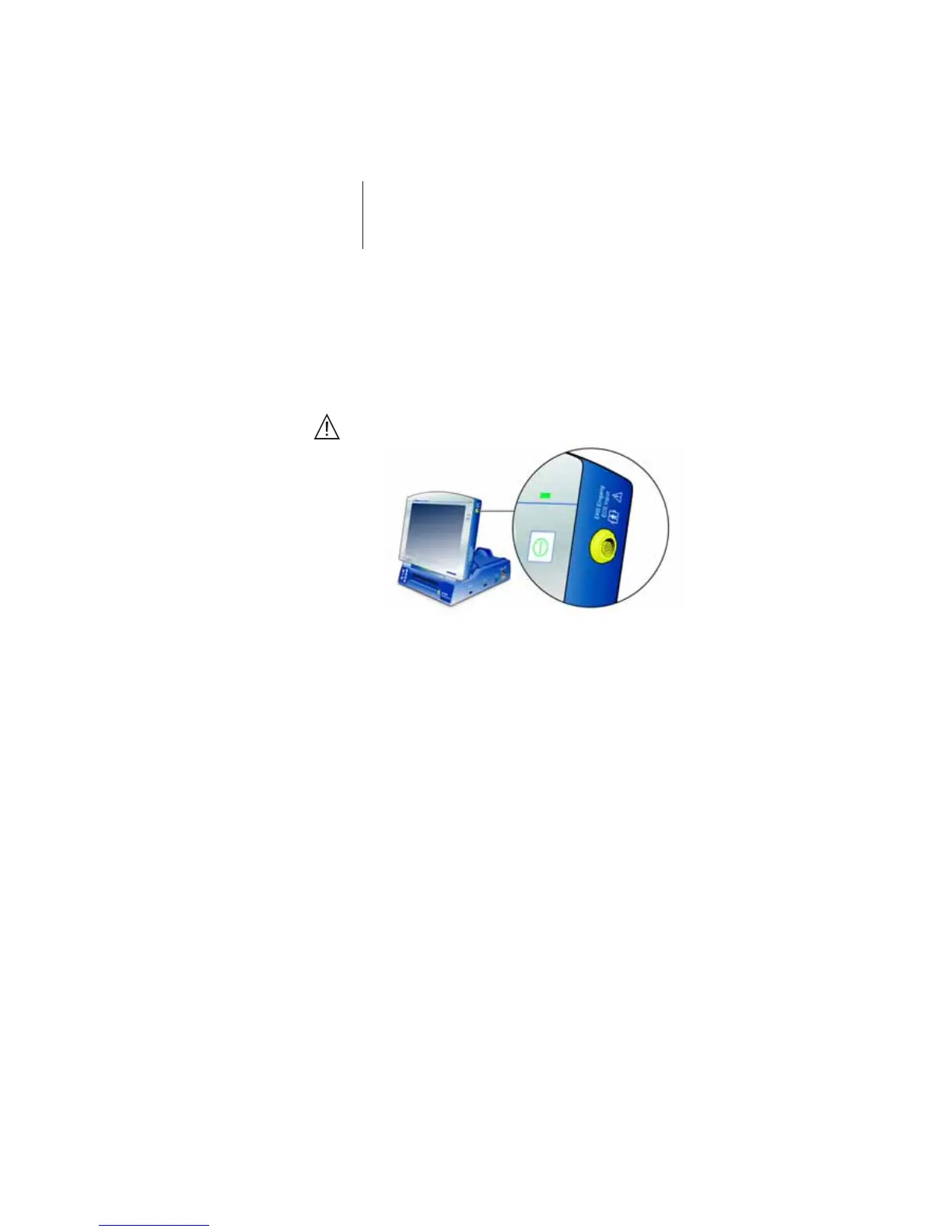

ECG port The ECG module is used with extremity leads:
3-channel ECG (Einthoven) and a miniclinic to monitor
the functioning of implants.
• 14-pin port for PK-222 or PK-199
Caution! The plugs of the patient cables may not touch any
conductive or grounded components!
Note: For information regarding approved adhesive and clip
electrodes for surface leads, see page 40
PGH The 14-pin port for the programming head (see fold-
out page) is located at the back of the Operation
Module.
Infrared Normal IrDA standard (infrared interface, see fold-out
page) with transfer rates of up to 115 kbps.
Bluetooth interface Bluetooth is an industry standard for wireless
networking of devices over a short distance. It can be
used to connect an external printer; see page 26.
