BIRD SiteHawk SK-4500 - Delete User Files; Site Name Configuration

Bird SiteHawk Operation Manual
35

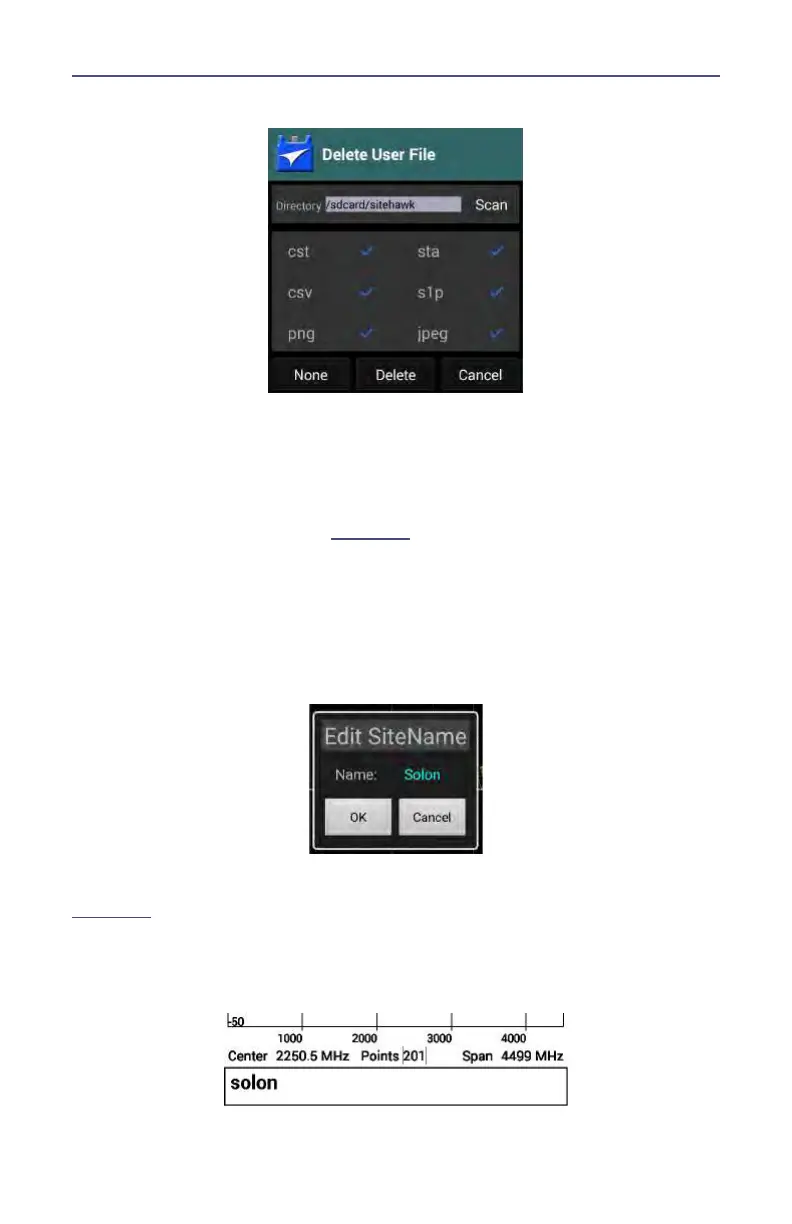

Figure 25 Delete User File dialog box
Site Name
Press to toggle ON or OFF, when set to ON the site name will be included on all
screen shots.
After Site Name is set to ON, an Edit SiteName dialog box will be displayed each
time a screen shot is taken. See Figure 26 .
The site name must be entered the first time a screen shot is saved.
Note: The default setting for the Site Name option is OFF. If the
SiteHawk application is exited or SiteHawk is powered off the site name is reset
to NULL and the Site Name option is reset to OFF.
Figure 26 Site Name Dialog Box
The site name will appear at the bottom of the sweep display screen shot. See
Figure 27 .
If no site name was entered NULL will appear in place of the site name.
Figure 27 Site Name Screenshot
