3.3.7 Refractory Brick Replacement
The intense heat of the fire will normally cause hairline cracks in the refractory. These
cracks can be minimised by proper curing as described in "First Fires". They will not
normally diminish the effectiveness of the refractory. If large cracks develop, then the

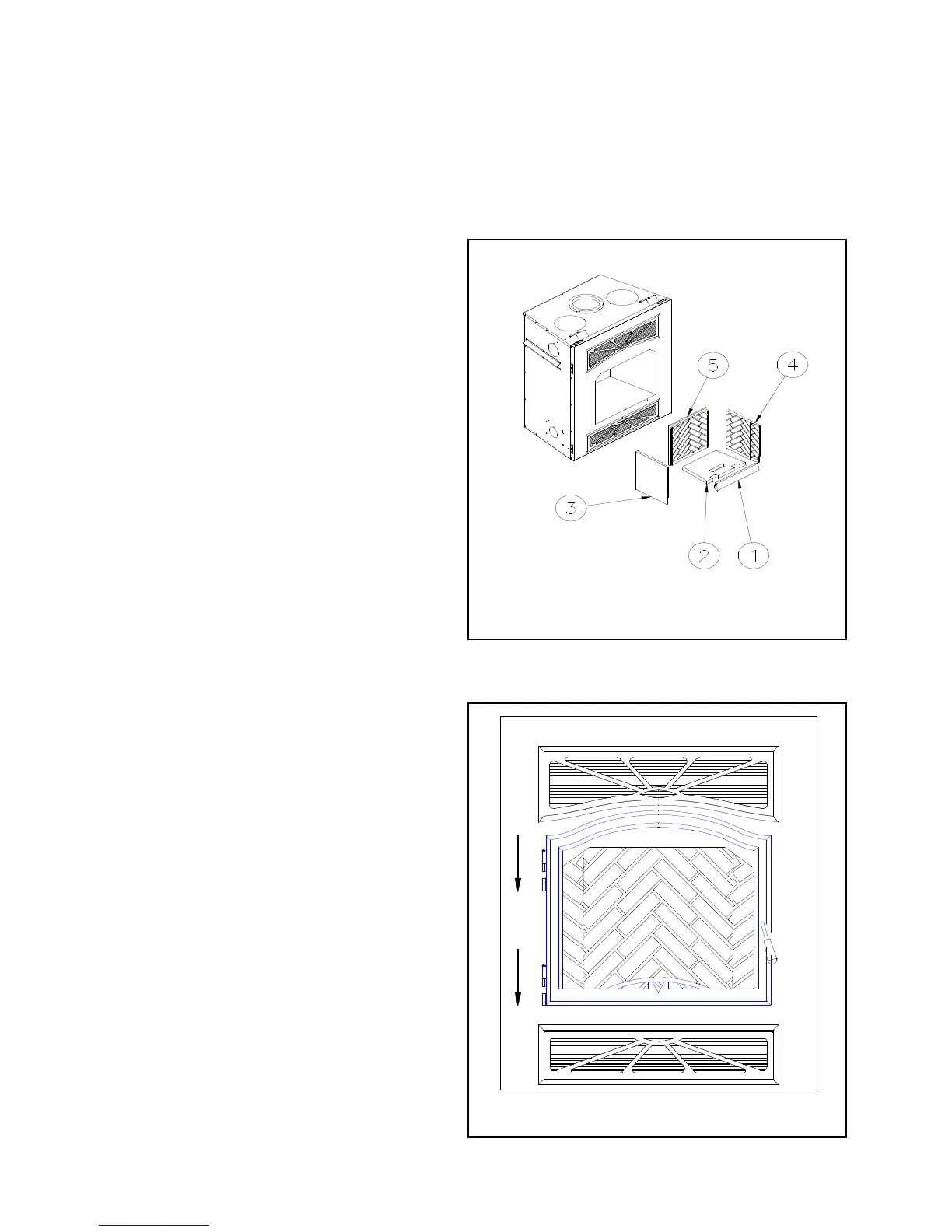

refractory should be replaced. To replace the refractory bricks, follow these steps:
1. Remove the front refractory
brick
2. Remove the bottom
refractory brick
3. Remove the left side
refractory brick
4. Remove the right side
refractory brick
5. Remove the back refractory
brick
To install the new refractory bricks,
follow the above steps in reverse.
The door must be installed only
when the installation of the BIS
PANORAMA is completed. All
you have to do is fit the male part of
the hinge, already fixed on the door,
in the female part, which is already
fixed on the fireplace.
To remove the door, simply pull the
door up from the hinges.
The adjustment of the door has been
set at the factory. If the fit is still
not perfect, you can adjust the door
using the hinge screws (see fig.6).
