BIS PANORAMA - ANGLED WALL RADIATION SHIELD

33

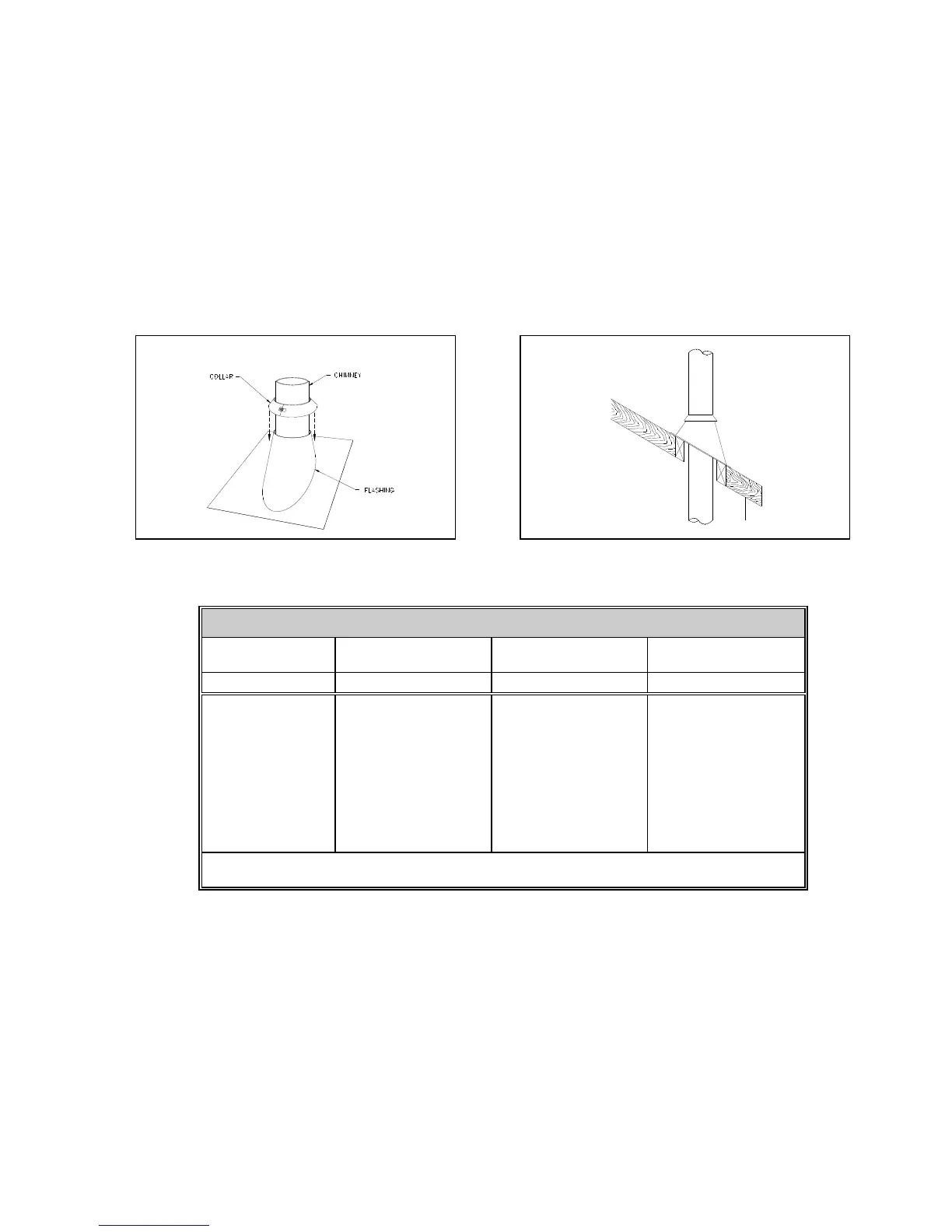

Figure 29
Figure 30
Table 2
ROOF DOWN SLOPE HOLE SIZE
SLOPE
Secure Temp
ASHT+
Nova Temp
HT6103+
Secure Temp
S-2100+
Nova Temp
HT6000+
ACBI
Roof Pitch
7"
7"
7"
0 *
13 3/8" (340 mm)
15 1/8" (384 mm)
15" (380 mm)
2/12
13 5/8" (345 mm)
15 3/8" (390 mm)
15 3/8" (390 mm)
4/12
14 1/8" (359 mm)
16" (406 mm)
16 1/8" (410 mm)
6/12
15" (380 mm)
17" (432 mm)
16 7/8" (430 mm)
8/12
16 1/8" (410 mm)
18 1/4" (465 mm)
18 1/4" (465 mm)
10/12
17 1/2" (445 mm)
19 3/4" (502 mm)
19 5/8" (500 mm)
12/12
19" (483 mm)
21 3/8" (545 mm)
21 3/8" (545 mm)
* CROSS SLOPE HOLE SIZE
ACBI CHIMNEY
