KW-210-222

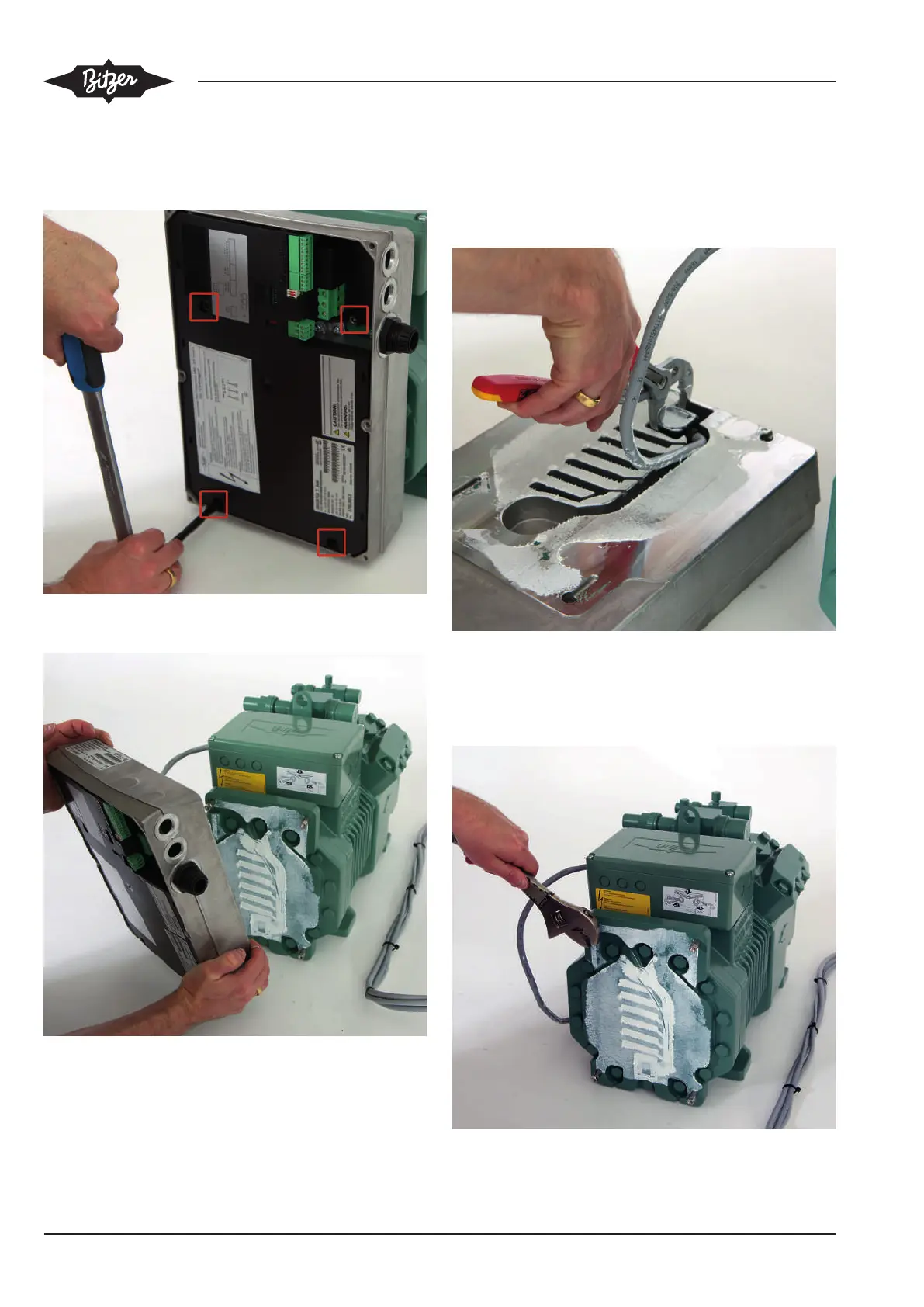

5. Unscrewing the frequency inverter (FI)
▶ For this, loosen the 4 screws marked in red on the
photo using a 5mm hexagon socket screw spanner.
▶ Carefully remove the frequency inverter and put it
down with the rear side pointing upward.
6. Removing the connector of the motor cable from
the rear side of the FI
▶ Carefully remove the connector of the motor cable
from the rear side of the frequency inverter with an
open-end spanner.
7. Removing the 4 fixing bolts from the compressor
▶ Use an adjustable spanner to remove the threaded
fixing bolts from the compressor. They are no longer
needed.
