KW-210-226

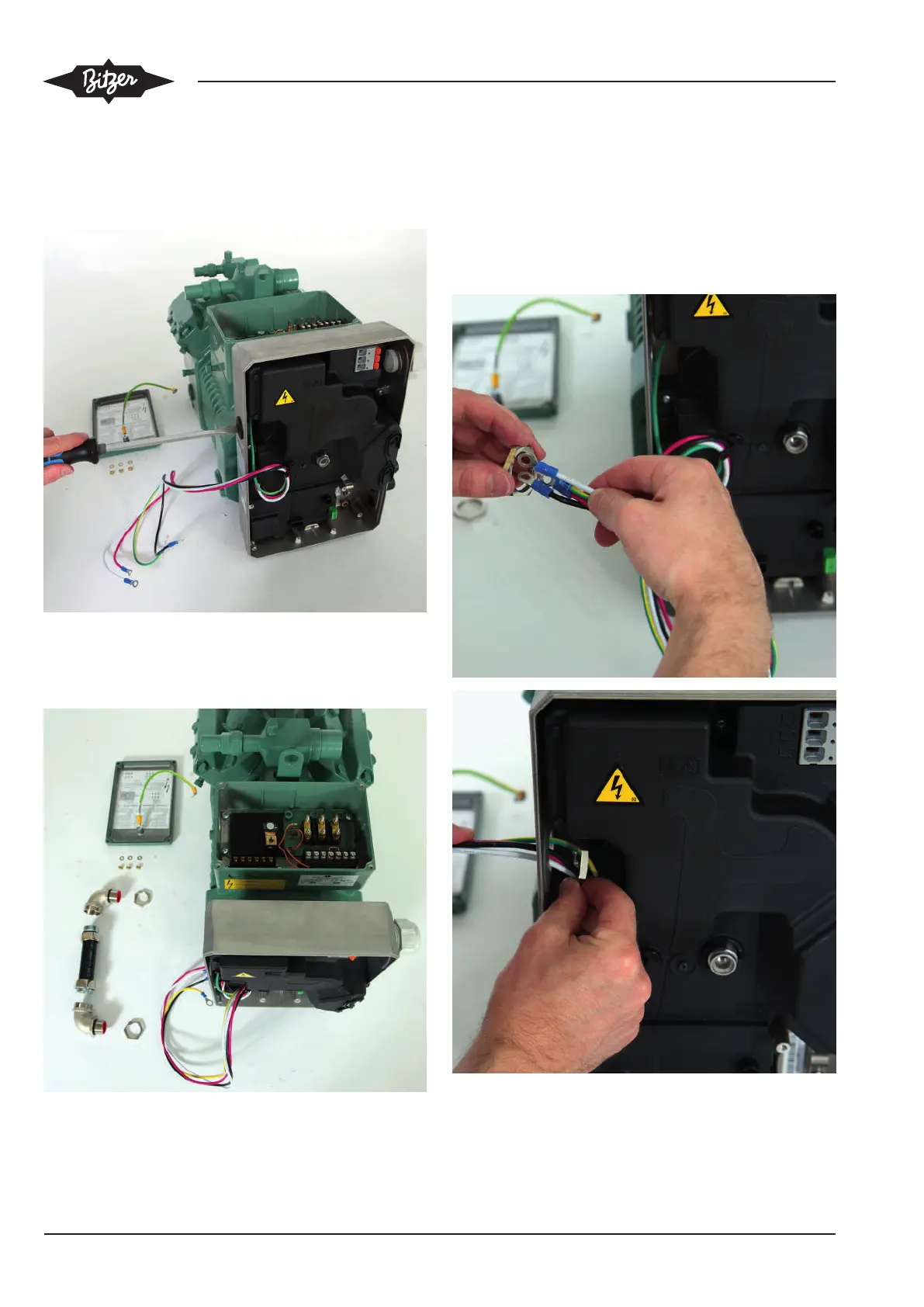

17. Removing the M20-M25 sealing plug from the
cable bushing for the motor cable
▶ Unscrew and remove the M20-M25 sealing plug with
a screwdriver (SL1.6x10).
18. Preparation: routing the motor cable through
the protective metal hose
▶ Disassemble the protective metal hose into 3 parts.
19. Route the motor cables through the protective
metal hose and screw it down to the FI
▶ First, pass the motor cables through the nut of the
protective metal hose.
▶ Then route the cables through the cable opening on
the frequency inverter and the first bend of the pro-
tective metal hose.
▶ Fasten the first bend of the protective metal hose on
the frequency inverter by means of the nut and
hand-tighten it with an adjustable spanner
