KW-210-2 27

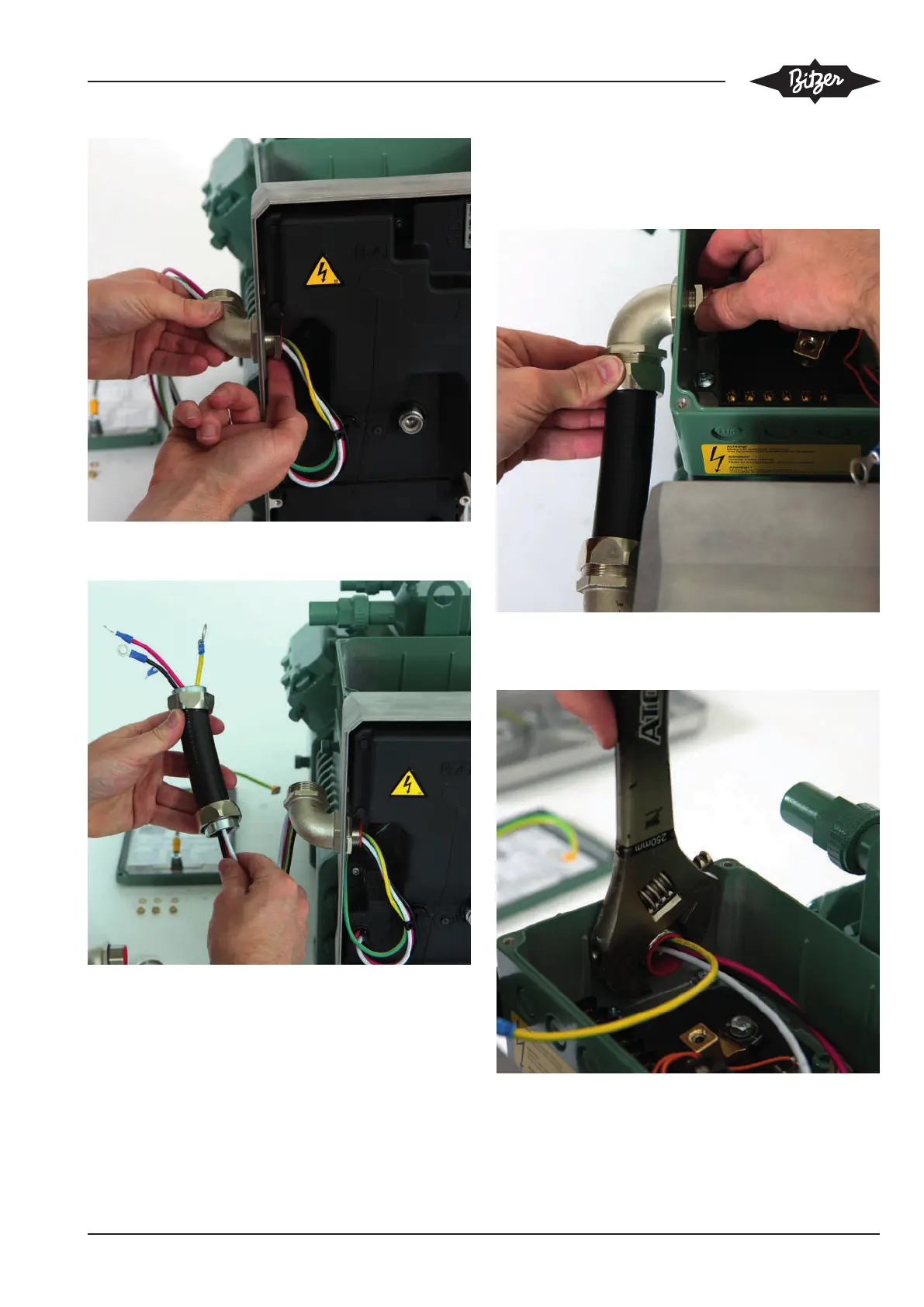

▶ Route the rest of the cables through the middle piece
and the upper bend of the protective metal hose.
20. Screwing the protective metal hose to the
frequency inverter
▶ Assemble the protective metal hose and mount it
with the nut to the terminal box of the compressor.
▶ Then use an adjustable spanner to screw the pro-
tective metal hose hand-tight to the terminal box of
the compressor.
