KB-130-6 7

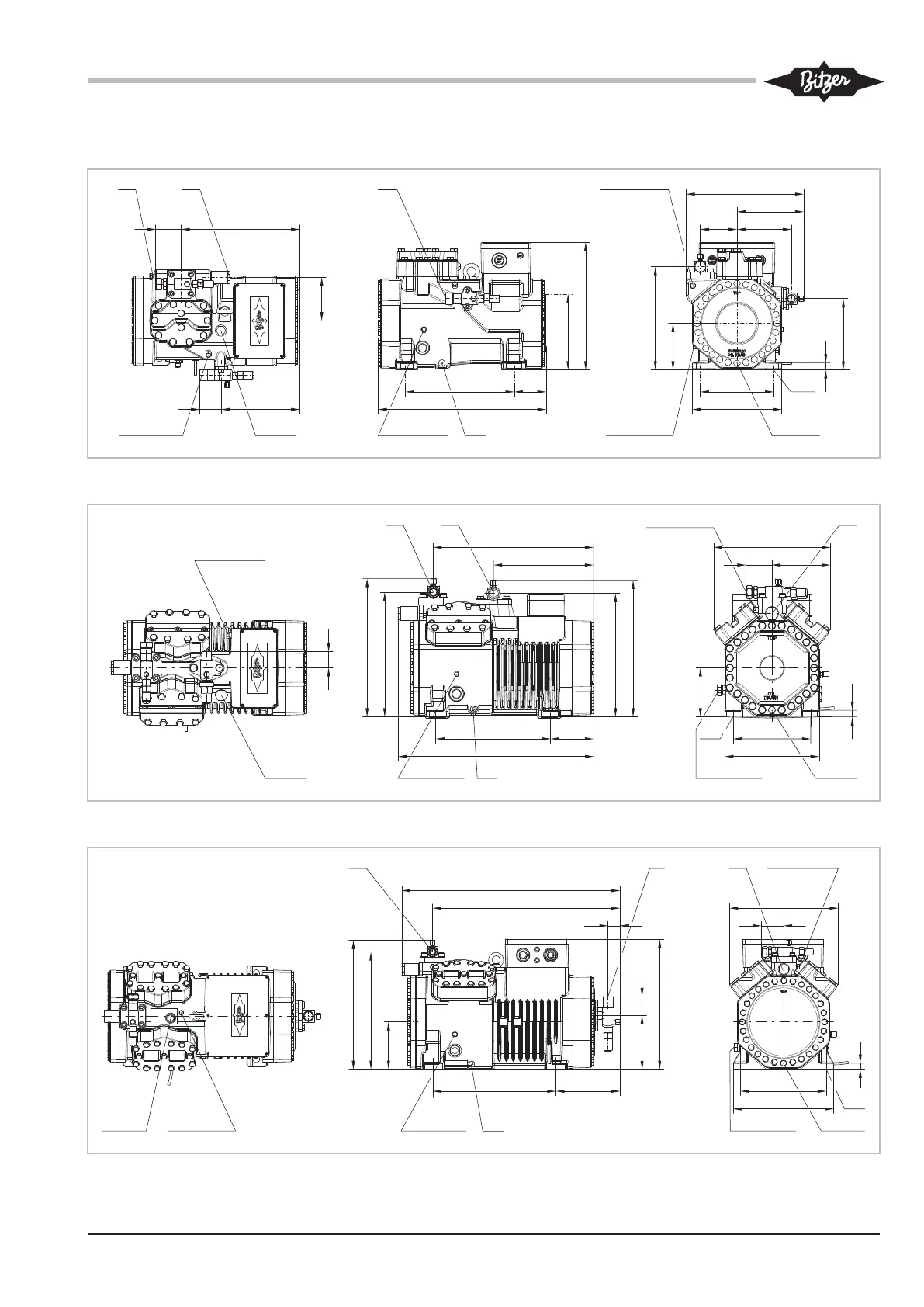

4.3 Anschlüsse und Maßzeichnungen
1/4-18 NPTF
5
Ø12
10
DL
SL
241
198
125
22
M10x1,5
6
1/4-18 NPTF
1 (HP)
Ø21
17
1/4-18 NPTF
3 (LP)
216
278
192
99 146
180
317
293 86
453
343
212
58
115
1/2-14 NPTF
923
M22x1,5
69 320
Abb.1: Maßzeichnung 2MTE-4K .. 2KTE-7K
504
293 115
1/4-18 NPTF
5
Ø12
10
321
352
318
DL SL
414
260
241
198
1/2-14 NPTF
9
128
298
14969
22
M10x1,5
6
42
1/4-18 NPTF
1 (HP)
Ø21
17
1/4-18 NPTF
3 (LP)
23
355
M22x1,5
Abb.2: Maßzeichnung 4PTC-6K .. 4KTC-10K
326
192367
161
389
56
351
142
385
560
652
36
19
256
300
22
M10x1,5
Ø21
DL
SL
1/2-14 NPTF
1/4-18 NPTF
9
6
1 (HP)
1/4-18 NPTF
5
Ø12
10
69
1/8-27 NPTF
3 (LP)23
M22x1,5
Abb.3: Maßzeichnung 4JTC-10K .. 4FTC-20K
