SB-170-9 RUS
41
SB-170-9 25
5
.4.2 CM-SW-01
Standard for all CSW105 compressors
The compressor module integrates the entire electronic
periphery of the compressor: It allows monitoring the
essential operating parameters of the compressor: mo-
tor and discharge gas temperature, phase and rotation
direction monitoring, oil supply and application limits
and thus protects the compressor from operation under
critical conditions. For further information, see Tech-
nical Information ST-150.
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
The following components are completely installed and
wired in the state of delivery:
• Slider position indicator.
• Oil monitoring (OLC-D1).
• Solenoid valves for capacity control and V
i
.
• Discharge gas temperature sensor.
• Low pressure and high pressure transmitter.
Modification to these components or their wiring is not
required and should not be done without consulting
BITZER.
The following components are not installed and wired in
the state of delivery and need to be connected:
• Motor temperature monitoring (PTC sensor in motor
winding).
• Phase monitoring (in case of a phase failure or inad-
missibly high phase asymmetry).
The compressor module internally supplies voltage to
the peripheral devices (solenoid valves, oil monitoring
device and slider position indicator) and to the terminal
strips CN7 to CN12.
Please refer to the Technical Information ST-150 for in-
formation on all connections.
5
.4.3 SE-i1
This protection device with extended monitoring func-
tions can be used as an option for all HS.53 .. HS.85
compressors and CSH and CSW compressors.
Monitoring functions:
• Temperature monitoring.
• Monitoring of the PTC control circuit to detect any
short-circuit or line break/sensor failure.
• Rotation direction monitoring.
• Monitoring of phase failure and asymmetry.
• Monitoring of the maximum cycling rate.
For further information, see Technical Information
CT-110.
5
.4.4 SE-E2
Optional protection device for operation with frequency
inverter and soft starter (for a ramp time shorter than
1s).
• Dimensions and integration in the control identical to
SE-E1.
• Suitable for all CS. compressors.
• Monitoring functions are basically identical to those
of SE-E1. However, the SE-E2 monitors phase fail-
ure during the entire running time of the compressor.
For further information, see Technical Information
ST-122.
5
.4.5 Monitoring of the oil circuit
• For short circuits without liquid injection (LI) for addi-
tional cooling and for small system volume and small
refrigerant charge: Indirect monitoring with oil tem-
perature sensor (standard)
NOTICE
Lack of oil leads to a too high increase in tem-
perature.
Risk of damage to the compressor!
• For circuits with liquid injection (LI) for additional
cooling and / or for great system volume as well as
parallel compounding: Monitor oil level directly with
opto-electronic oil level monitoring (option), see
chapter Opto-electronic oil level monitoring OLC-D1-
S, page 26. The connection is on the compressor
housing, see chapter Connections and dimensional
drawings, page 14, position 8.

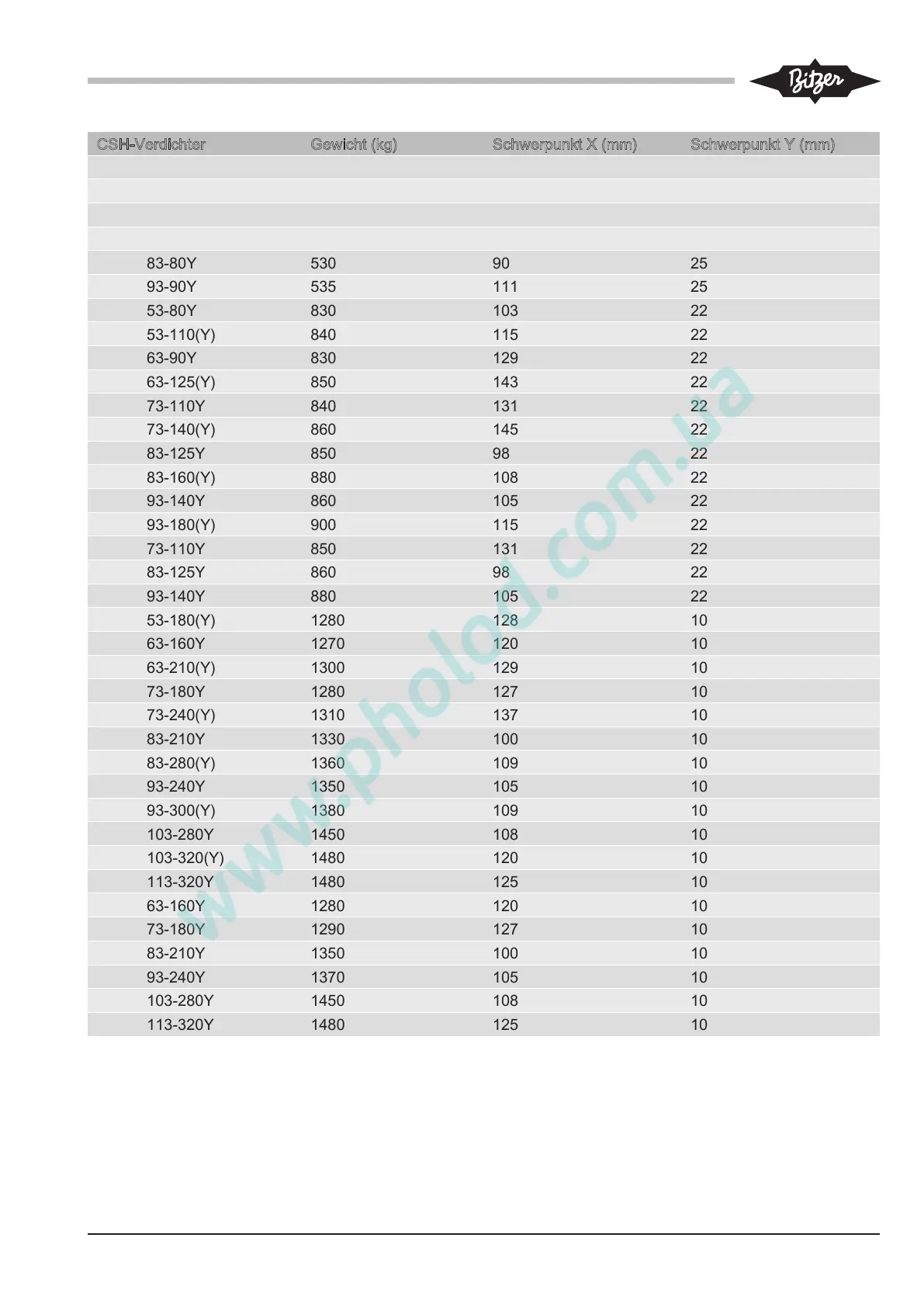

CSH-Verdichter Gewicht (kg) Schwerpunkt X (mm) Schwerpunkt Y (mm)
CSH7583-100(Y) 550 102 25
CSH7593-90Y 530 111 25
CSH7593-110(Y) 560 123 25
CSH7673-70Y 520 120 25
CSH7683-80Y 530 90 25
CSH7693-90Y 535 111 25
CSH8553-80Y 830 103 22
CSH8553-110(Y) 840 115 22
CSH8563-90Y 830 129 22
CSH8563-125(Y) 850 143 22
CSH8573-110Y 840 131 22
CSH8573-140(Y) 860 145 22
CSH8583-125Y 850 98 22
CSH8583-160(Y) 880 108 22
CSH8593-140Y 860 105 22
CSH8593-180(Y) 900 115 22
CSH8673-110Y 850 131 22
CSH8683-125Y 860 98 22
CSH8693-140Y 880 105 22
CSH9553-180(Y) 1280 128 10
CSH9563-160Y 1270 120 10
CSH9563-210(Y) 1300 129 10
CSH9573-180Y 1280 127 10
CSH9573-240(Y) 1310 137 10
CSH9583-210Y 1330 100 10
CSH9583-280(Y) 1360 109 10
CSH9593-240Y 1350 105 10
CSH9593-300(Y) 1380 109 10
CSH95103-280Y 1450 108 10
CSH95103-320(Y) 1480 120 10
CSH95113-320Y 1480 125 10
CSH9663-160Y 1280 120 10
CSH9673-180Y 1290 127 10
CSH9683-210Y 1350 100 10
CSH9693-240Y 1370 105 10
CSH96103-280Y 1450 108 10
CSH96113-320Y 1480 125 10
