Bitzer CSH7583-80Y User Manual

SB-170-9 RUS
71
SB-170-9 25
5
.4.2 CM-SW-01
Standard for all CSW105 compressors
The compressor module integrates the entire electronic
periphery of the compressor: It allows monitoring the
essential operating parameters of the compressor: mo-
tor and discharge gas temperature, phase and rotation
direction monitoring, oil supply and application limits
and thus protects the compressor from operation under
critical conditions. For further information, see Tech-
nical Information ST-150.
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
The following components are completely installed and
wired in the state of delivery:
• Slider position indicator.
• Oil monitoring (OLC-D1).
• Solenoid valves for capacity control and V
i
.
• Discharge gas temperature sensor.
• Low pressure and high pressure transmitter.
Modification to these components or their wiring is not
required and should not be done without consulting
BITZER.
The following components are not installed and wired in
the state of delivery and need to be connected:
• Motor temperature monitoring (PTC sensor in motor
winding).
• Phase monitoring (in case of a phase failure or inad-
missibly high phase asymmetry).
The compressor module internally supplies voltage to
the peripheral devices (solenoid valves, oil monitoring
device and slider position indicator) and to the terminal
strips CN7 to CN12.
Please refer to the Technical Information ST-150 for in-
formation on all connections.
5
.4.3 SE-i1
This protection device with extended monitoring func-
tions can be used as an option for all HS.53 .. HS.85
compressors and CSH and CSW compressors.
Monitoring functions:
• Temperature monitoring.
• Monitoring of the PTC control circuit to detect any
short-circuit or line break/sensor failure.
• Rotation direction monitoring.
• Monitoring of phase failure and asymmetry.
• Monitoring of the maximum cycling rate.
For further information, see Technical Information
CT-110.
5
.4.4 SE-E2
Optional protection device for operation with frequency
inverter and soft starter (for a ramp time shorter than
1s).
• Dimensions and integration in the control identical to
SE-E1.
• Suitable for all CS. compressors.
• Monitoring functions are basically identical to those
of SE-E1. However, the SE-E2 monitors phase fail-
ure during the entire running time of the compressor.
For further information, see Technical Information
ST-122.
5
.4.5 Monitoring of the oil circuit
• For short circuits without liquid injection (LI) for addi-
tional cooling and for small system volume and small
refrigerant charge: Indirect monitoring with oil tem-
perature sensor (standard)
!
!
NOTICE
Lack of oil leads to a too high increase in tem-
perature.
Risk of damage to the compressor!
• For circuits with liquid injection (LI) for additional
cooling and / or for great system volume as well as
parallel compounding: Monitor oil level directly with
opto-electronic oil level monitoring (option), see
chapter Opto-electronic oil level monitoring OLC-D1-
S, page 26. The connection is on the compressor
housing, see chapter Connections and dimensional
drawings, page 14, position 8.
SB-170-9 71
ATTENTION
Les températures de surface peuvent dépasser
60°C ou passer en dessous de 0°C.
Risque de brûlures ou de gelures.
Fermer et signaler les endroits accessibles.
Avant tout travail sur le compresseur: mettre
hors circuit ce dernier et le laisser refroidir.
P
our les travaux sur l’équipement électrique et
électronique
AVERTISSEMENT
Risque de choc électrique!
Avant tout travail sur la boîte de raccordement,
le boîtier du module et les lignes électriques:
Désactiver l’interrupteur principal et le sécuriser
contre toute remise en marche!
Avant la remise en marche, refermer la boîte de
raccordement et le boîtier du module!
!
!
AVIS
Risque d’endommagement ou de défaillance du
module du compresseur!
N’appliquer aucune tension aux bornes des bor-
niers CN7 à CN12, même pas pour tester!
Appliquer une tension maximale de 10V aux
bornes du CN13!
Appliquer une tension maximale de 24V à la
borne 3 du CN14; n’appliquer aucune tension
aux autres bornes.
3 Champs d’application
Fluides frigorigènes autorisés
(autres fluides frigorigènes pos-
sibles sur demande)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Charge d’huile CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Limites d’application CSH: Voir le prospectus SP-171 et BITZER SOFTWARE
CSW: Voir le prospectus SP-172 et BITZER SOFTWARE
Tab.1: Champs d’application compresseurs CS
L’utilisation de R404A et de R507A ou d’autres mé-
langes nécessite une concertation individuelle avec
BITZER.
Lim
ite d’application des CSK61
Les compresseurs CSK61 sont prévus exclusivement
pour une utilisation avec le fluide frigorigène, sans ECO
ni LI. La limite d’application inférieure est de -10°C. Si
la valeur est plus élevée, la limite d’application corres-
pond à celle des compresseurs CSH65 avec R22.
A
VERTISSEMENT
L'utilisation de fluides frigorigènes non
conformes est susceptible de faire éclater le
compresseur!
Risque de blessures graves!
N'utiliser que les fluides frigorigènes vendus par
des constructeurs renommés et des partenaires
commerciaux sérieux!
R
isque d'introduction d'air lorsque l'appareil fonctionne
sous pression subatmosphérique
!
!
AVIS
Risque de réactions chimiques, de pression de
condensation excessive et d'augmentation de la
température du gaz de refoulement.
Éviter toute introduction d'air!
A
VERTISSEMENT
Risque de décalage critique de la limite d'inflam-
mabilité du fluide frigorigène.
Éviter toute introduction d'air!
SB-170-9 71
ATTENTION
Les températures de surface peuvent dépasser
60°C ou passer en dessous de 0°C.
Risque de brûlures ou de gelures.
Fermer et signaler les endroits accessibles.
Avant tout travail sur le compresseur: mettre
hors circuit ce dernier et le laisser refroidir.
P
our les travaux sur l’équipement électrique et
électronique
AVERTISSEMENT
Risque de choc électrique!
Avant tout travail sur la boîte de raccordement,
le boîtier du module et les lignes électriques:
Désactiver l’interrupteur principal et le sécuriser
contre toute remise en marche!
Avant la remise en marche, refermer la boîte de
raccordement et le boîtier du module!
!
!
AVIS
Risque d’endommagement ou de défaillance du
module du compresseur!
N’appliquer aucune tension aux bornes des bor-
niers CN7 à CN12, même pas pour tester!
Appliquer une tension maximale de 10V aux
bornes du CN13!
Appliquer une tension maximale de 24V à la
borne 3 du CN14; n’appliquer aucune tension
aux autres bornes.
3 Champs d’application
Fluides frigorigènes autorisés
(autres fluides frigorigènes pos-
sibles sur demande)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Charge d’huile CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Limites d’application CSH: Voir le prospectus SP-171 et BITZER SOFTWARE
CSW: Voir le prospectus SP-172 et BITZER SOFTWARE
Tab.1: Champs d’application compresseurs CS
L’utilisation de R404A et de R507A ou d’autres mé-
langes nécessite une concertation individuelle avec
BITZER.
Lim
ite d’application des CSK61
Les compresseurs CSK61 sont prévus exclusivement
pour une utilisation avec le fluide frigorigène, sans ECO
ni LI. La limite d’application inférieure est de -10°C. Si
la valeur est plus élevée, la limite d’application corres-
pond à celle des compresseurs CSH65 avec R22.
A
VERTISSEMENT
L'utilisation de fluides frigorigènes non
conformes est susceptible de faire éclater le
compresseur!
Risque de blessures graves!
N'utiliser que les fluides frigorigènes vendus par
des constructeurs renommés et des partenaires
commerciaux sérieux!
R
isque d'introduction d'air lorsque l'appareil fonctionne
sous pression subatmosphérique
!
!
AVIS
Risque de réactions chimiques, de pression de
condensation excessive et d'augmentation de la
température du gaz de refoulement.
Éviter toute introduction d'air!
A
VERTISSEMENT
Risque de décalage critique de la limite d'inflam-
mabilité du fluide frigorigène.
Éviter toute introduction d'air!

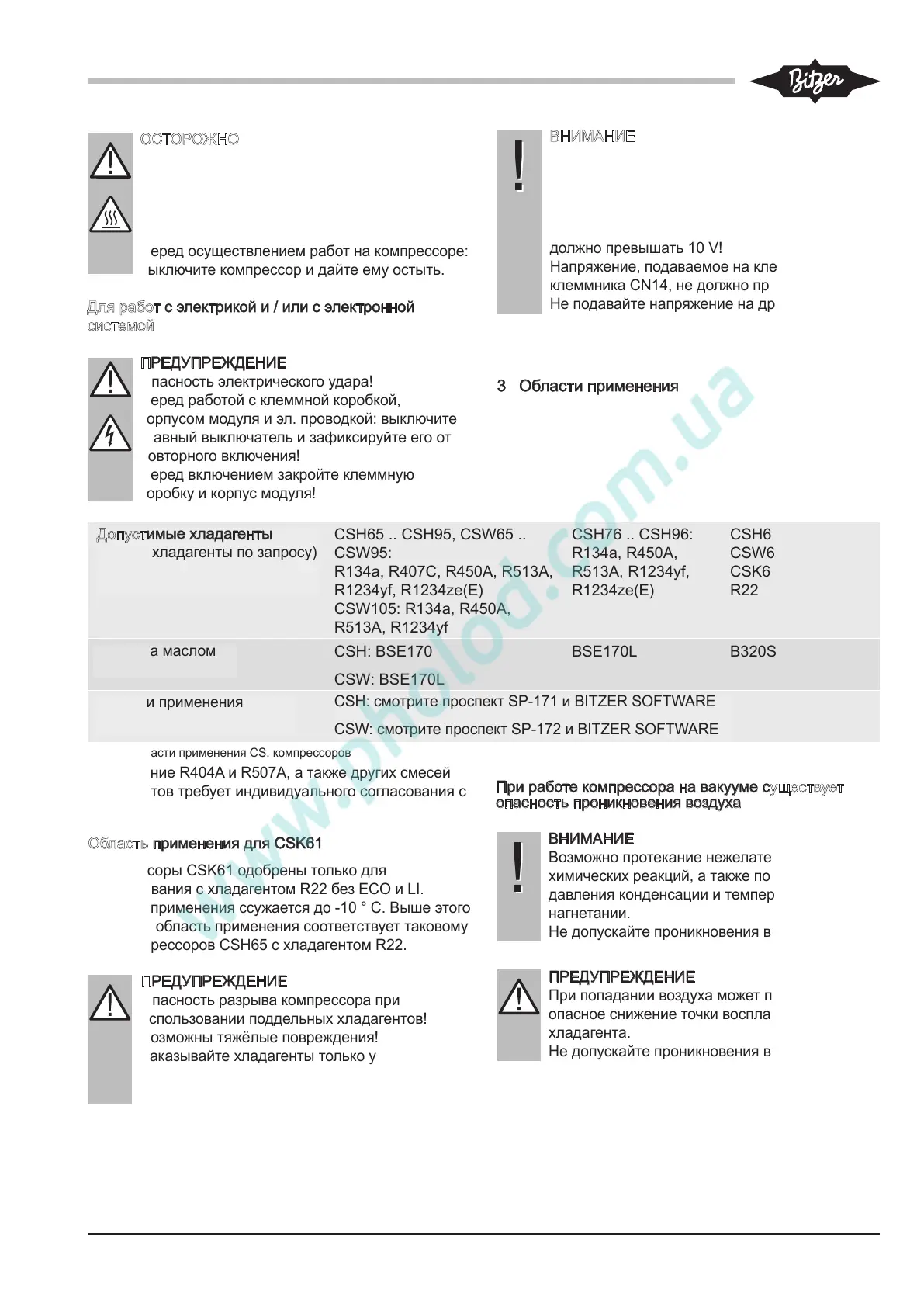

ОСТОРОЖНО
Температура поверхностей может достигать
выше 60 °C или опускаться ниже 0 °C.
Возможно получение ожогов и обморожений.
Оградите доступные места и пометьте их
соответствующим образом.
Перед осуществлением работ на компрессоре:
выключите компрессор и дайте ему остыть.
Для работ с электрикой и / или с электронной
системой
ПРЕДУПРЕЖДЕНИЕ
Опасность электрического удара!
Перед работой с клеммной коробкой,
корпусом модуля и эл. проводкой: выключите
главный выключатель и зафиксируйте его от
повторного включения!
Перед включением закройте клеммную
коробку и корпус модуля!
ВНИМАНИЕ
Модуль компрессора может быть поврежден
или выведен из строя!
Никогда не подавайте напряжение на клеммы
от CN7 до CN12 - даже в целях тестирования!
Напряжение, подаваемое на клеммы CN13, не
должно превышать 10 V!
Напряжение, подаваемое на клемму 3
клеммника CN14, не должно превышать 24 V!
Не подавайте напряжение на другие клеммы!
3 Области применения
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
WARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
Допустимые хладагенты
(другие хладагенты по запросу)
CSH: смотрите проспект SP-171 и BITZER SOFTWARE
CSW: смотрите проспект SP-172 и BITZER SOFTWARE
Заправка маслом
Области применения
Таб. 1: Области применения CS. компрессоров
Применение R404A и R507A, а также других смесей
хладагентов требует индивидуального согласования с
BITZER.
Область применения для CSK61
Компрессоры CSK61 одобрены только для
использования с хладагентом R22 без ECO и LI.
Область применения ссужается до -10 ° C. Выше этого
значения область применения соответствует таковому
для компрессоров CSH65 с хладагентом R22.
ПРЕДУПРЕЖДЕНИЕ
Опасность разрыва компрессора при
использовании поддельных хладагентов!
Возможны тяжёлые повреждения!
Заказывайте хладагенты только у
известных производителей и проверенных
дистрибьюторов!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
WARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
При работе компрессора на вакууме существует
опасность проникновения воздуха
ВНИМАНИЕ
Возможно протекание нежелательных
химических реакций, а также повышение
давления конденсации и температуры газа на
нагнетании.
Не допускайте проникновения воздуха!
ПРЕДУПРЕЖДЕНИЕ
При попадании воздуха может произойти
опасное снижение точки воспламенения
хладагента.
Не допускайте проникновения воздуха!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
WARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
WARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3
Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3
Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!
SB-170-9 5
Fo
r work on the compressor once it has been
commissioned
WARNING
The compressor is under pressure!
Serious injuries are possible.
Depressurize the compressor!
Wear safety goggles!
CAUTION
Surface temperatures of more than 60°C or be-
low 0°C.
Risk of burns or frostbite.
Close off accessible areas and mark them.
Before performing any work on the compressor:
switch it off and let it cool down.
Fo
r work on the electrical and/or electronic system
WARNING
Risk of electric shock!
Before working on the terminal box, module
housing and electrical lines: Switch off the main
switch and secure it against being switched on
again!
Close the terminal box and the module housing
before switching on again!
!
!
NOTICE
The compressor module may be damaged or
fail!
Never apply any voltage to the terminals of CN7
to CN12 – not even for test purposes!
The voltage applied to the terminals of CN13
must not exceed 10V!
The voltage applied to terminal 3 of CN14 must
not exceed 24V! Do no apply voltage to the
other terminals!
3 Application ranges
Permitted refrigerants
(other refrigerants on request)
CSH65 .. CSH95, CSW65 ..
CSW95:
R134a, R407C, R450A, R513A,
R1234yf, R1234ze(E)
CSW105: R134a, R450A,
R513A, R1234yf
CSH76 .. CSH96:
R134a, R450A,
R513A, R1234yf,
R1234ze(E)
CSH65 .. CSH95,
CSW65 .. CSW95,
CSK61:
R22
Oil charge CSH: BSE170
CSW: BSE170L
BSE170L B320SH
Application limits CSH: see brochure SP-171 and BITZER SOFTWARE
CSW: see brochure SP-172 and BITZER SOFTWARE
Tab.1: Application ranges of CS. compressors
The use of R404A and R507A and other refrigerant
blends requires individual consultation with BITZER.
A
pplication limit for CSK61
CSK61 compressors are only approved for use with
R22 refrigerant, without ECO and LI. The application
limit goes down to -10°C. Above this value, the applica-
tion limit corresponds to that for CSH65 compressors
with R22 refrigerant.
W
ARNING
Risk of bursting due to counterfeit refrigerants!
Serious injuries are possible!
Purchase refrigerants only from reputable man-
ufacturers and reliable distributors!
R
isk of air penetration during operation in the vacuum
range
!
!
NOTICE
Potential chemical reactions as well as in-
creased condensing pressure and rise in dis-
charge gas temperature.
Avoid air penetration!
W
ARNING
A critical shift of the refrigerant ignition limit is
possible.
Avoid air penetration!

Bitzer CSH7583-80Y Specifications

General

Brand	Bitzer
Model	CSH7583-80Y
Category	Air Compressor
Language	English
