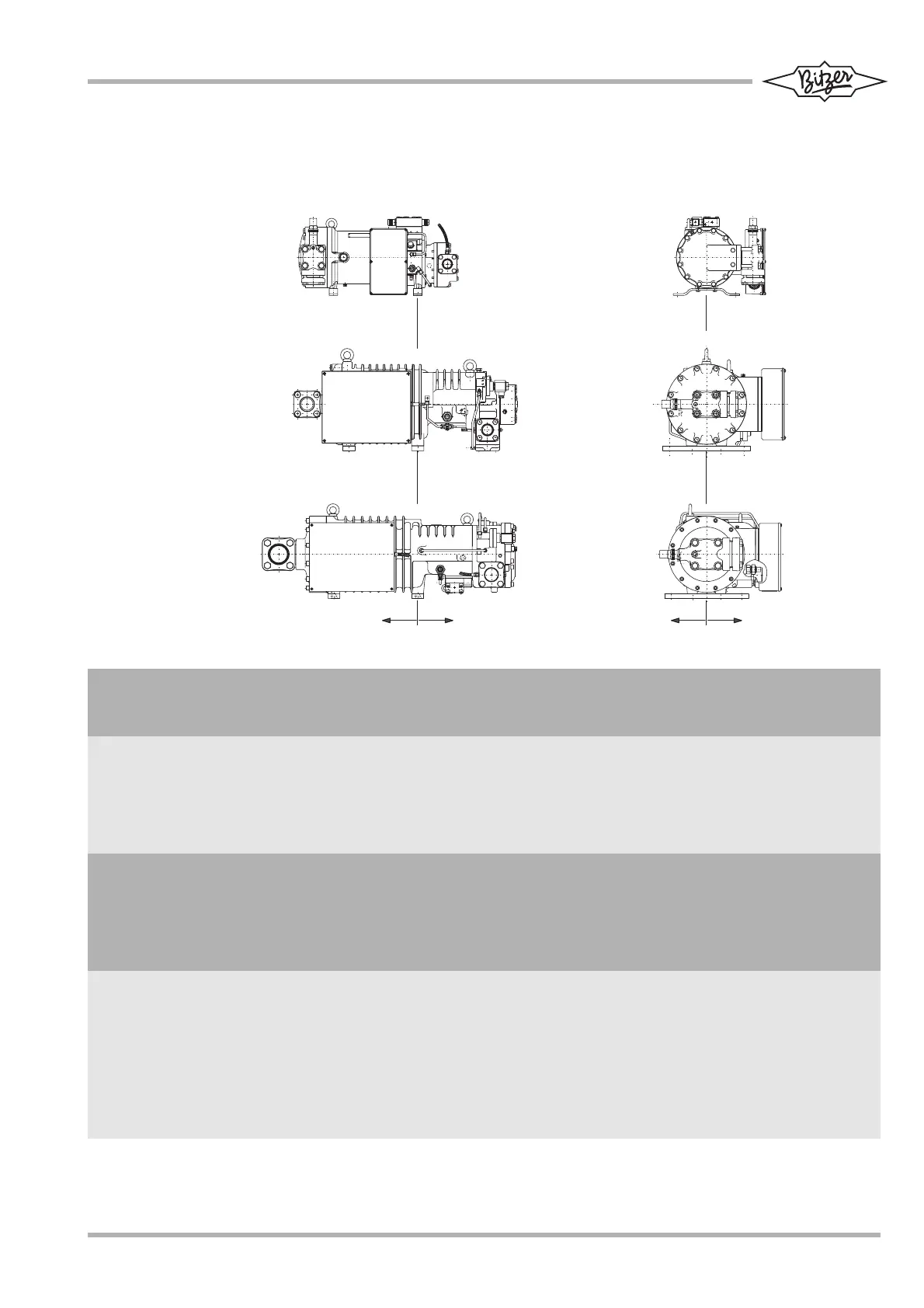

10 Schwerpunkte 10 Center of gravity 10 Centre de gravité
83SH-100-3
+
Y
+
X
- -
H S . 7 4
H S . 6 4
H S . 5 3
Verdichter X [mm] Y [mm]
Compressor X [mm] Y [mm]
Compresseur X [mm] Y [mm]
HSK5343-30 230 0
HSN5343-20 235 0
HSK5353-35 230 0
HSN5353-25 220 -25
HSK5363-40 210 -25
HSN5363-30 220 -25
HSK7451-70 60 -25
HSK7451-50 55 -25
HSN7451-60 55 -25
HSK7461-80 65 -25
HSK7461-60 60 -25
HSN7461-70 55 -30
HSK7471-90 70 -30
HSK7471-70 65 -30
HSN7471-75 60 -30
HSK6451-50 30 -10
HSK6451-40 25 -10
HSN6451-40 20 -10
HSK6461-60 40 -10
HSK6461-40 35 -10
HSN6461-50 30 -10
