BIXOLON SLP-TX220E - Interface Cable Connection

Rev. 1.00
- 12 -
SLP-TX220x/TX223x
3-2 Interface Cable Connection
3-2-1 Standard Model

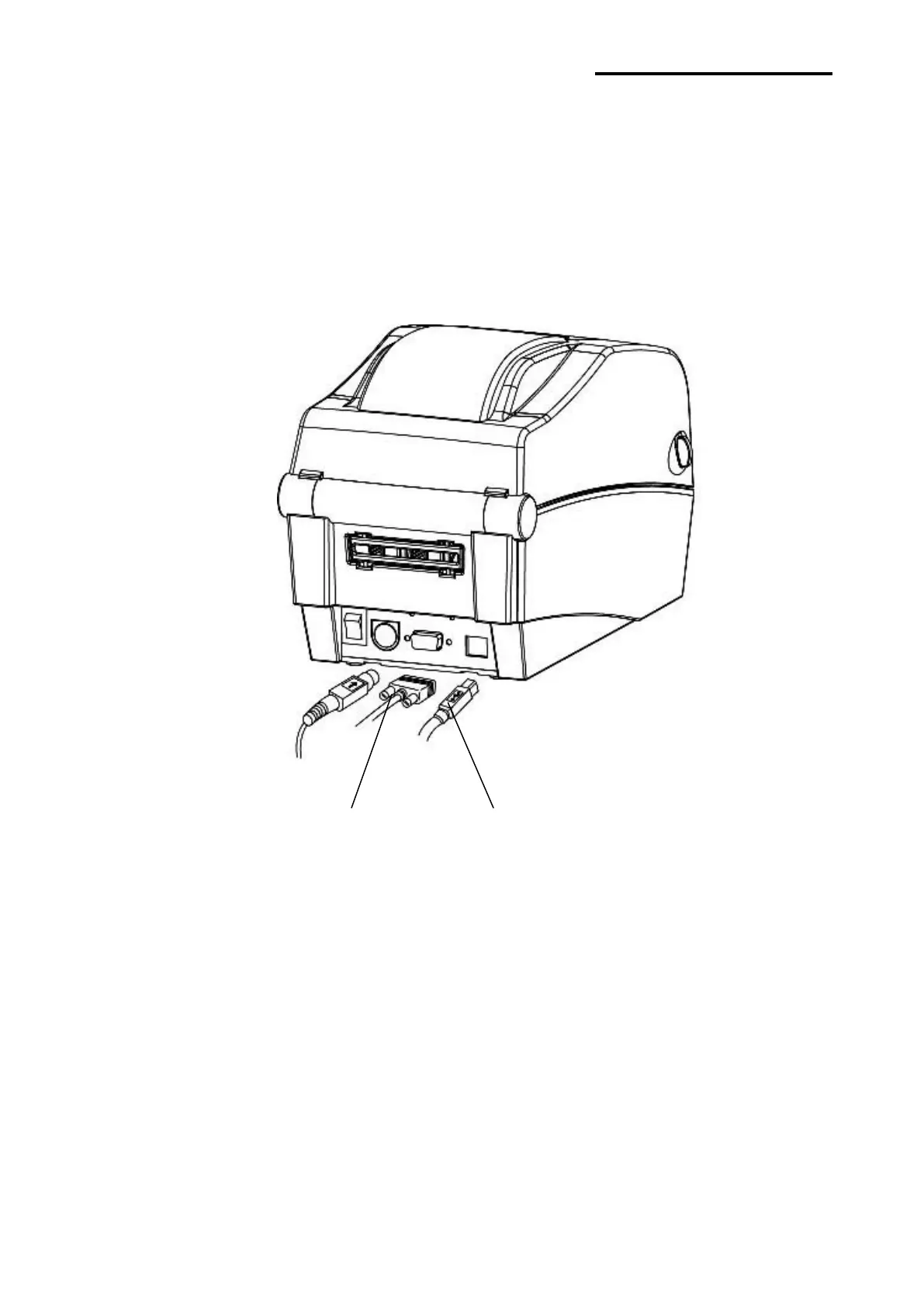

Connect the interface cable as shown below.
This printer supports the following communications interface standards.
- RS-232C(Serial) Cable
- USB B-Type Cable
1) Turn off the power switch.
2) Connect the communication cable to the printer communication port to be used.
- Connect the RS-232C(Serial) Cable to the SERIAL port.
and tighten the screw on both sides.
(This port requires a shielded cable less then 1.8m long.)
- Connect USB B-Type cable to the USB port.
(This port requires a shielded cable less then 1.8m long.)
USB Cable
RS-232(Serial) Cable
