Rev. 2.00

- 11 -

SRP-275 Ver.2

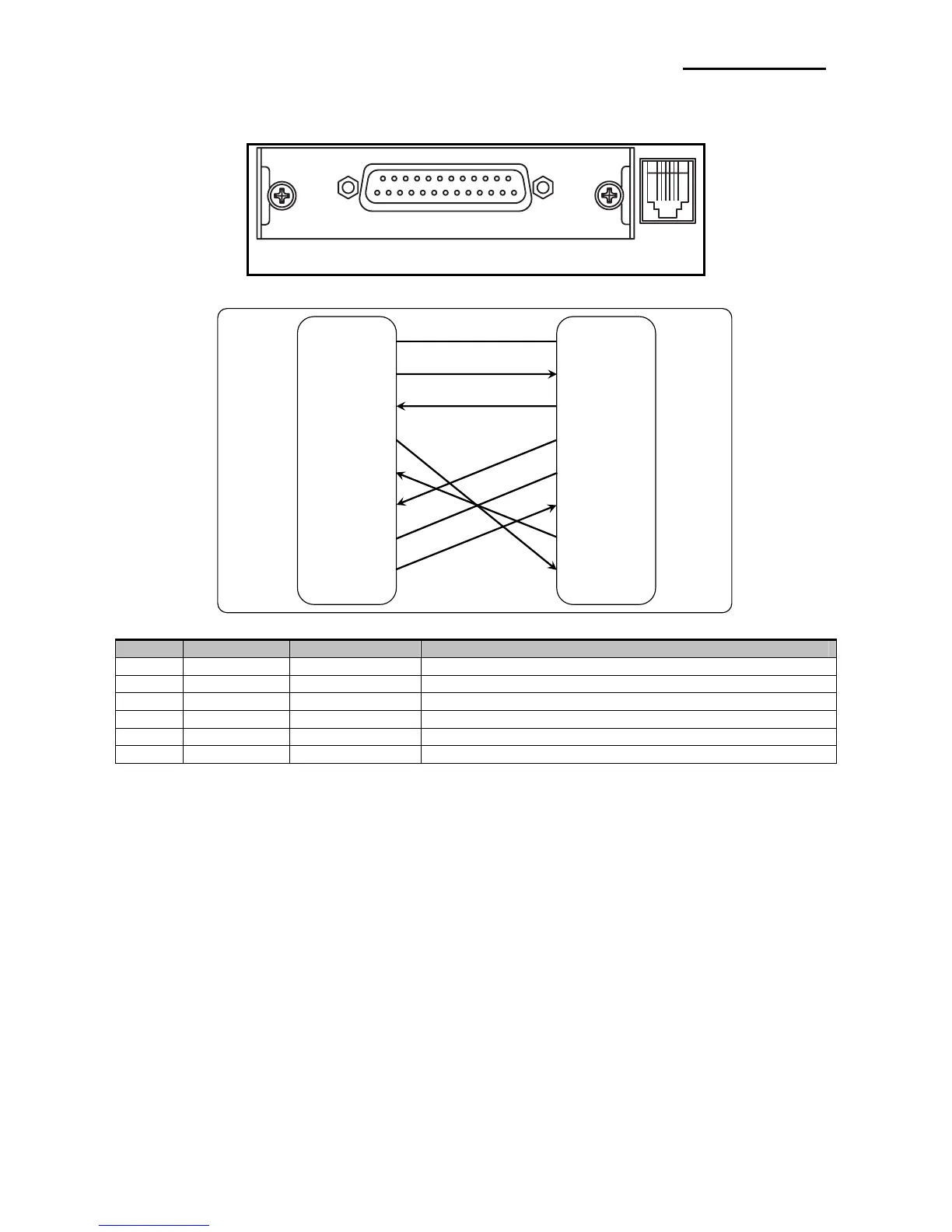

2-2-1 Serial Interface (RS-232C)

IFC-S TYPE

Interface connector

Drawer kick-out

Connector

(F.G) 1

(TXD) 2

(RXD) 3

(RTS) 4

(CTS) 5

(DSR) 6

(S.G) 7

(DTR) 20

1 (F.G)

2 (RXD)

3 (TXD)

4 (DTR)

5 (S.G)

6 (DSR)

7 (RTS)

8 (CTS)

PRINTER

SIDE

(25Pin)

HOST

SIDE

(9Pin)

Pin No. Signal name Direction Function

1 FG - Frame Ground

2 TxD Output Transmit Data

3 RxD Input Receive Data

6 DSR Input Data Set Ready

7 SG - Signal Ground

20 DTR Output Data Terminal Ready
