BIXOLON SRP-Q300 User Manual

SRP-Q300/Q302
Ver. 2.00
- 14 -
2-2 Interface Part Names
• Connect the printer to the host computer using the right interface cable that complies
with the specifications of the interface.

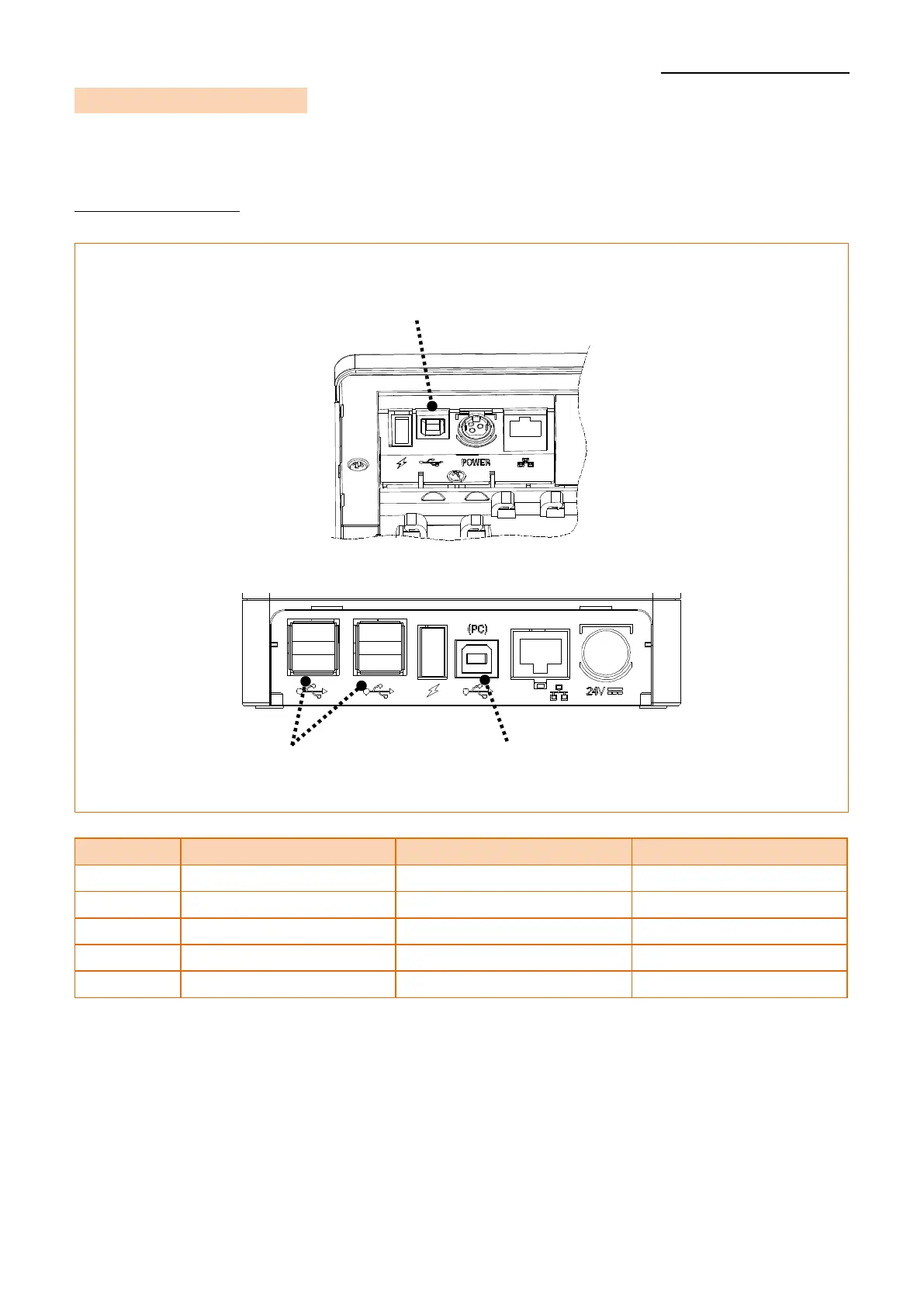

2-2-1 USB (Built-in)
- Printer Set
- B-gate Set
Pin No.
Signal Name
Designation (Color)
Function
Shell
Shield
Drain Cable
Frame Ground
1
VBUS
RED
Host Power
2
D-
WHITE
Data Line (D-)
3
D+
GREEN
Data Line (D+)
4
GND
BLACK
Signal Ground
USB Port
(Device Function)
USB Port
(Device Function)
USB Port
(Host Function)

BIXOLON SRP-Q300 Specifications

General

Type	POS printer
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Product color	Black
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
Autocutter durability	1.5 million cuts
Maximum roll diameter	80 mm
Printing media thickness	0.062 - 0.075 µm
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Wi-Fi	No
USB port	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired

Weight and Dimensions

Width	128 mm
Height	125 mm
