2-2-7 Customer LCD Port

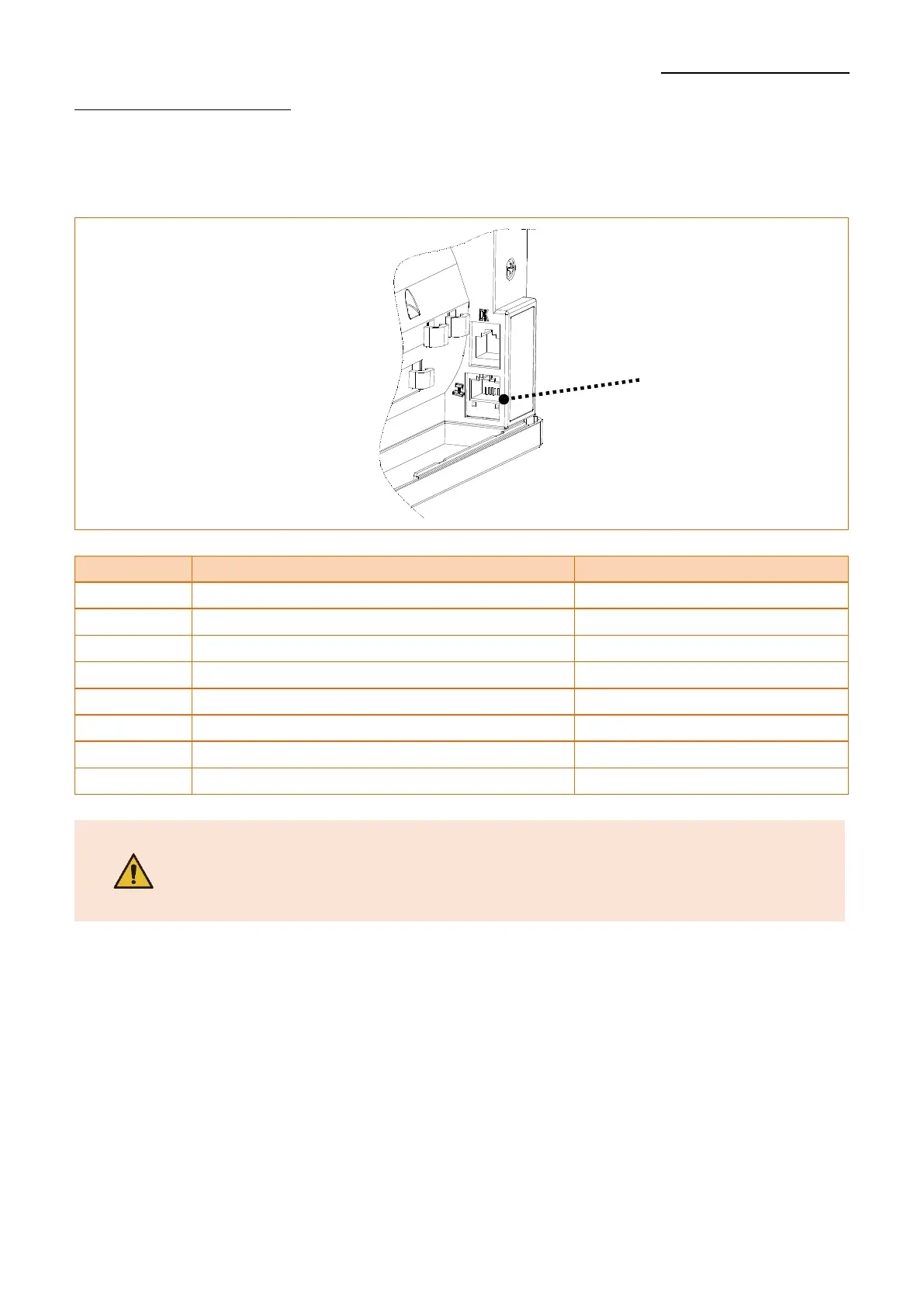

Connect the BIXOLON Customer LCD Display BCD-3000 cable to the LCD Port located at
the rear of the printer.
Pin No.
Signal Name
Direction
1
+5VDC
Output
2
TXD
Output
3
RXD
Input
4
N.C
-
5
Signal Ground
-
6
N.C
-
7
CTS
Input
8
RTS
Output
- The port is designed for BIXOLON Customer LCD Display
BCD-3000 only and other connector cables cannot be used.
- Using a different LCD product or a cable that does not meet
the specs may result in damage to the product.
LCD Port

BIXOLON SRP-Q300 Specifications

General

Type	POS printer
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Product color	Black
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
Autocutter durability	1.5 million cuts
Maximum roll diameter	80 mm
Printing media thickness	0.062 - 0.075 µm
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Wi-Fi	No
USB port	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired

Weight and Dimensions

Width	128 mm
Height	125 mm
