BIXOLON SRP-S320 - Ethernet (Built-In)

SRP-S320
Ver. 2.00
- 14 -
2-2-2 Ethernet (Built-in)
Pin No.
Signal Name
Designation (Color)
Function
1
TD+
WHITE ORANGE
Transmit +
2
TD-
ORANGE
Transmit -
3
CT
WHITE GREEN
Center tap
4
NC
BLUE
-
5
NC
WHITE BLUE
-
6
NC
GREEN
-
7
RD+
WHITE BROWN
Receive +
8
RD-
BROWN
Receive -
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
- Information such as IP and Mac can be found by operating the function
key.
- Refer to the utility and network connection manual for Interface
connection information. (www.bixolon.com)

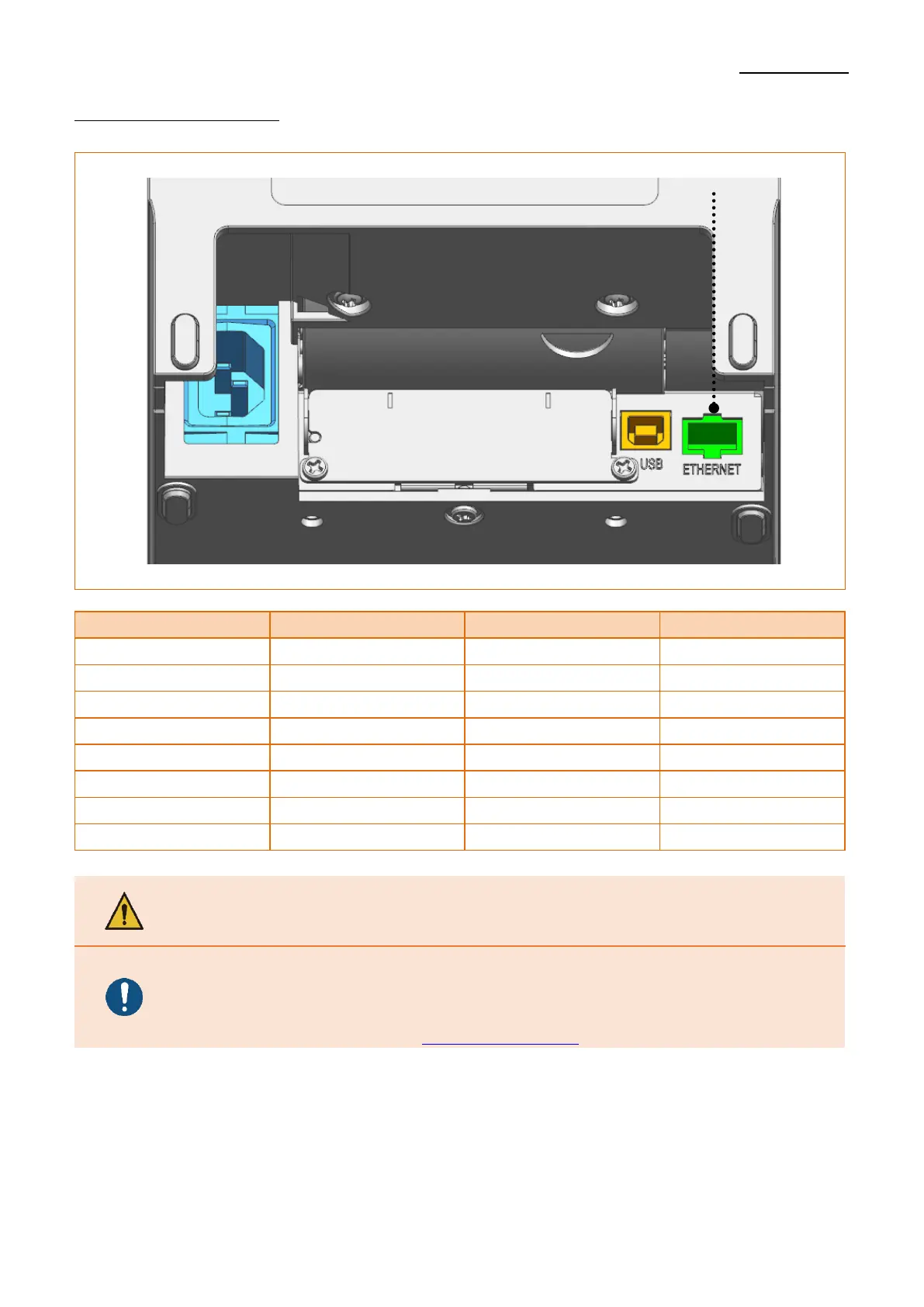

Ethernet Port
