BIXOLON SRP-S320 - B-Gate Interface Card

SRP-S320
Ver. 2.00
- 18 -

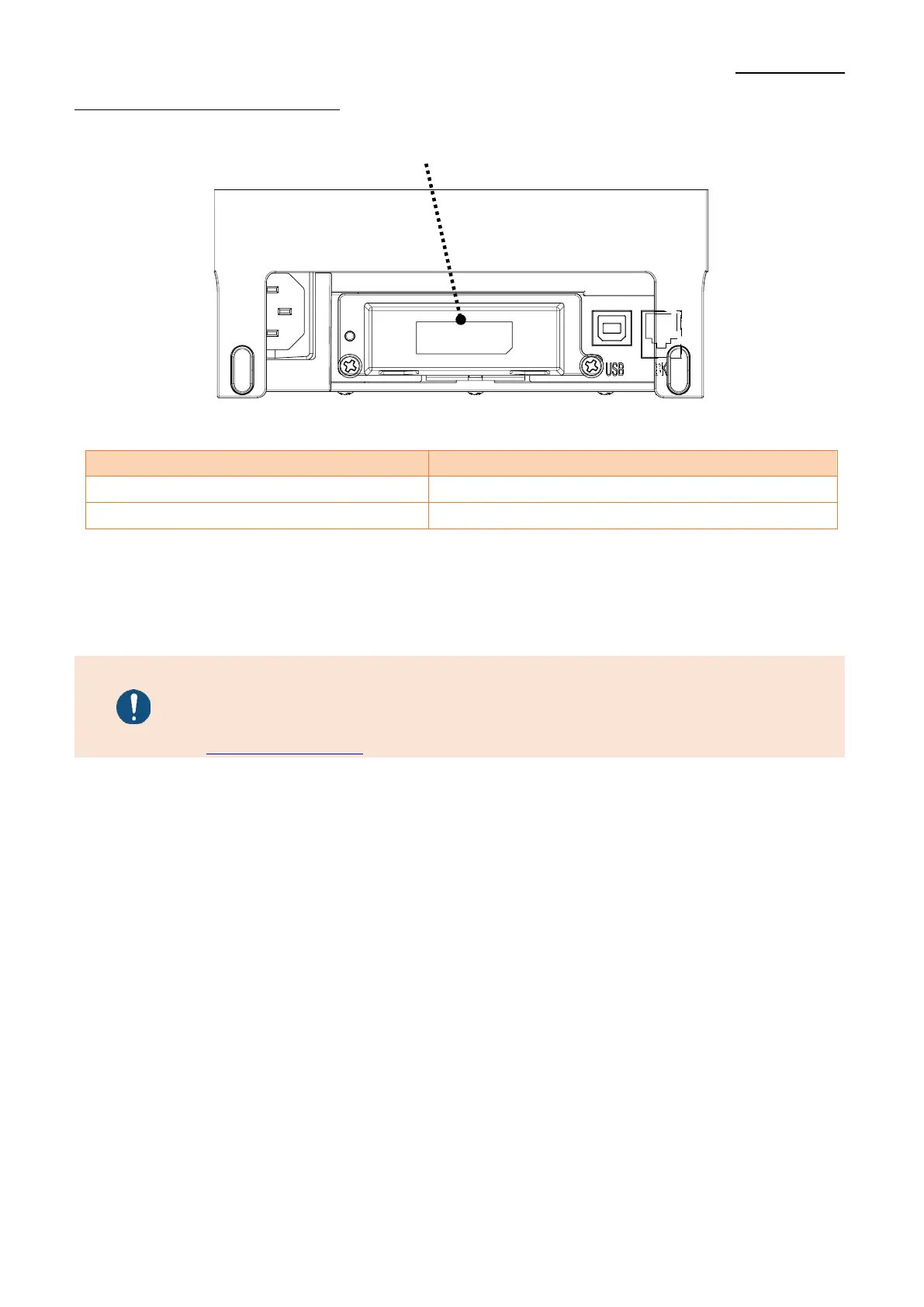

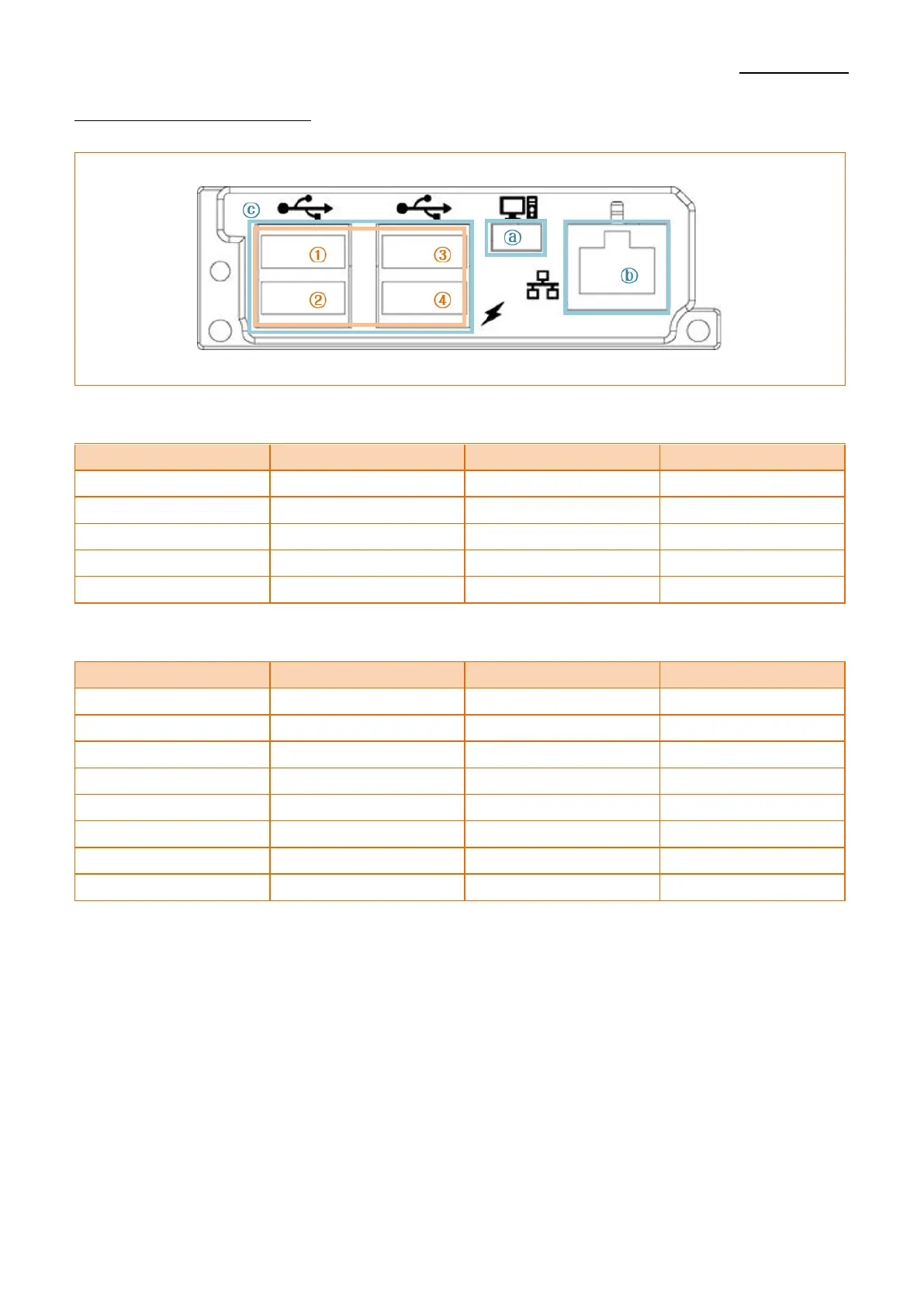

2-2-6 B-gate Interface Card
USB A type: ①②③④
Pin No.
Signal Name
Designation (Color)
Function
Shell
Shield
Drain Cable
Frame Ground
1
VBUS
RED
Host Power
2
D-
WHITE
Data Line (D-)
3
D+
GREEN
Data Line (D+)
4
GND
BLACK
Signal Ground
Ethernet: ⓑ
Pin No.
Signal Name
Designation (Color)
Function
1
TD+
WHITE ORANGE
Transmit +
2
TD-
ORANGE
Transmit -
3
CT
WHITE GREEN
Center tap
4
NC
BLUE
-
5
NC
WHITE BLUE
-
6
NC
GREEN
-
7
RD+
WHITE BROWN
Receive +
8
RD-
BROWN
Receive -
