BK Precision 1687B - Using 5 kΩ Variable Resistors for Control

19
5. Switch on the power supply.
6. Check the output voltage range of the power supply by varying the external
voltage source for voltage adjustment from 0 to 5 V.
7. Short circuit the main output with an 8AWG gauge wire and check the
display for CC setting by varying the external voltage source for current
adjustment from 0 to 5 V.
8. Switch off the power supply.
5.1.2 Using Two 5 kΩ Variable Resistors
1. Make sure the load is disconnected and the power supply is OFF.

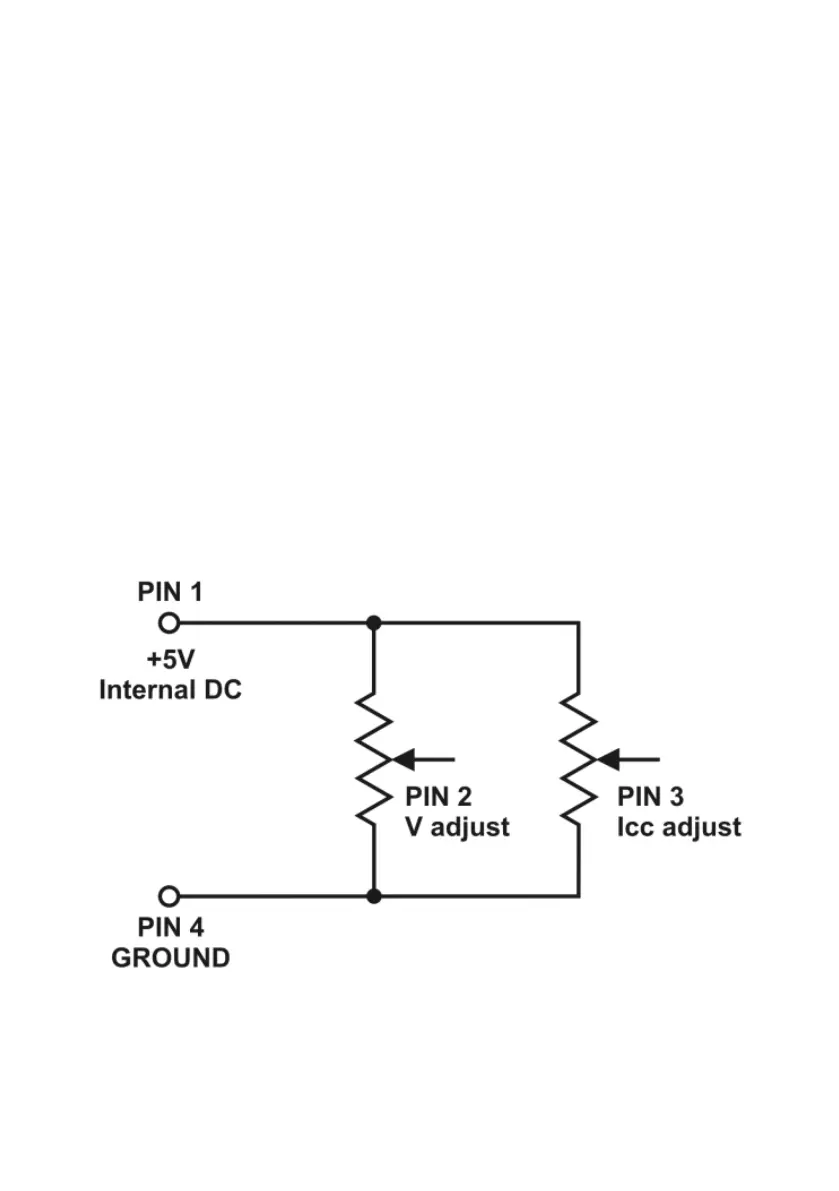

2. Prepare two 5 kΩ variable resistors and connect wires from pins 1, 2, 3, and
4 as shown in
Figure 7.
Figure 6 - Variable 5 kΩ Resistors Setup
