4080 series Function & Arbitrary/Function Generators –Instruction Manual
12
**: External totalize mode: Press this key to reset and resume event counter
*** models 4084AWG and 4086AWG only
Function/Mode Keys:
Key name
Main Function
Secondary
Function
Secondary
Function for
Counter Mode
Unit Entry
Freq./Period
Toggle between
Frequency &
Period.
Enable Sine Wave
Not Available
Not Available
Ampl./Pulse
width
Amplitude Select.
Enable Square
Wave.
Not Available
Not Available
FSK/PSK
FSK/PSK
Function Select
Enable Triangle
Wave
Not Available
Not Available
Menu
Menu Selection
Enable positive
ramp
Not Available
Not Available
FM
Enable FM mode
Enter Storage
menu
Attenuation
Selection
ms, mVpp
AM
Enable AM mode
Enter Recall menu
Low Pass Select
MHz, Vrms
Sweep
Enable Sweep
mode
Enter Counter
Mode
Freq. Meas./
Totalize Enable
kHz, mVrms
Burst
Enable Burst
mode
DC Offset Select
Gate Select
Hz, dBm
Other Keys:
Key Name
Main Function
Other Function
Output
Main OUTPUT signal On/Off
Generate single trigger in sweep and
burst mode
Shift
Select secondary function
Enter units in s, Vpp, N

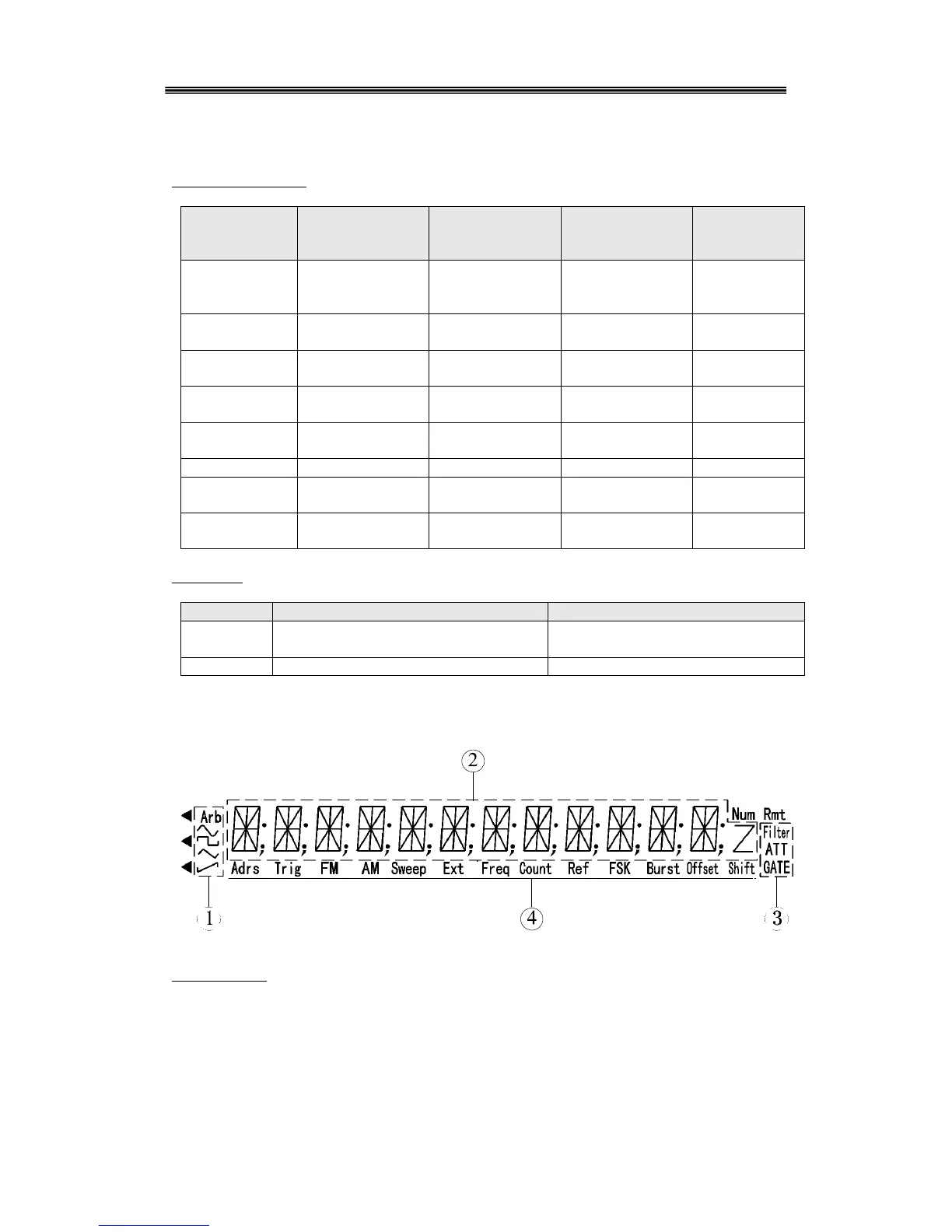

3.1.2 Display Annunciators:
Display areas:
① Waveform Indication
② Main Alphanumeric Display
③ Frequency Measurement/Totalize Settings
④ Instrument states
