6. USER PROGRAMMABLE ARBITRARY WAVEFORM
MODULE
Product Overview
In addition to the 27 build-in waveforms, models 4084AWG and 4086AWG also provide the
capability to generate and store up to 8 user-defined waveforms in non-volatile memory.

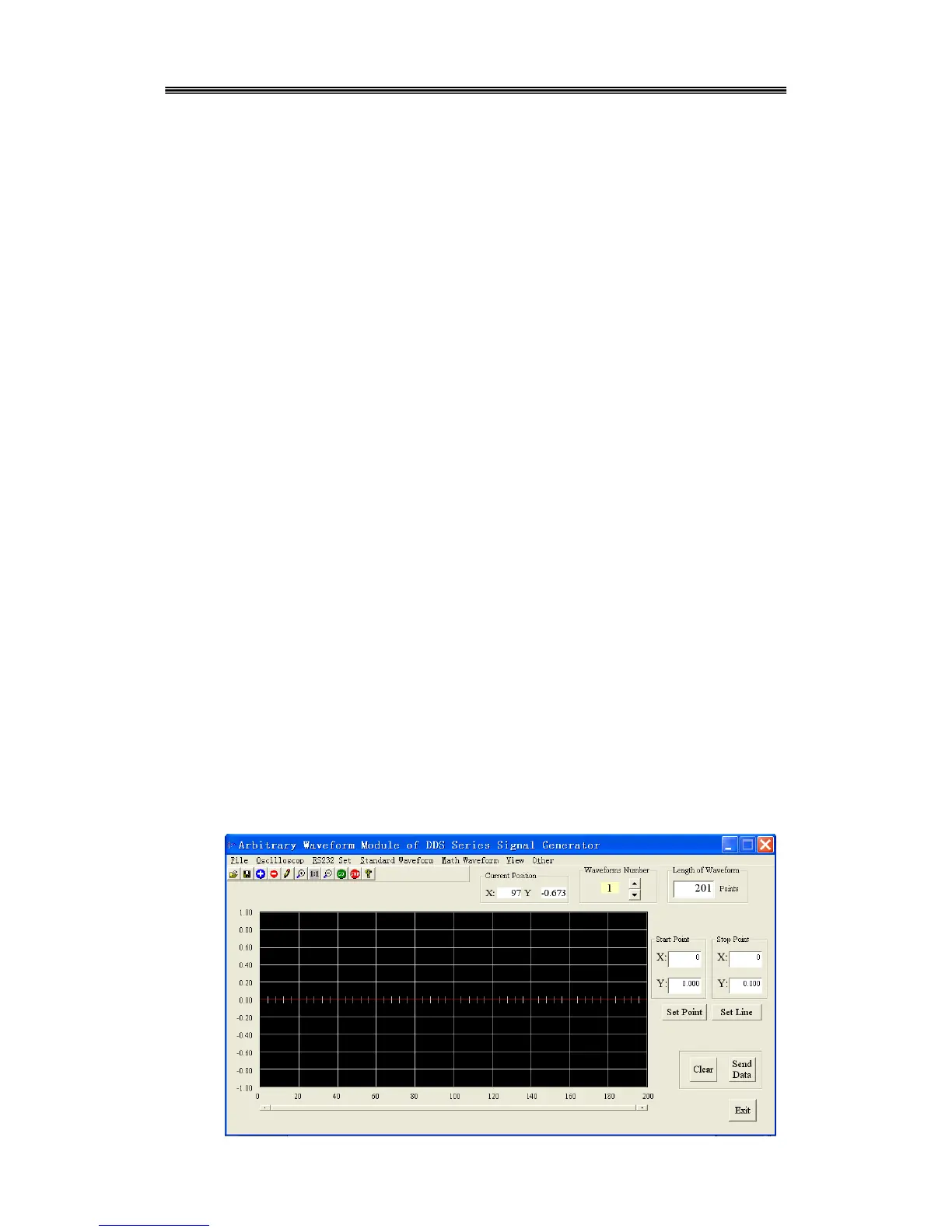

This Windows-based software tool offers a graphical user interface that you can use to create, edit,
and transfer custom waveforms to the internal memory of the 4084AWG or 4086AWG
Function/Arbitrary Generator.
Waveforms can be created in several ways: Users can draw new waveforms with a mouse, edit one
of the predefined waveforms, read in waveform parameters from a text file or download waveforms
from a TEKTRONIX
®
digital storage oscilloscope. Once completed, the waveform can be
transmitted to the generator and stored in non-volatile memory.
Software Installation
This section describes how to install the Arbitrary Waveform Creation Software using the Install
Shield Wizard.
1) Insert the Installation CD into the CD-ROM drive.
2) Locate setup.exe on the CD-ROM and double-click it.
3) Follow the instructions given by the Install Shield wizard.
Launching the Software
To start the Software you can do one of the following:
a) Run the application from the Windows Start menu.
Select Start> Programs> BK_Precision>4080 Series Arbitrary Waveform
Software\Arb_Process.exe
b) Go to the folder where you have installed the Arbitrary Waveform Creation Software and
double-click on Arb_process.exe.
To exit the application, select File > Exit from the pull down menu
