88
be calibrated based on the test frequency and settings
selected prior to entering the calibration mode.

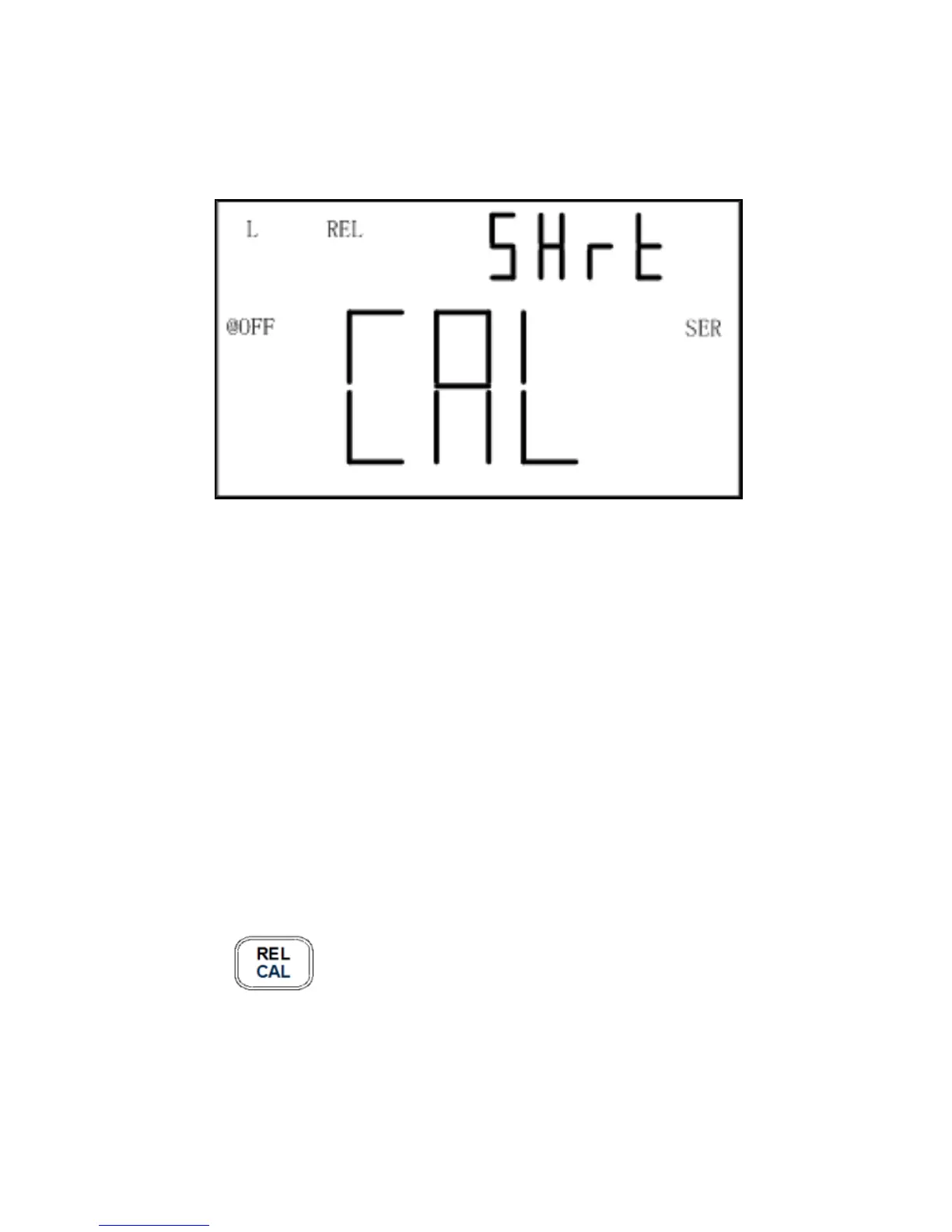

Figure 8 - Short Calibration
Quick Procedure
Below is an example of steps to follow to do both
open and short calibration.
1. Select the primary function mode for
measurement (i.e. L/C/R/Z).
2. Select the test frequency for measurement.
3. Select the measurement mode (i.e. Series or
Parallel)
4. Once all settings are configured, hold down
button for 2 seconds to enter into
calibration mode.
5. First, do open calibration. Follow instructions
under “Open Calibration” section.
