INSTALLATION
21

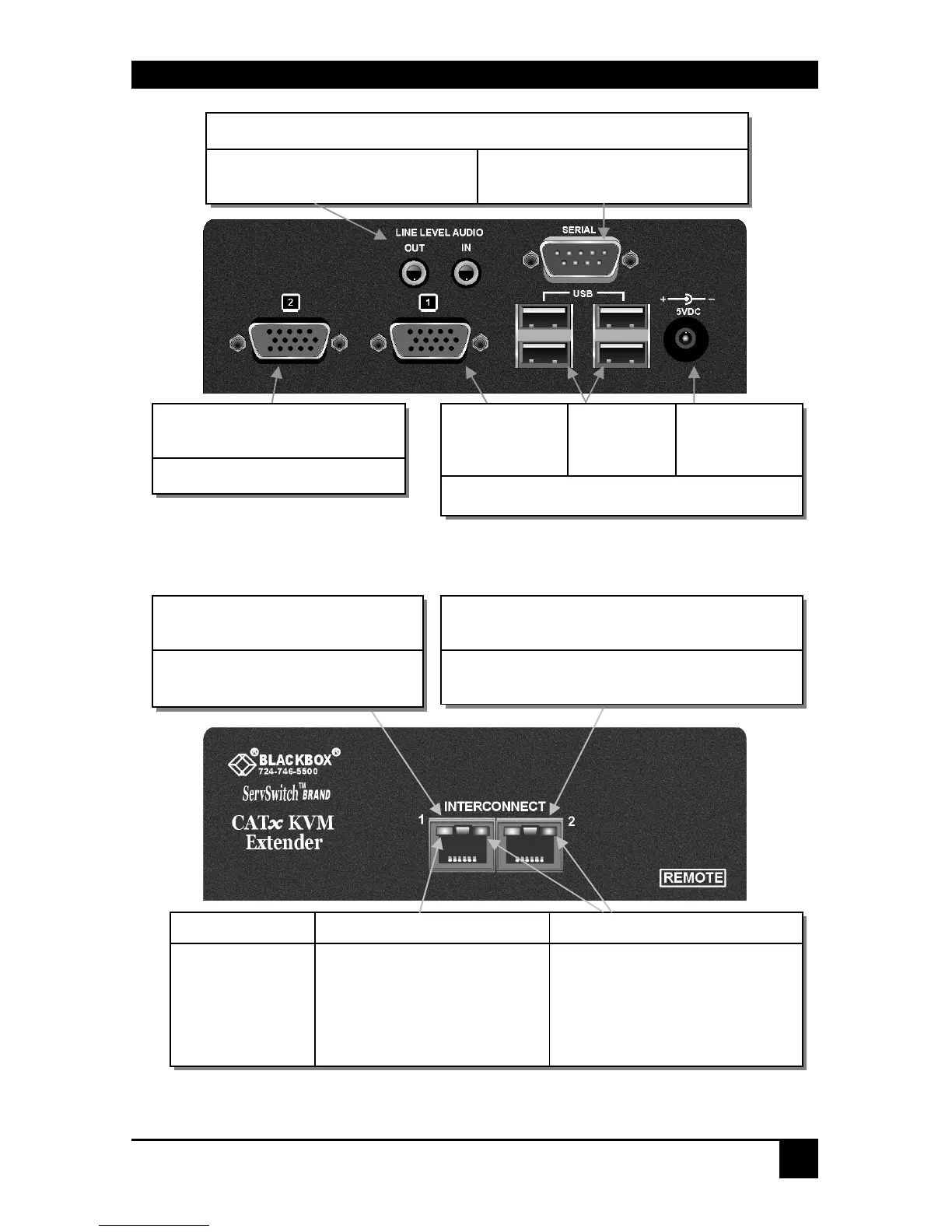

Figure 2 Remote Unit - rear view
Status Yellow LED* Green LED
OFF
ON
FLASHING
No data transfer with Local
Unit
Remote Unit in Command
Mode
Data transfer with Local Unit
Remote Unit not powered.
Remote Unit powered but no
video found
Remote Unit powered & video
sync found
* Yellow LED active on primary INTERCONNECT socket (Channel 1) only
Figure 3 Remote Unit - front view
Connect to speakers and
microphone.
Connect to serial device, such as
a touch screen.
ACU6022A and ACU6222A only
Connect
supplied 5V
PSU.
Connect to second monitor.
Connect to
primary
monitor.
Connect to
USB
devices.
All Remote Units
ACU6201A, ACU6222A only
INTERCONNECT 1 – carries
primary video, audio and data.
INTERCONNECT 2 – carries secondary video
signal.
All Remote Units
ACU6201A, ACU6222A only
