Appendix A: Example Application
This section illustrates a non-standard application using CATx KVM Extender units:
• Two remote users sharing access to the CPU.
For more specific information about this, or any other complex applications, please discuss
suitable extension architecture with your Technical Support.

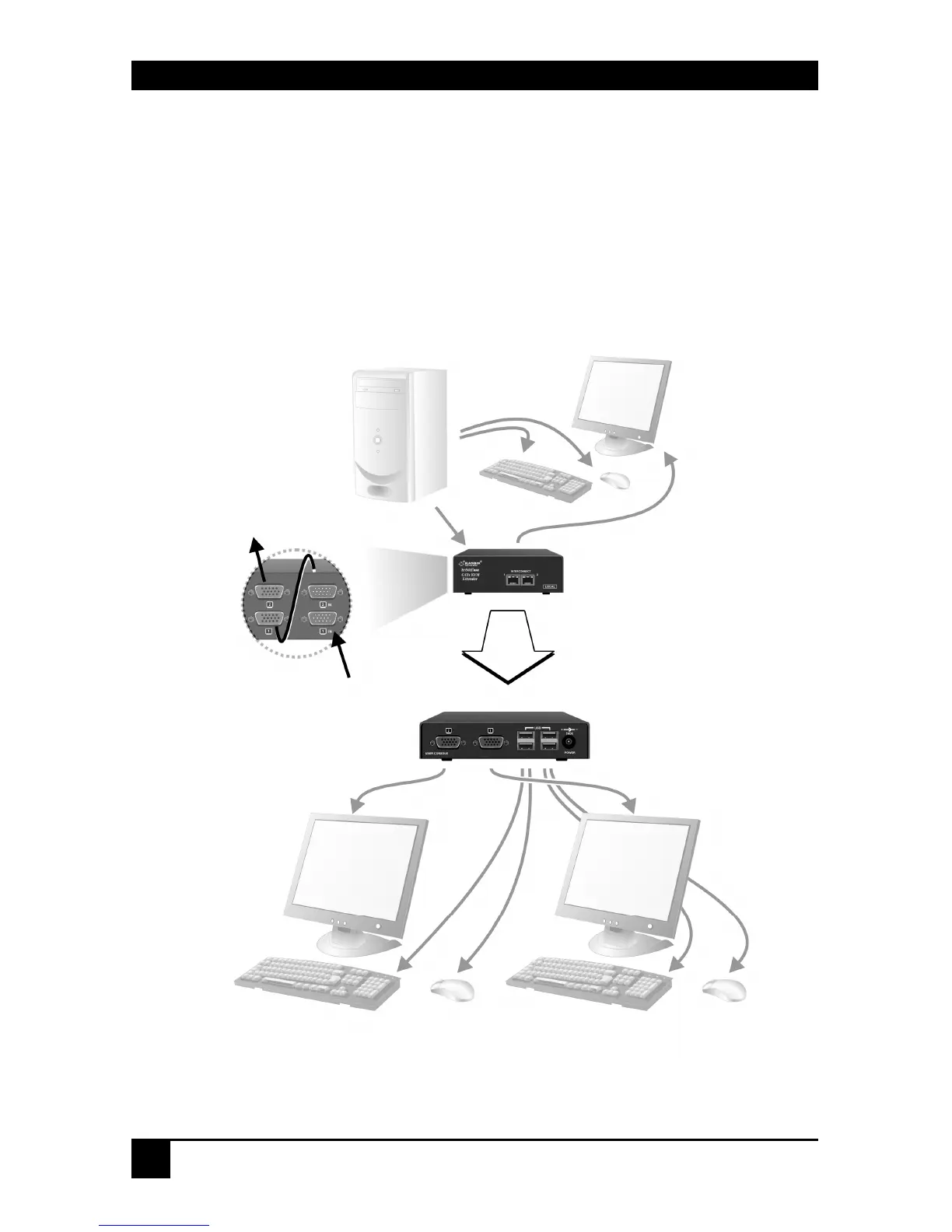

Figure 9 Two users at Remote Unit utilizing a dual-head extender
Local Console
Video in
Remote Consoles
Remote Unit
KVM/HID extension over CATx
cables up to 1000ft (300m).
CPU
Local Unit
Local unit
connections
Local Video out
Video loop:
Channel 1 out
to Channel 2 in
