Black Box ServSwitch ACU6001A User Manual

APPENDIX B: RMK19U-X3 MOUNTING KIT
43
Appendix B: RMK19U-X3 Mounting Kit
Up to three extender units, in any combination, can be mounted in a 19” rack using the
RMK19U-X3 mounting kit.
The kit contains one rack plate and M3 countersunk mounting screws.
To mount a unit:
1. Remove the feet from the extender unit.
2. Align the holes on the base plate with the vacant screw holes on the base of the extender
unit.
3. Fasten the base of the unit to the plate of the mounting kit using the supplied screws.

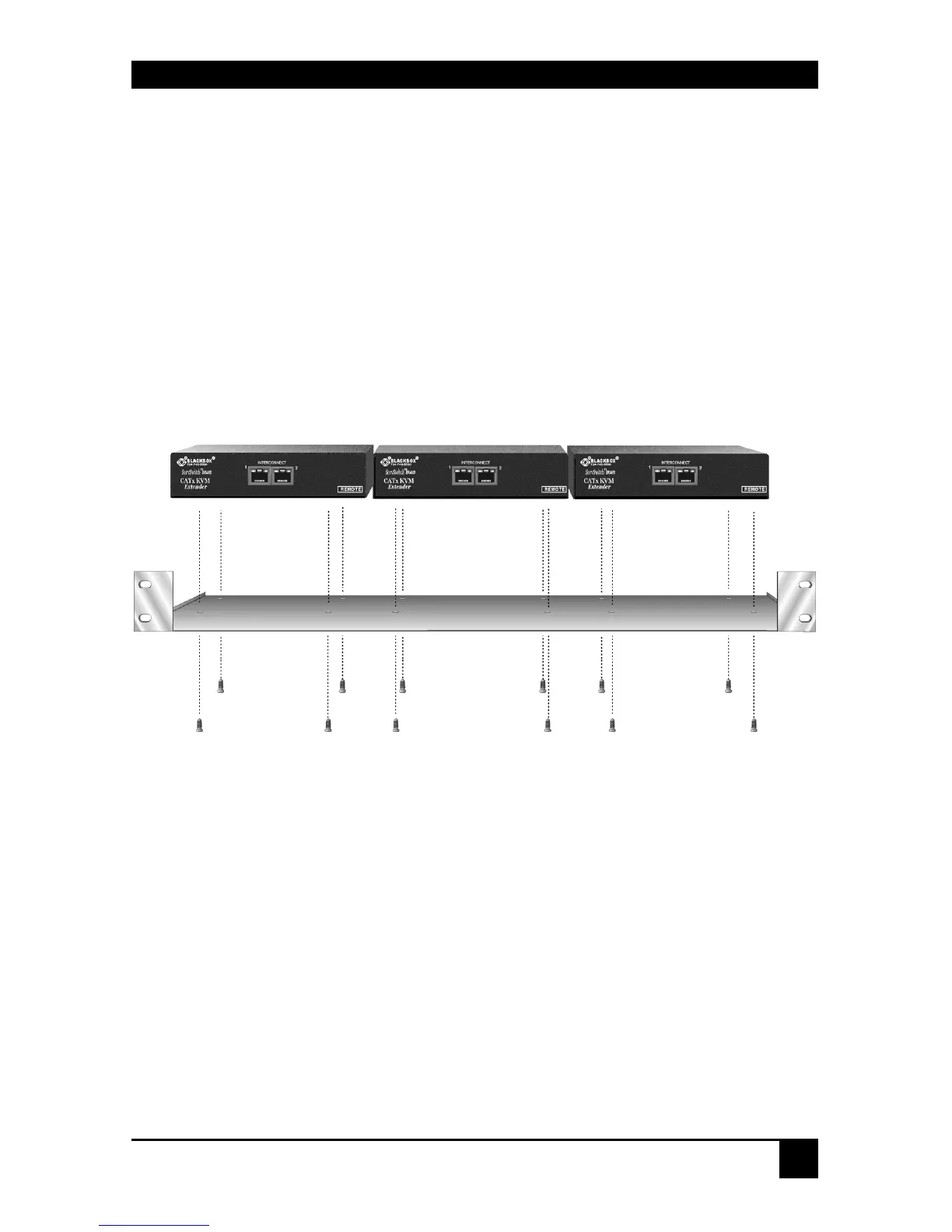

Figure 10 RMK19U-X3 Mounting Kit
