SERVSWITCH™ BRAND CATX KVM EXTENDER FAMILY
24
Status Yellow LED* Green LED
OFF
ON
FLASHING
No data transfer with Remote Unit
Local Unit in Command Mode
Data transfer with Remote Unit
Local Unit not powered.
Local Unit powered
* Yellow LED active on primary INTERCONNECT socket (Channel 1) only

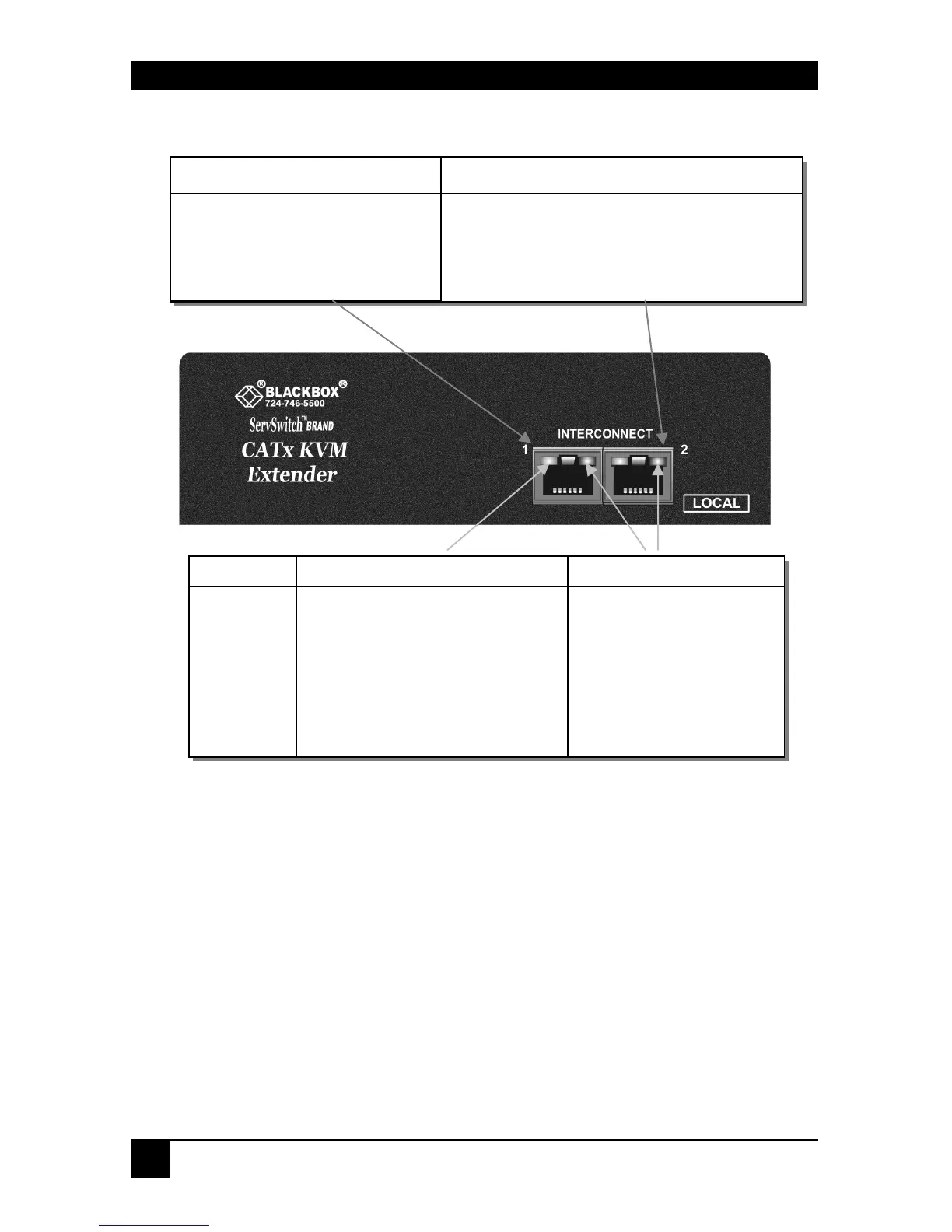

Figure 5 Local Unit - front view
INTERCONNECT 1 – carries
primary video, audio and data
signals. Connect to CATx cable
from INTERCONNECT 1 port on
Remote Unit.
INTERCONNECT 2 – carries secondary video
signals. Connect to CATx cable from
INTERCONNECT 2 port on Remote Unit.
ACU6201A and ACU6222A only
All Models
