Black Stone 2379 - Tools Needed; Electric Requirements

BLACKSTONEPRODUCTS.COM
ENGLISH
| OWNER’S MANUALASSEMBLY GUIDE
ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
⚠ CAUTION
Sharp edges. Wear gloves while assembling.
NOT INCLUDED (OPTIONAL):
Two (2) D batteries
ELECTRIC REQUIREMENTS:
120V 60Hz
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)

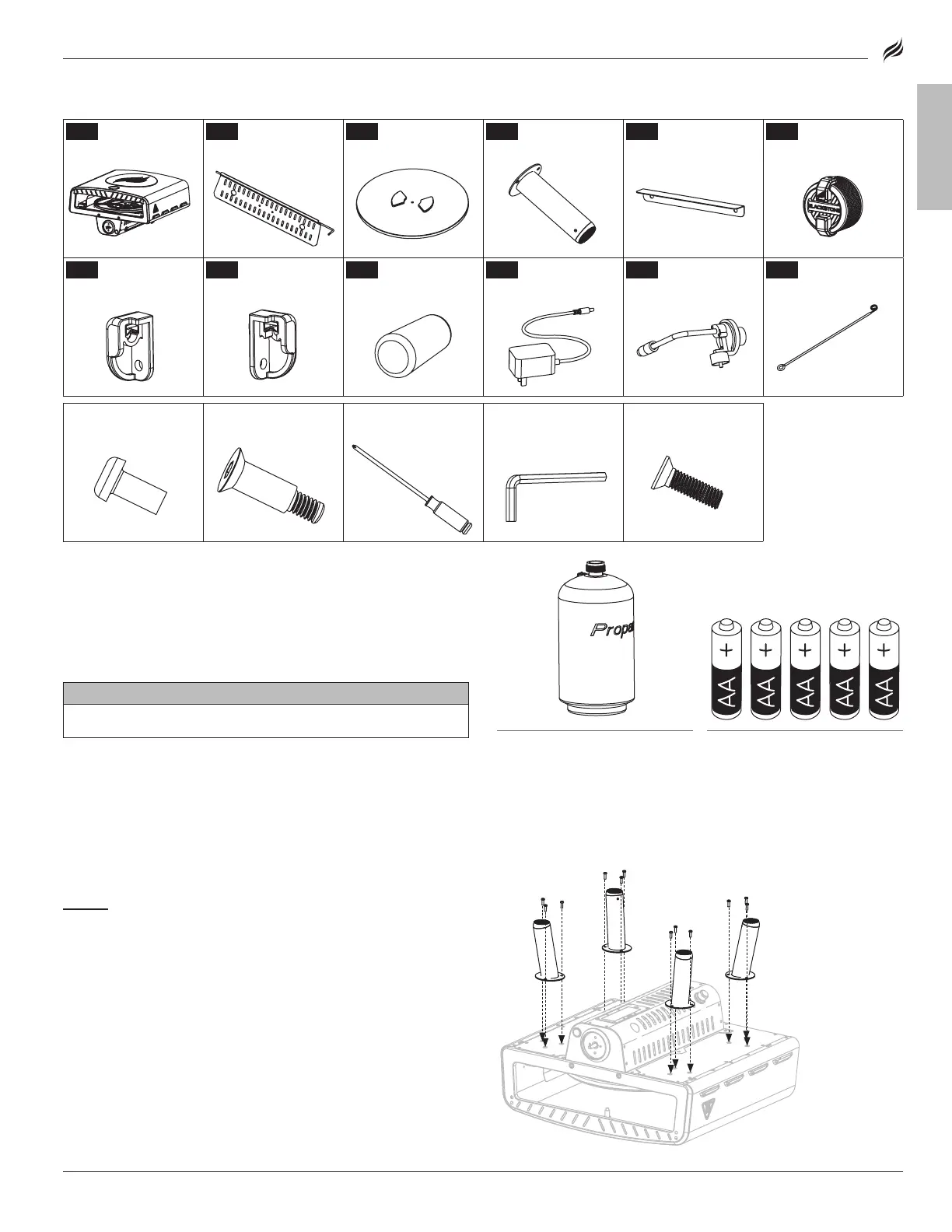

MODEL: 2379
1
Oven body
(1 piece)
2
Oven door
(1 piece)
3
Pizza stone
(1 piece)
4
Legs (4 pieces)
5
Bale panel
(1 piece)
6
Control knob
(1 piece)
7
Door shaft seat
(L) (1 piece)
8
Door shaft seat
(R) (1 piece)
9
Door handle
(1 piece)
10
Power cord
(1 piece)
11
Regulator
(1 piece)
12
Matchstick
holder (1 piece)
[a.] M4x10 screws
(14 pieces)
[b.] M6x24
screw (1 piece)
[c.] Phillips head
screwdriver (1 piece)
[d.] Hexagonal
wrench (1 piece)
[e.] M4x12 screws
(2 pieces)
STEP 01
Set the pizza oven on its back.
Use twelve (12) M4x10 screws [a.] to attach the four (4) legs to the
bottom of the pizza oven.

