Blackmagicdesign Micro Videohub User Manual

Using Software Control Panels
54
If the Input, Output and Remote connections have not yet been labeled in Main Router Control view, then
the source pushbuttons will appear as Input 1 to Input 55 and the destination pushbuttons will appear as
Output 1 to Output 11. These inputs and outputs correspond to the connector numbers on the Videohub.
If the Input, Output and Remote connections have already been labeled in Main Router Control view, their
names will appear under each of the respective pushbuttons in place of the connector numbers.
Pushbutton views reduce the number of visible connections to only those that you want to see, in contrast
to Main Router Control view which displays all connections simultaneously.

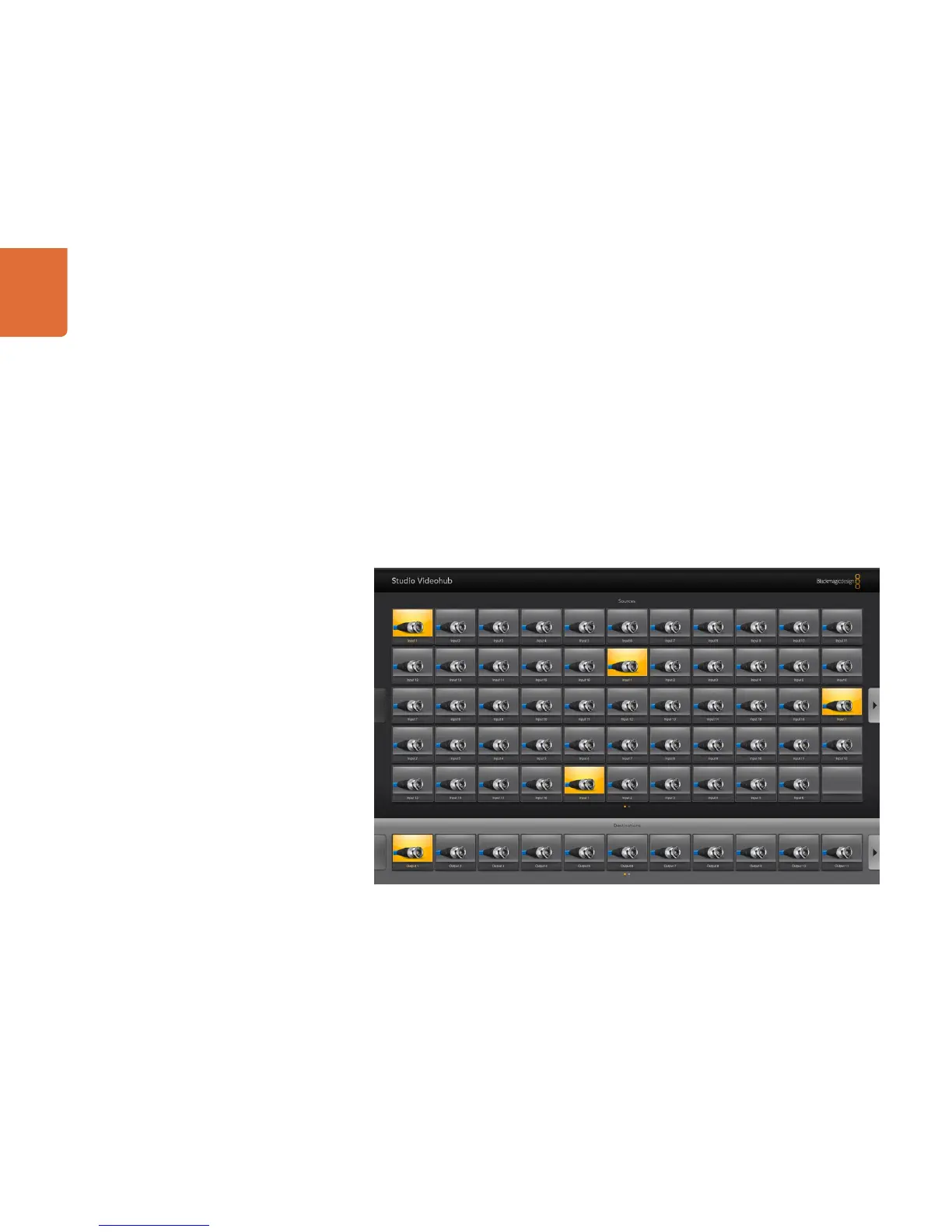

On smaller Videohubs, you may find that there are many more source pushbuttons, in a Full Screen
Pushbutton view, than there are SDI input connectors on the Videohub itself. For example when using
Studio Videohub with the Full Screen 24” Pushbutton view, the Sources panel will show Input 1 to Input 16
repeated several times until the pushbuttons fill the Sources panel.
