Using Blackmagic MultiView 16
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOLO
SET
SRC
VIEW
MENU
Blackmagic MultiView 16
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Front Control Panel
When first powering your Blackmagic MultiView 16 you'll see the 'home' screen displayed on the built
in LCD. The home screen is the default display showing a convenient overview of settings, such as:
Multi view output frame rate - Located in the upper left corner, this displays the selected
frame rate for your Ultra HD SDI multi view output.
Audio input - This information is located next to the multi view output frame rate and
displays which SDI input is being used for embedded audio in the HDMI and SDI multi view
output signal.
Multi view layout - This displays your selected multi view layout.
Control Panel Buttons
The illuminated buttons on Blackmagic MultiView 16's built in control panel are used to change
settings and access features. See the 'settings' section for more information on how to apply settings
on Blackmagic MultiView 16.
Solo Button
You can monitor a view in full screen by pressing the 'solo' button. Now press any view button on the
control panel to monitor that view in full screen mode. Press solo again to return to the multi view layout.
Menu Button
Press the 'menu' button to open the settings screen. After confirming a setting, press the menu
button again to return to the 'home' screen.
Set Button
Press the 'set' button to select a setting to adjust. After changing a setting, press the set button
again to confirm the change.
Source and View buttons
These buttons let you select which input source you want to display in a desired view. When navigating
settings menus, the source and view buttons can also be used to move up and down through setting options.
Rotary Knob
Use the rotary knob to scroll through settings, or to select menu items on the settings screen. If you’re
unhappy with a selection, you can return to a previously selected setting by pressing the rotary knob.
Turn the rotary knob clockwise or counter clockwise to select between two options in a menu. Settings
can also be turned on or off by pressing the rotary knob.
Using Blackmagic MultiView 16

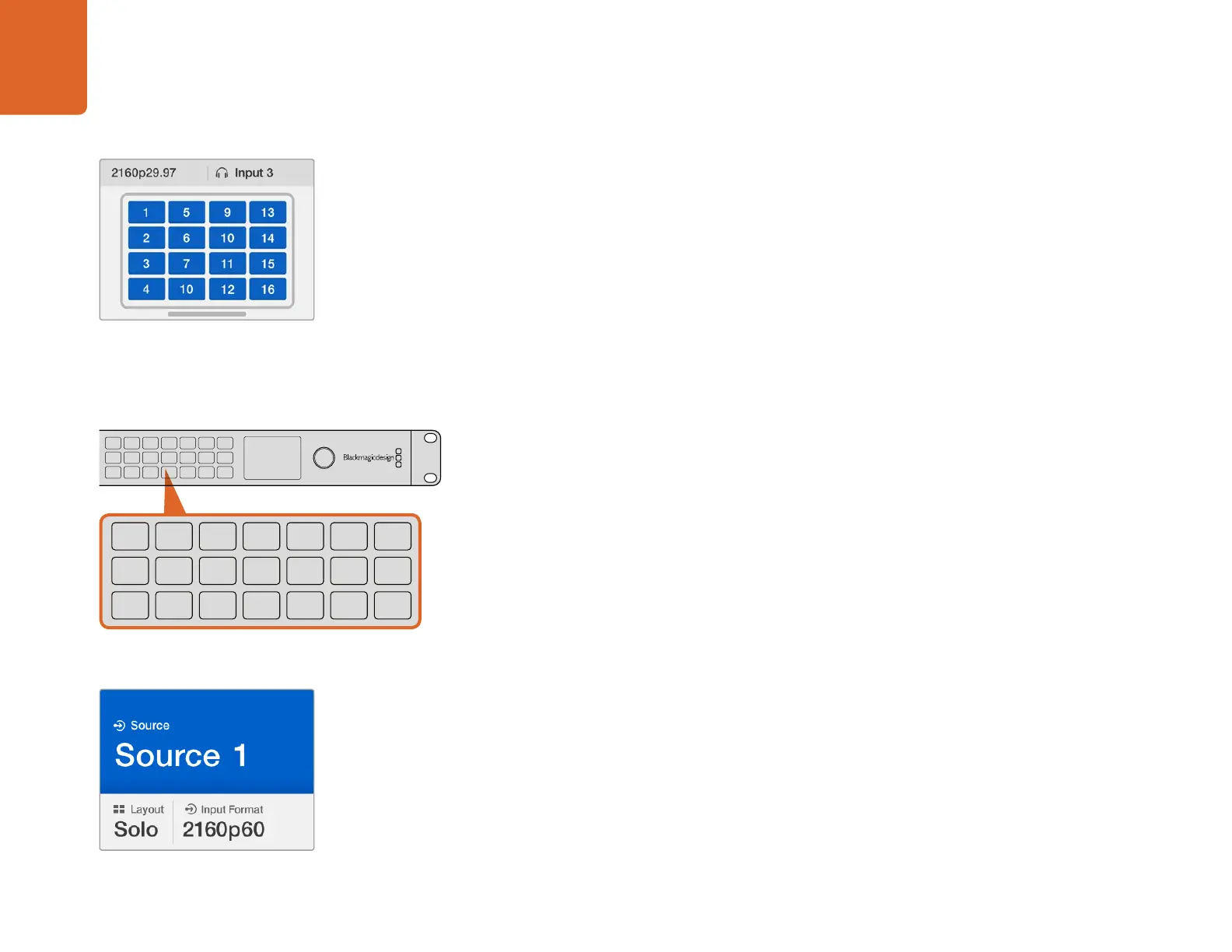

The 'home' screen is the default display on Blackmagic
MultiView 16's control panel LCD. This screen displays
your selected multi view layout, the frame rate for the
multi view SDI output, and the selected SDI input used
to embed audio into the multi view output.
The solo feature lets you monitor a view in full screen mode.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOLO
SET
SRC
VIEW
MENU
Blackmagic MultiView 16
ETHERNET SD/HD/3G/6G-SDI IN
REF IN
LOOP OUT
IN
HDMI OUT 6G-SDI OUT HD-SDI OUT
RS-422
CNTRL
USB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Blackmagic MultiView 16's front control panel features
illuminated control buttons so you can adjust settings.
