Installation
15
Hardware: Tally port pin connections
It is not necessary to connect the tally port of SmartView Duo and you can skip this section if you do not
intend to use the tally feature.
Each SmartView Duo screen features independent tally borders in red, green or blue which can be used to
indicate the status of a video signal such as on-air, preview or recording.
The 9-pin D-sub tally port on SmartView Duo accepts contact closure signals from switchers and automation
systems. Please refer to the accompanying SmartView Duo tally pin connections diagram for information
about wiring the tally port for use with your switcher or automation system.

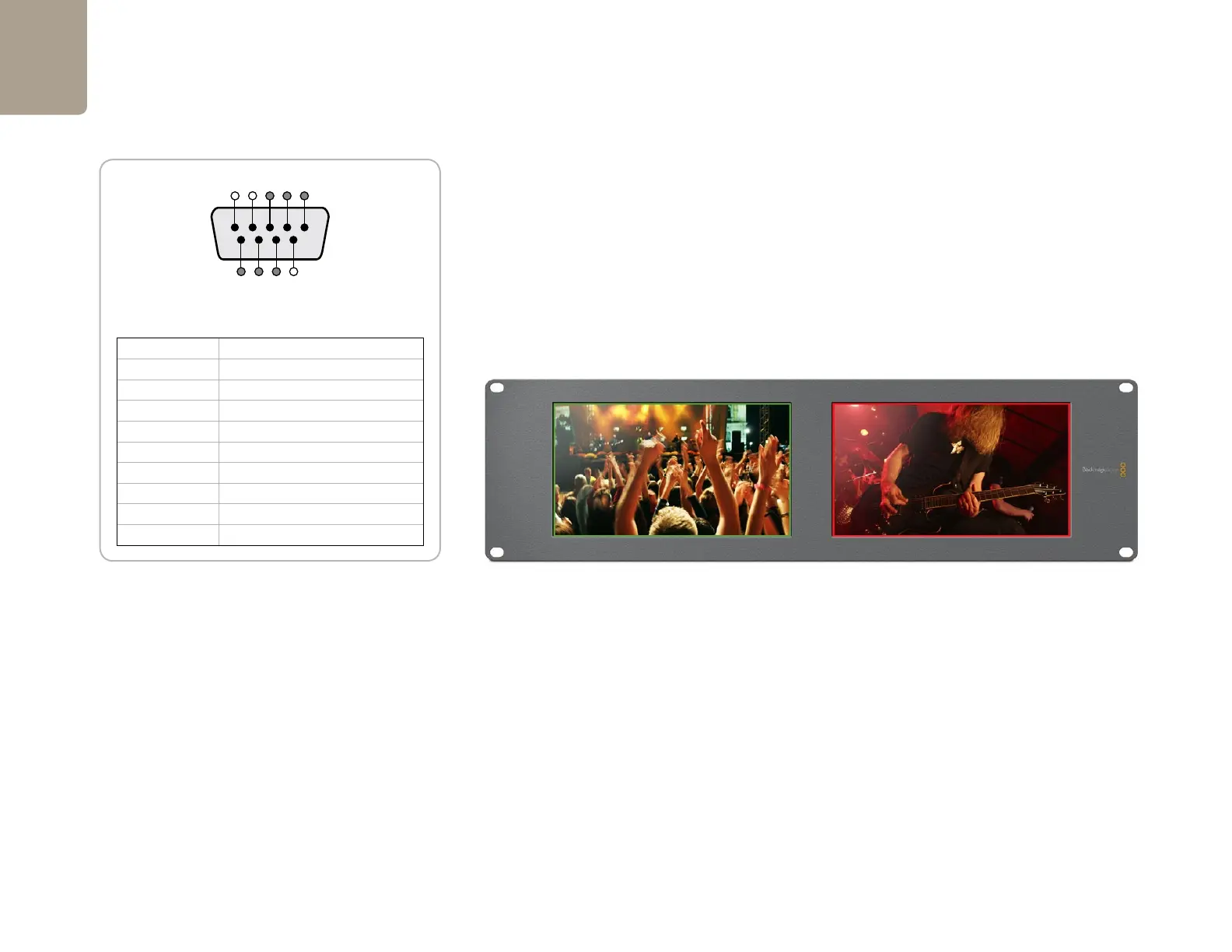

SmartView Duo tally pin connections.
Pin Function
1 Monitor 1 Red
2 Monitor 1 Green
3 Monitor 1 Blue
4 Ground
5 Ground
6 Ground
7 Monitor 2 Red
8 Monitor 2 Green
9 Monitor 2 Blue
SmartView Duo tally port
5 4 3 2 1
9 8 7 6
SmartView Duo showing green and red tally borders
