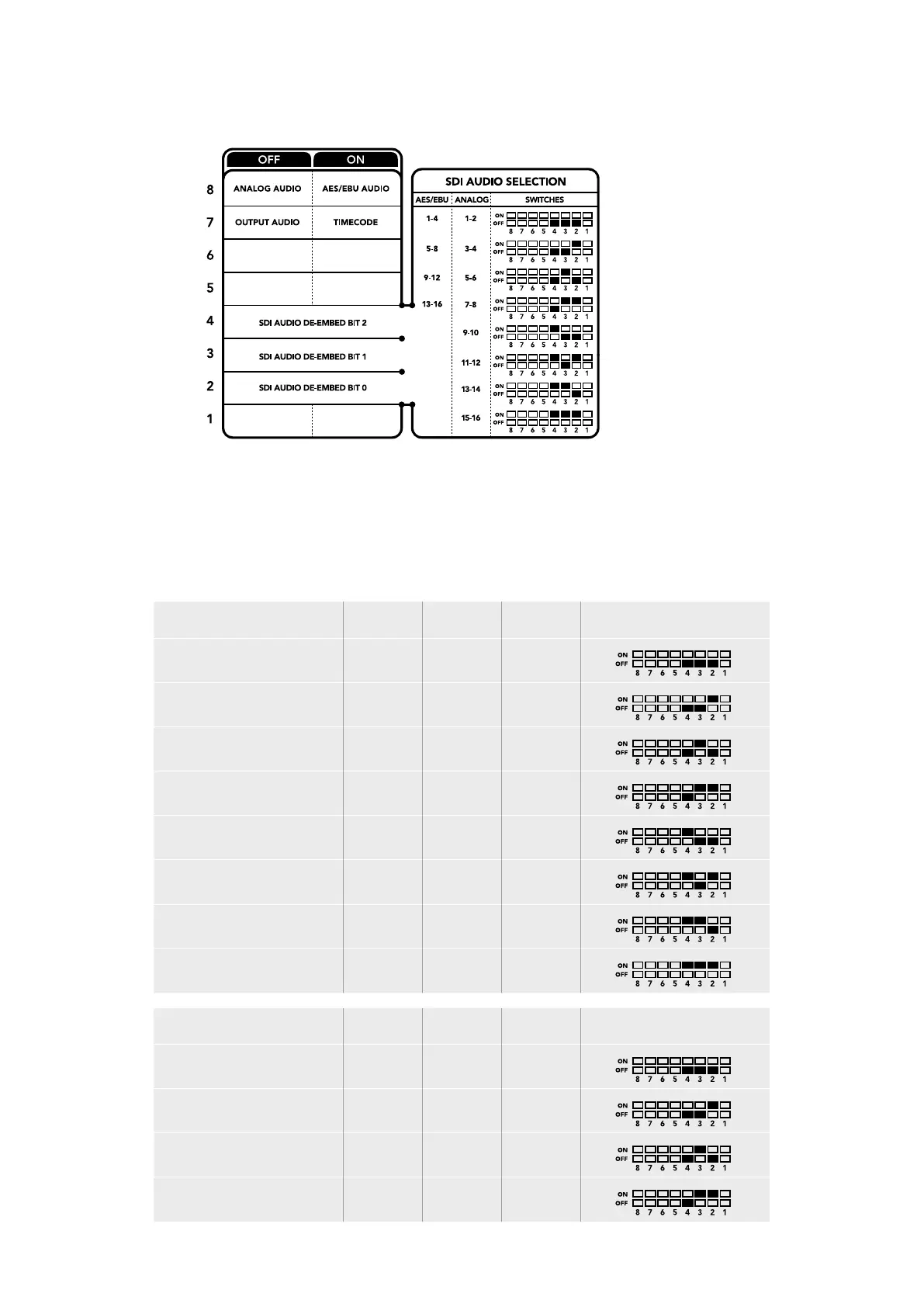

The switch legend on the base of your converter gives you all
the information you need to change conversion settings.
SDI Audio Selection Table
By using the following combinations of switch settings, you can select which SDI audio channels
to embed into your Teranex Mini - SDI to HDMI 12G’s output signal.
Analog Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram
1 and 2 OFF OFF OFF
3 and 4 OFF OFF ON
5 and 6 OFF ON OFF
7 and 8 OFF ON OFF
9 and 10 ON OFF OFF
11 and 12 ON OFF ON
13 and 14 ON ON OFF
15 and 16 ON ON ON
AES/EBU Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram
1-4 OFF OFF OFF
5-8 OFF OFF ON
9-12 OFF ON OFF
13-16 OFF ON ON
26Teranex Mini – SDI to HDMI 12G
