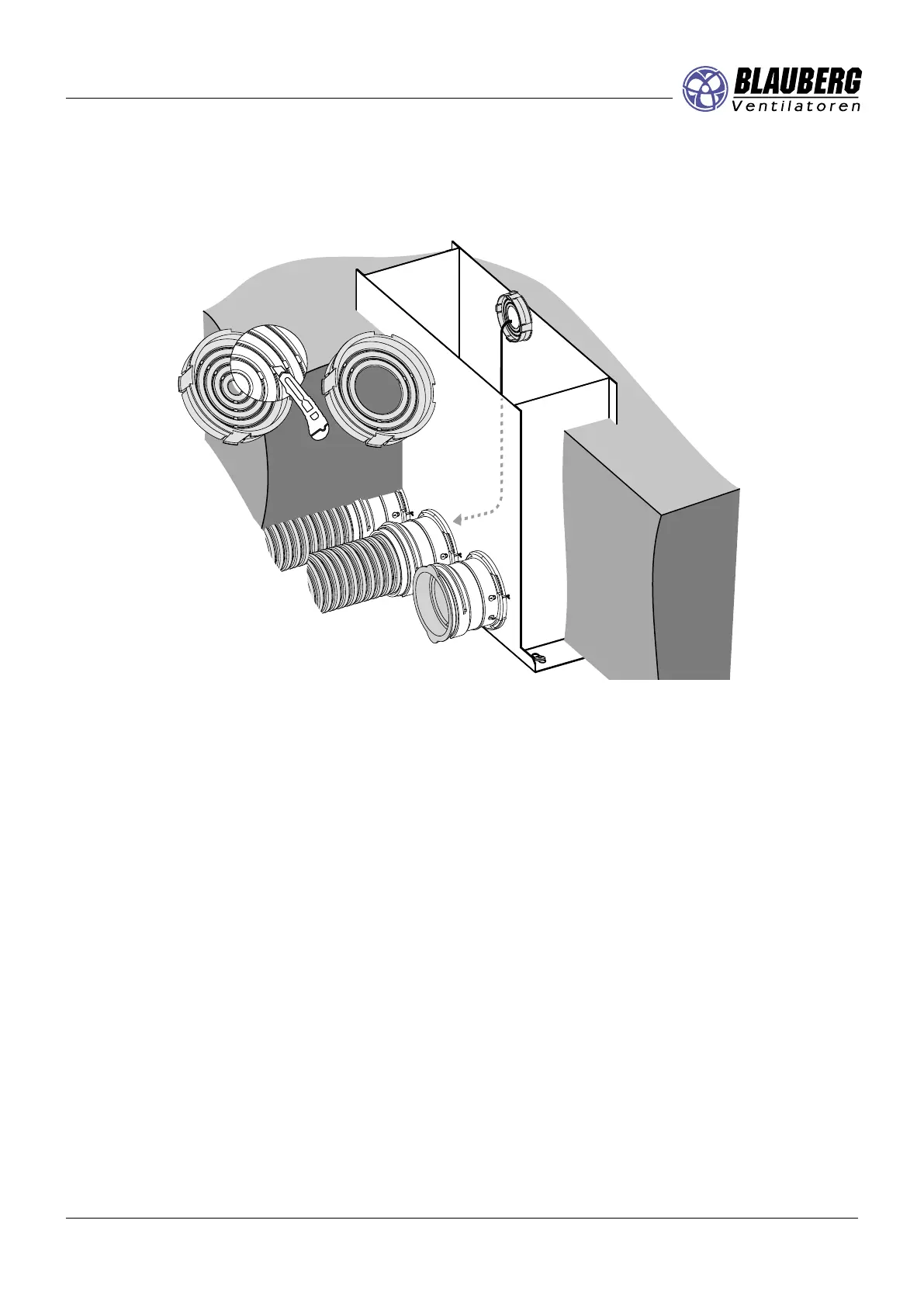

Air ow regulation by means of installing the air throttling damper into the connector
1. Cut the jumpers between the air throttling damper rings with a knife and remove the excess rings.
2. Remove the ventilation grille from the connector.
3. Install the air throttling damper into the flange on the inner side of the floor-mounted connector.
4. Install the ventilation grille back into the connector.
